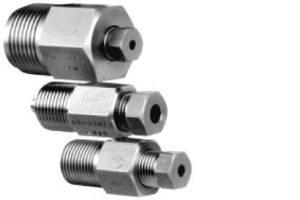

Female to Male

A complete range of adapters is offered for flexibility in going from tube to tube and from tube to pipe.
     All standard adapter bodies are made from high tensile 316 stainless steel. Standard tubing glands and collars (sleeves) are provided with adapters unless otherwise specified. Female Taper Seal to Male Taper Seal

Female Taper Seal to Male Taper Seal
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
15-21AF1AM2 15,000 1/16” O.D. TUBE TO 1/8” TAPER SEAL AF1 AM2 15/16” 5/8”
10-21AF1AM4 10,000 1/16” O.D. TUBE TO 1/4” TAPER SEAL AF1 AM4 1 1/4” 3/4”
10-21AF1AM6 10,000 1/16” O.D. TUBE TO 3/8” TAPER SEAL AF1 AM6 1 1/4” 3/4”
10-21AF2AM4 10,000 1/8” O.D. TUBE TO 1/4” TAPER SEAL AF2 AM4 1 1/4” 3/4”
10-21AF2AM6 10,000 1/8” O.D. TUBE TO 3/8” TAPER SEAL AF2 AM6 1 1/4” 3/4”



Female Taper Seal to Male High Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
15-21AF1HM2 15,000 1/16” T.S. TO 1/8” H.P. MALE AF1 HM2 7/8” 1/2”
15-21AF1HM4 15,000 1/16” T.S. TO 1/4” H.P. MALE AF1 HM4 1 1/4” 5/8”
15-21AF1HM6 15,000 1/16” T.S. TO 3/8” H.P. MALE AF1 HM6 1 3/4” 3/4”
15-21AF1HM9 15,000 1/16” T.S. TO 9/16” H.P. MALE AF1 HM9 2 1/8” 1 1/8”
15-21AF2HM2 15,000 1/8” T.S. TO 1/8” H.P. MALE AF2 HM2 1 1/8” 5/8”
15-21AF2HM4 15,000 1/8” T.S. TO 1/4” H.P. MALE AF2 HM4 1 1/4” 5/8”
15-21AF2HM6 15,000 1/8” T.S. TO 3/8” H.P. MALE AF2 HM6 1 3/4” 3/4”
15-21AF2HM9 15,000 1/8” T.S. TO 9/16” H.P. MALE AF2 HM9 2 1/8” 1 1/8”
10-21AF4HM2 10,000 1/4” T.S. TO 1/8” H.P. MALE AF4 HM2 1 7/16” 1”
10-21AF4HM4 10,000 1/4” T.S. TO 1/4” H.P. MALE AF4 HM4 11/2” 1”
10-21AF4HM6 10,000 1/4” T.S. TO 3/8” H.P. MALE AF4 HM6 15/8” 1”
10-21AF4HM9 10,000 1/4” T.S. TO 9/16” H.P. MALE AF4 HM9 2 1/8” 1 1/8”
10-21AF6HM2 10,000 3/8” T.S. TO 1/8” H.P. MALE AF6 HM2 1 1/2” 1”
10-21AF6HM4 10,000 3/8” T.S. TO 1/4” H.P. MALE AF6 HM4 1 1/2” 1”
10-21AF6HM6 10,000 3/8” T.S. TO 3/8” H.P. MALE AF6 HM6 1 3/4” 1”
10-21AF6HM9 10,000 3/8” T.S. TO 9/16” H.P. MALE AF6 HM9 2 1/8” 1 1/8”



Female Taper Seal to Male Pipe
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
15-21AF1NMA 15,000 1/16” T.S. TO 1/8”NPT MALE AF1 NMA 1” 1/2”
15-21AF1NMB 15,000 1/16” T.S. TO 1/4”NPT MALE AF1 NMB 1 1/4” 5/8”
15-21AF1NMC 15,000 1/16” T.S. TO 3/8”NPT MALE AF1 NMC 1 3/8” 3/4”
15-21AF1NMD 15,000 1/16” T.S. TO 1/2”NPT MALE AF1 NMD 1 3/4” 1”
15-21AF1NMF 15,000 1/16” T.S. TO 3/4”NPT MALE AF1 NMF 1 5/8” 13/8”
15-21AF1NMH 15,000 1/16” T.S. TO 1"NPT MALE AF1 NMH 1 5/8” 1 3/8”
15-21AF2NMA 15,000 1/8” T.S. TO 1/8”NPT MALE AF2 NMA 1 1/4” 3/4”
15-21AF2NMB 15,000 1/8” T.S. TO 1/4”NPT MALE AF2 NMB 1 1/4” 5/8”
15-21AF2NMC 15,000 1/8” T.S. TO 3/8”NPT MALE AF2 NMC 1 3/8” 3/4”
15-21AF2NMD 15,000 1/8” T.S. TO 1/2”NPT MALE AF2 NMD 1 3/4” 1”
15-21AF2NMF 15,000 1/8” T.S. TO 3/4”NPT MALE AF2 NMF 1 5/8” 1 3/8”
15-21AF2NMH 15,000 1/8” T.S. TO 1"NPT MALE AF2 NMH 1 5/8” 1 3/8”
10-21AF4NMA 10,000 1/4” T.S. TO 1/8”NPT MALE AF4 NMA 1 1/2” 1”
10-21AF4NMB 10,000 1/4” T.S. TO 1/4”NPT MALE AF4 NMB 1 5/8” 1”
10-21AF4NMC 10,000 1/4” T.S. TO 3/8”NPT MALE AF4 NMC 1 5/8” 1”
10-21AF4NMD 10,000 1/4” T.S. TO 1/2”NPT MALE AF4 NMD 1 3/4” 1”
10-21AF4NMF 10,000 1/4” T.S. TO 3/4”NPT MALE AF4 NMF 1 1/2” 1 3/8”
10-21AF4NMH 10,000 1/4” T.S. TO 1” NPT MALE AF4 NMH 1 7/8” 1 3/8”
10-21AF6NMA 10,000 3/8” T.S. TO 1/8”NPT MALE AF6 NMA 1 1/2” 1”
10-21AF6NMB 10,000 3/8” T.S. TO 1/4”NPT MALE AF6 NMB 1 5/8” 1”
10-21AF6NMC 10,000 3/8” T.S. TO 3/8”NPT MALE AF6 NMC 1 5/8” 1”
10-21AF6NMD 10,000 3/8” T.S. TO 1/2”NPT MALE AF6 NMD 1 3/4” 1”
10-21AF6NMF 10,000 3/8” T.S. TO 3/4”NPT MALE AF6 NMF 1 7/8” 1 3/8”
10-21AF6NMH 10,000 3/8” T.S. TO 1” NPT MALE AF6 NMH 1 7/8” 1 3/8”



Female High Pressure to Male High Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
60-21HF2HM4 60,000 1/8” O.D. TUBE to 1/4” H.P. HF2 HM4 1 1/4” 3/4”
60-21HF2HM6 60,000 1/8” O.D. TUBE to 3/8” H.P. HF2 HM6 1 3/4” 3/4”
60-21HF2HM9 60,000 1/8” O.D. TUBE to 9/16”H.P. HF2 HM9 2 1/8” 1 1/8”
60-21HF4HM2 60,000 1/4” O.D. TUBE to 1/8” H.P. HF4 HM2 1 3/8” 3/4”
60-21HF4HM6 60,000 1/4” O.D. TUBE to 3/8” H.P. HF4 HM6 1 3/4” 3/4”
60-21HF4HM9 60,000 1/4” O.D. TUBE to 9/16”H.P. HF4 HM9 2 1/8” 1 1/8”
60-21HF6HM2 60,000 1/4” O.D. TUBE to 1/8” H.P. HF6 HM2 1 1/2” 1”
60-21HF6HM4 60,000 3/8” O.D. TUBE to 1/4” H.P. HF6 HM4 1 1/2” 1”
60-21HF6HM9 60,000 3/8” O.D. TUBE to 9/16”H.P. HF6 HM9 2 1/8” 1 1/8”
60-21HF9HM4 60,000 9/16” O.D. TUBE to 1/4” H.P. HF9 HM4 1 3/4” 1 3/8”
60-21HF9HM6 60,000 9/16” O.D. TUBE to 3/8” H.P. HF9 HM6 1 7/8” 1 3/8”



Female Medium Pressure to Male Medium Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
20-21LF4LM6 20,000 1/4” M.P. FEMALE to 3/8” M.P. MALE LF4 LM6 1 3/4” 3/4”
20-21LF4LM9 20,000 1/4” M.P. FEMALE to 9/16” M.P. MALE LF4 LM9 1 7/8” 7/8”
20-21LF6LM4 20,000 3/8” M.P. FEMALE to 1/4” M.P. MALE LF6 LM4 1 3/4” 3/4”
20-21LF6LM9 20,000 3/8” M.P. FEMALE to 9/16” M.P. MALE LF6 LM9 1 7/8” 7/8”
20-21LF9LM4 20,000 9/16” M.P. FEMALE to 1/4” M.P. MALE LF9 LM4 2 1/8” 1"
20-21LF9LM6 20,000 9/16” M.P. FEMALE to 3/8” M.P. MALE LF9 LM6 2 1/8” 1"
20-21LF12LM4 20,000 3/4” M.P. FEMALE to 1/4” M.P. MALE LF12 LM4 2 1/4” 1 3/8”
20-21LF12LM6 20,000 3/4” M.P. FEMALE to 3/8” M.P. MALE LF12 LM6 2 3/8” 1 3/8”
20-21LF12LM9 20,000 3/4” M.P. FEMALE to 9/16” M.P. MALE LF12 LM9 2 7/8” 1 3/8”
20-21LF12LM16 20,000 3/4” M.P. FEMALE to 1” M.P. MALE LF12 LM16 3 3/4” 1 3/8”
20-21LF4LM12 20,000 1/4” M.P. FEMALE to 3/4” M.P. MALE LF4 LM12 2" 1 1/8”
20-21LF6LM12 20,000 3/8” M.P. FEMALE to 3/4” M.P. MALE LF6 LM12 2" 1 1/8”
20-21LF9LM12 20,000 9/16” M.P. FEMALE to 3/4” M.P. MALE LF9 LM12 2 1/2” 1 1/8”
20-21LF16LM4 20,000 1” M.P. FEMALE to 1/4” M.P. MALE LF16-30 LM4 2 3/4” 1 3/4”
20-21LF16LM6 20,000 1” M.P. FEMALE to 3/8” M.P. MALE LF16-30 LM6 2 7/8” 1 3/4”
20-21LF16LM9 20,000 1” M.P. FEMALE to 9/16” M.P. MALE LF16-30 LM9 3" 1 3/4”
20-21LF16LM12 20,000 1” M.P. FEMALE to 3/4” M.P. MALE LF16-30 LM12 3 1/4” 1 3/4”
20-21LF4LM16 20,000 1/4” M.P. FEMALE to 1” M.P. MALE LF4 LM16 3" 1"
20-21LF6LM16 20,000 3/8” M.P. FEMALE to 1” M.P. MALE LF6 LM16 3 1/8” 1"
20-21LF9LM16 20,000 9/16” M.P. FEMALE to 1” M.P. MALE LF9 LM16 3 3/8” 1"



Female Medium Pressure to Male High Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
20-21LF4HM4 20,000 1/4” M.P. FEMALE to 1/4” H.P. MALE LF4 HM4 1 3/8” 3/4”
20-21LF4HM6 20,000 1/4” M.P. FEMALE to 3/8” H.P. MALE LF4 HM6 1 3/4” 3/4”
20-21LF4HM9 20,000 1/4” M.P. FEMALE to 9/16” H.P. MALE LF4 HM9 2 1/8” 1 1/8”
20-21LF6HM4 20,000 3/8” M.P. FEMALE to 1/4” H.P. MALE LF6 HM4 1 3/4” 3/4”
20-21LF6HM6 20,000 3/8” M.P. FEMALE to 3/8” H.P. MALE LF6 HM6 1 3/4” 3/4”
20-21LF6HM9 20,000 3/8” M.P. FEMALE to 9/16” H.P. MALE LF6 HM9 2 1/8” 1 1/8”
20-21LF9HM4 20,000 9/16” M.P. FEMALE to 1/4” H.P. MALE LF9 HM4 1 7/8” 1"
20-21LF9HM6 20,000 9/16” M.P. FEMALE to 3/8” H.P. MALE LF9 HM6 2 1/8” 1"
20-21LF9HM9 20,000 9/16” M.P. FEMALE to 9/16” H.P. MALE LF9 HM9 2 1/8” 1 1/8”
20-21LF12HM4 20,000 3/4” M.P. FEMALE to 1/4” H.P. MALE LF12 HM4 2 1/2” 1 3/8”
20-21LF12HM6 20,000 3/4” M.P. FEMALE to 3/8” H.P. MALE LF12 HM6 2 3/8” 1 3/8”
20-21LF12HM9 20,000 3/4” M.P. FEMALE to 9/16” H.P. MALE LF12 HM9 2 5/8” 1 3/8”
*20-21LF16HM4 20,000 1” M.P. FEMALE to 1/4” H.P. MALE LF16 HM4 2 5/8” 1 3/4”
*20-21LF16HM6 20,000 1” M.P. FEMALE to 3/8” H.P. MALE LF16 HM6 2 7/8” 1 3/4”
*20-21LF16HM9 20,000 1” M.P. FEMALE to 9/16” H.P. MALE LF16 HM9 3 1/8” 1 3/4”



Female Medium Pressure to Male Pipe
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
20-21LF4NMA 15,000 1/4” M.P. FEMALE to 1/8” NPT MALE LF4 NMA 1 7/16” 3/4”
20-21LF4NMB 15,000 1/4” M.P. FEMALE to 1/4” NPT MALE LF4 NMB 1 5/8” 3/4”
20-21LF4NMC 15,000 1/4” M.P. FEMALE to 3/8” NPT MALE LF4 NMC 1 5/8” 3/4”
20-21LF4NMD 15,000 1/4” M.P. FEMALE to 1/2” NPT MALE LF4 NMD 1 3/4” 1"
10-21LF4NMF 10,000 1/4” M.P. FEMALE to 3/4” NPT MALE LF4 NMF 1 7/8” 13/8”
10-21LF4NMH 10,000 1/4” M.P. FEMALE to 1” NPT MALE LF4 NMH 1 7/8” 1 3/8”
20-21LF6NMA 15,000 3/8” M.P. FEMALE to 1/8” NPT MALE LF6 NMA 17/16” 3/4”
20-21LF6NMB 15,000 3/8” M.P. FEMALE to 1/4” NPT MALE LF6 NMB 1 5/8” 3/4”
20-21LF6NMC 15,000 3/8” M.P. FEMALE to 3/8” NPT MALE LF6 NMC 1 5/8” 3/4”
20-21LF6NMD 15,000 3/8” M.P. FEMALE to 1/2” NPT MALE LF6 NMD 1 3/4” 1"
10-21LF6NMF 10,000 3/8” M.P. FEMALE to 3/4” NPT MALE LF6 NMF 1 7/8” 1 3/8”
10-21LF6NMH 10,000 3/8” M.P. FEMALE to 1” NPT MALE LF6 NMH 1 7/8” 1 3/8”
20-21LF9NMA 15,000 9/16” M.P. FEMALE to 1/8” NPT MALE LF9 NMA 1 7/8” 1"
20-21LF9NMB 15,000 9/16” M.P. FEMALE to 1/4” NPT MALE LF9 NMB 1 7/8” 1"
20-21LF9NMC 15,000 9/16” M.P. FEMALE to 3/8” NPT MALE LF9 NMC 1 7/8” 1"
20-21LF9NMD 15,000 9/16” M.P. FEMALE to 1/2” NPT MALE LF9 NMD 1 7/8” 1"
10-21LF9NMF 10,000 9/16” M.P. FEMALE to 3/4” NPT MALE LF9 NMF 1 7/8” 1 3/8”
10-21LF9NMH 10,000 9/16” M.P. FEMALE to 1” NPT MALE LF9 NMH 1 7/8” 1 3/8”
20-21LF12NMA 15,000 3/4” M.P. FEMALE to 1/8” NPT MALE LF12 NMA 2 1/2” 1 3/8”
20-21LF12NMB 15,000 3/4” M.P. FEMALE to 1/4” NPT MALE LF12 NMB 2 1/2” 1 3/8”
20-21LF12NMC 15,000 3/4” M.P. FEMALE to 3/8” NPT MALE LF12 NMC 2 1/2” 1 3/8”
20-21LF12NMD 15,000 3/4” M.P. FEMALE to 1/2” NPT MALE LF12 NMD 2 1/2” 1 3/8”
10-21LF12NMF 10,000 3/4” M.P. FEMALE to 3/4” NPT MALE LF12 NMF 2 1/2” 1 3/8”
10-21LF12NMH 10,000 3/4” M.P. FEMALE to 1” NPT MALE LF12 NMH 2 1/2” 1 3/8”
20-21LF16NMA 15,000 1” M.P. FEMALE to 1/8” NPT MALE LF16-30 NMA 2 1/2” 1 3/4”
20-21LF16NMB 15,000 1” M.P. FEMALE to 1/4” NPT MALE LF16-30 NMB 2 1/2” 1 3/4”
20-21LF16NMC 15,000 1” M.P. FEMALE to 3/8” NPT MALE LF16-30 NMC 2 1/2” 1 3/4”
20-21LF16NMD 15,000 1” M.P. FEMALE to 1/2” NPT MALE LF16-30 NMD 2 1/2” 1 3/4”
10-21LF16NMF 10,000 1” M.P. FEMALE to 3/4” NPT MALE LF16-30 NMF 2 1/2” 1 3/4”
10-21LF16NMH 10,000 1” M.P. FEMALE to 1” NPT MALE LF16-30 NMH 2 1/2” 1 3/4”



Female Pipe to Male High Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
30-21NFAHM2 15,000 1/8” NPT TO 1/8” H.P. MALE NFA HM2 1 5/8" 3/4"
30-21NFBHM2 15,000 1/4” NPT TO 1/8” H.P. MALE NFB HM2 1 5/8" 3/4"
30-21NFCHM2 15,000 3/8” NPT TO 1/8” H.P. MALE NFC HM2 1 3/4" 1"
30-21NFAHM4 15,000 1/8” NPT TO 1/4” H.P. MALE NFA HM4 1 5/8" 3/4"
30-21NFBHM4 15,000 1/4” NPT TO 1/4” H.P. MALE NFB HM4 1 3/4" 3/4"
30-21NFCHM4 15,000 3/8” NPT TO 1/4” H.P. MALE NFC HM4 1 3/4" 1"
30-21NFDHM4 15,000 1/2” NPT TO 1/4” H.P. MALE NFD HM4 2 1/8" 1 1/8"
30-21NFAHM6 15,000 1/8” NPT TO 3/8” H.P. MALE NFA HM6 1 5/8" 3/4"
30-21NFBHM6 15,000 1/4” NPT TO 3/8” H.P. MALE NFB HM6 1 3/4" 3/4"
30-21NFCHM6 15,000 3/8” NPT TO 3/8” H.P. MALE NFC HM6 1 3/4" 1"
30-21NFDHM6 15,000 1/2” NPT TO 3/8” H.P. MALE NFD HM6 2 1/8" 1 1/8"
10-21NFFHM6 10,000 3/4” NPT TO 3/8” H.P. MALE NFF HM6 2 1/2" 1 5/8"
30-21NFAHM9 15,000 1/8” NPT TO 9/16” H.P. MALE NFA HM9 2 1/8" 1 1/8"
30-21NFBHM9 15,000 1/4” NPT TO 9/16” H.P. MALE NFB HM9 2 1/8" 1 1/8"
30-21NFCHM9 15,000 3/8” NPT TO 9/16” H.P. MALE NFC HM9 2 1/8" 1 1/8"
30-21NFDHM9 15,000 1/2” NPT TO 9/16” H.P. MALE NFD HM9 2 1/8" 1 1/8"
10-21NFFHM9 10,000 3/4” NPT TO 9/16” H.P. MALE NFF HM9 2 1/4" 1 3/8"
10-21NFHHM9 10,000 1” NPT TO 9/16” H.P. MALE NFH HM9 2" 1 7/8"



Female High Pressure to Male Medium Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
20-21HF4LM4 20,000 1/4” H.P. FEMALE TO 1/4” M.P. MALE HF4 LM4 1 3/4" 3/4"
20-21HF4LM6 20,000 1/4” H.P. FEMALE TO 3/8” M.P. MALE HF4 LM6 1 3/4" 3/4"
20-21HF4LM9 20,000 1/4” H.P. FEMALE TO 9/16” M.P. MALE HF4 LM9 1 7/8" 7/8"
20-21HF6LM4 20,000 3/8” H.P. FEMALE TO 1/4” M.P. MALE HF6 LM4 1 7/8" 1"
20-21HF6LM6 20,000 3/8” H.P. FEMALE TO 3/8” M.P. MALE HF6 LM6 1 7/8" 1"
20-21HF6LM9 20,000 3/8” H.P. FEMALE TO 9/16” M.P. MALE HF6 LM9 2" 1"
20-21HF9LM4 20,000 9/16” H.P. FEMALE TO 1/4” M.P. MALE HF9 LM4 2 1/8" 1 3/8"
20-21HF9LM6 20,000 9/16” H.P. FEMALE TO 3/8” M.P. MALE HF9 LM6 2 1/8" 1 3/8"
20-21HF9LM9 20,000 9/16” H.P. FEMALE TO 9/16” M.P. MALE HF9 LM9 2 3/8" 1 3/8"
20-21HF4LM12 20,000 1/4” H.P. FEMALE TO 3/4” M.P. MALE HF4 LM12 2 1/4" 1 1/8"
20-21HF6LM12 20,000 3/8” H.P. FEMALE TO 3/4” M.P. MALE HF6 LM12 2 1/4" 1 1/8"
20-21HF9LM12 20,000 9/16” H.P. FEMALE TO 3/4” M.P. MALE HF9 LM12 2 1/2" 1 3/8"
20-21HF4LM16 20,000 1/4” H.P. FEMALE TO 1” M.P. MALE HF4 LM16 3" 1"
20-21HF6LM16 20,000 3/8” H.P. FEMALE TO 1” M.P. MALE HF6 LM16 3 1/4" 1"
20-21HF9LM16 20,000 9/16” H.P. FEMALE TO 1” M.P. MALE HF9 LM16 3 5/8" 1 3/8"
20-21HF4LM16 20,000 1/4” H.P. FEMALE TO 1” M.P. MALE HF4 LM16-30 3" 1"
20-21HF6LM16 20,000 3/8” H.P. FEMALE TO 1” M.P. MALE HF6 LM16-30 3 1/4" 1"
20-21HF9LM16 20,000 9/16” H.P. FEMALE TO 1” M.P. MALE HF9 LM16-30 3 5/8" 1 3/8"



Female High Pressure to Male Pipe
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
30-21HF2NMA 15,000 1/8” H.P. TO 1/8” NPT MALE HF2 NMA 1 1/4” 5/8”
30-21HF2NMB 15,000 1/8” H.P. TO 1/4” NPT MALE HF2 NMB 1 1/4” 5/8”
30-21HF2NMC 15,000 1/8” H.P. TO 3/8” NPT MALE HF2 NMC 1 3/8” 3/4”
30-21HF2NMD 15,000 1/8” H.P. TO 1/2” NPT MALE HF2 NMD 1 1/2” 1”
10-21HF2NMF 10,000 1/8” H.P. TO 3/4” NPT MALE HF2 NMF 1 3/4” 13/8”
10-21HF2NMH 10,000 1/8” H.P. TO 1” NPT MALE HF2 NMH 1 3/4” 1 3/8”
30-21HF4NMA 15,000 1/4” H.P. TO 1/8” NPT MALE HF4 NMA 1 1/4” 3/4”
30-21HF4NMB 15,000 1/4” H.P. TO 1/4” NPT MALE HF4 NMB 1 3/8” 3/4”
30-21HF4NMC 15,000 1/4” H.P. TO 3/8” NPT MALE HF4 NMC 1 3/8” 3/4”
30-21HF4NMD 15,000 1/4” H.P. TO 1/2” NPT MALE HF4 NMD 1 3/4” 1”
10-21HF4NMF 10,000 1/4” H.P. TO 3/4” NPT MALE HF4 NMF 1 3/4” 1 3/8”
10-21HF4NMH 10,000 1/4” H.P. TO 1” NPT MALE HF4 NMH 1 5/8” 1 3/8”
30-21HF6NMA 15,000 3/8” H.P. TO 1/8” NPT MALE HF6 NMA 1 1/2” 1”
30-21HF6NMB 15,000 3/8” H.P. TO 1/4” NPT MALE HF6 NMB 1 5/8” 1”
30-21HF6NMC 15,000 3/8” H.P. TO 3/8” NPT MALE HF6 NMC 1 5/8” 1”
30-21HF6NMD 15,000 3/8” H.P. TO 1/2” NPT MALE HF6 NMD 1 3/4” 1”
10-21HF6NMF 10,000 3/8” H.P. TO 3/4” NPT MALE HF6 NMF 1 7/8” 1 3/8”
10-21HF6NMH 10,000 3/8” H.P. TO 1” NPT MALE HF6 NMH 1 7/8” 1 3/8”
30-21HF9NMA 15,000 9/16” H.P. TO 1/8” NPT MALE HF9 NMA 1 1/2” 1 3/8”
30-21HF9NMB 15,000 9/16” H.P. TO 1/4” NPT MALE HF9 NMB 1 5/8” 1 3/8”
30-21HF9NMC 15,000 9/16” H.P. TO 3/8” NPT MALE HF9 NMC 1 3/4” 1 3/8”
30-21HF9NMD 15,000 9/16” H.P. TO 1/2” NPT MALE HF9 NMD 1 7/8” 1 3/8”
10-21HF9NMF 10,000 9/16” H.P. TO 3/4” NPT MALE HF9 NMF 1 7/8” 1 3/8”
10-21HF9NMH 10,000 9/16” H.P. TO 1” NPT MALE HF9 NMH 2” 1 3/8”



Female Pipe to Male Taper Seal
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
15-21NFAAM2 15,000 1/8” FNPT TO 1/8” MALE T.S. NFA AM2 1 1/2” 5/8”
15-21NFBAM2 15,000 1/4” FNPT TO 1/8” MALE T.S. NFB AM2 1 5/8” 3/4”
15-21NFCAM2 15,000 3/8” FNPT TO 1/8” MALE T.S. NFC AM2 1 3/4” 1"
10-21NFAAM4 10,000 1/8” FNPT TO 1/4” MALE T.S. NFA AM4 1 3/4” 7/8”
10-21NFBAM4 10,000 1/4” FNPT TO 1/4” MALE T.S. NFB AM4 1 3/4” 1"
10-21NFCAM4 10,000 3/8” FNPT TO 1/4” MALE T.S. NFC AM4 1 3/4” 1"
10-21NFDAM4 10,000 1/2” FNPT TO 1/4” MALE T.S. NFD AM4 2 1/8” 1 1/8”
10-21NFAAM6 10,000 1/8” FNPT TO 3/8” MALE T.S. NFA AM6 2" 1"
10-21NFBAM6 10,000 1/4” FNPT TO 3/8” MALE T.S. NFB AM6 2" 1"
10-21NFCAM6 10,000 3/8” FNPT TO 3/8” MALE T.S. NFC AM6 2" 1"
10-21NFDAM6 10,000 1/2” FNPT TO 3/8” MALE T.S. NFD AM6 2 1/8” 1 1/8”



Female Pipe to Male Medium Pressure
Catalog No. Pressure
Rating
psi		 Connections A B Length Hex
Size
20-21NFALM4 15,000 1/8” N.P.T. FEMALE TO 1/4” M.P. MALE NFA LM4 1 3/4” 3/4”
20-21NFBLM4 15,000 1/4” N.P.T. FEMALE TO 1/4” M.P. MALE NFB LM4 1 3/4” 3/4”
20-21NFCLM4 15,000 3/8” N.P.T. FEMALE TO 1/4” M.P. MALE NFC LM4 2" 1"
20-21NFDLM4 15,000 1/2” N.P.T. FEMALE TO 1/4” M.P. MALE NFD LM4 2 1/8” 1 1/8”
10-21NFFLM4 10,000 3/4” N.P.T. FEMALE TO 1/4” M.P. MALE NFF LM4 2 3/8” 1 3/8”
20-21NFALM6 15,000 1/8” N.P.T. FEMALE TO 3/8” M.P. MALE NFA LM6 1 7/8” 3/4”
20-21NFBLM6 15,000 1/4” N.P.T. FEMALE TO 3/8” M.P. MALE NFB LM6 1 7/8” 3/4”
20-21NFCLM6 15,000 3/8” N.P.T. FEMALE TO 3/8” M.P. MALE NFC LM6 2 1/8” 1"
20-21NFDLM6 15,000 1/2” N.P.T. FEMALE TO 3/8” M.P. MALE NFD LM6 2 1/4” 1 1/8”
10-21NFFLM6 10,000 3/4” N.P.T. FEMALE TO 3/8” M.P. MALE NFF LM6 2 1/2” 1 3/8”
10-21NFHLM6 10,000 1” N.P.T. FEMALE TO 3/8” M.P. MALE NFH LM6 2 7/8” 1 7/8”
20-21NFALM9 15,000 1/8” N.P.T. FEMALE TO 9/16” M.P. MALE NFA LM9 1 7/8” 7/8”
20-21NFBLM9 15,000 1/4” N.P.T. FEMALE TO 9/16” M.P. MALE NFB LM9 1 7/8” 7/8”
20-21NFCLM9 15,000 3/8” N.P.T. FEMALE TO 9/16” M.P. MALE NFC LM9 21/4” 1"
20-21NFDLM9 15,000 1/2” N.P.T. FEMALE TO 9/16” M.P. MALE NFD LM9 2 3/8” 1 1/8”
10-21NFFLM9 10,000 3/4” N.P.T. FEMALE TO 9/16” M.P. MALE NFF LM9 2 5/8” 1 3/8”
10-21NFHLM9 10,000 1” N.P.T. FEMALE TO 9/16” M.P. MALE NFH LM9 3" 1 7/8”
20-21NFALM12 15,000 1/8” N.P.T. FEMALE TO 3/4” M.P. MALE NFA LM12 2" 1 1/8”
20-21NFBLM12 15,000 1/4” N.P.T. FEMALE TO 3/4” M.P. MALE NFB LM12 2" 1 1/8”
20-21NFCLM12 15,000 3/8” N.P.T. FEMALE TO 3/4” M.P. MALE NFC LM12 2" 1 1/8”
20-21NFDLM12 15,000 1/2” N.P.T. FEMALE TO 3/4” M.P. MALE NFD LM12 2 1/2” 1 1/8”
10-21NFFLM12 10,000 3/4” N.P.T. FEMALE TO 3/4” M.P. MALE NFF LM12 2 3/4” 1 1/2”
10-21NFHLM12 10,000 1” N.P.T. FEMALE TO 3/4” M.P. MALE NFH LM12 3" 1 7/8”
20-21NFALM16 15,000 1/8” N.P.T. FEMALE TO 1” M.P. MALE NFA LM16 3" 1"
20-21NFBLM16 15,000 1/4” N.P.T. FEMALE TO 1” M.P. MALE NFB LM16 3" 1"
20-21NFCLM16 15,000 3/8” N.P.T. FEMALE TO 1” M.P. MALE NFC LM16 3" 1"
20-21NFDLM16 15,000 1/2” N.P.T. FEMALE TO 1” M.P. MALE NFD LM16 3 3/4” 1 1/8”
10-21NFFLM16 10,000 3/4” N.P.T. FEMALE TO 1” M.P. MALE NFF LM16 4 1/8” 1 1/2”
10-21NFHLM16 10,000 1” N.P.T. FEMALE TO 1” M.P. MALE NFH LM16 4 3/8” 1 7/8”




Valves, Fittings & Tubing

Taper Seal Valves

NPT Valves

Medium Pressure Valves

High Pressure Valves

Ultra High Pressure Valves

Specialty Valves

Air Operated Valves

Accessories

Tooling

Reactors & Pressure Vessels

Pressure Vessel Selection

O-Ring Seal Reactors

Confined Gasket Closure Reactors

Bolted Closure Reactors

Clover Leaf Reactors

O-Ring Closure Reactors

Micro Reactors

Tubulars Reactors

Pumping Systems

Air Operated Hydraulic Pumping System

System Capabilities

Standard Pumping System Specifications

150,000 psi Pumping System

Intensifiers & Gas Boosters

Intensifiers

Gas Boosters

HIgh Pressure Generators

Oil & Gas Products

Sour Oil & Gas Valves

Sour Oil & Gas Fittings

Accessories

Tubing & Nipples

Wellhead Gauge & Bleed Valves
