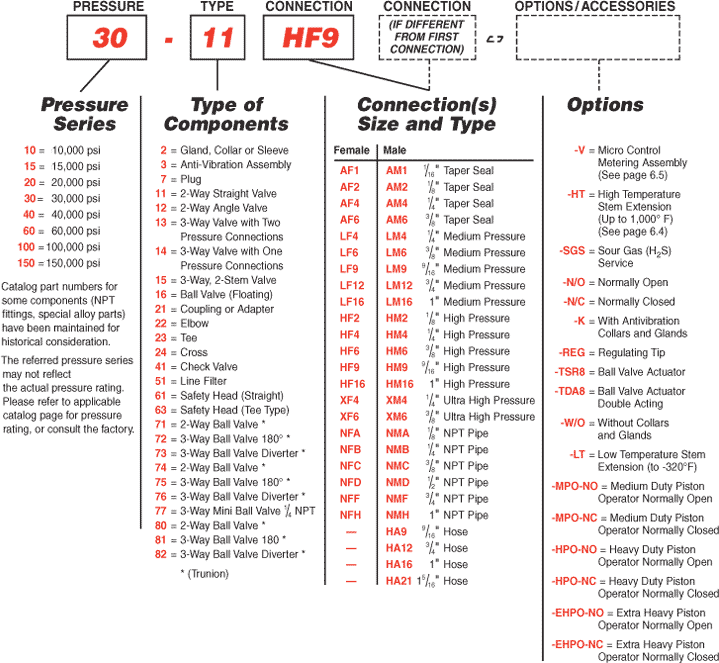

Simply indicate catalog number and specify option or special requirement.
Examples:
30-11HF4 = 30,000 psi Straight Valve for 1/4" O.D. tubing
60-23HF4 = 60,000 psi Tee for 1/4" O.D. tubing
15-21AF2 = 15,000 psi Straight Coupling for 1/8" O.D. tubing, Taper Seal connections
15-21AF2NMB = 15,000 psi Adapter with one end 1/8" O.D. Female Taper Seal and opposite end Male 1/4" NPT Pipe
30-11HF6-HT = 30,000 psi Straight Valve for 3/8" O.D. tubing with High Temperature Extension
“HIPCO” 10-12NFB (N/C) = 10,000 psi Angle Valve for 1/4" NPT Pipe with “Hipco” Air Operator, Normally Closed
“HIPPO” 15-11A4F (N/C) = 10,000 psi Angle Valve for 1/4" Taper Seal with “Hippo” Piston Operator, Normally Closed
60-21HF4 (Hastelloy C-276) = 60,000 psi Straight Coupling for 1/4" O.D. tubing, made from Hastelloy C-276 material |
|
