Pressure Ratings
Equipment in Various Common Materials
|
Material |
Connection |
316 CNDS |
316 CNDA |
NIT50 CNDA |
22% Chrome Duplex |
25% Chrome Duplex |
HC276 |
IN600 |
|---|---|---|---|---|---|---|---|---|
|
Pressure Rating at Room Temperature (psi) |
AF1 |
15000 |
10000 |
15000 |
15000 |
15000 |
15000 |
10000 |
|
AF2 |
15000 |
10000 |
15000 |
15000 |
15000 |
15000 |
10000 |
|
|
AF4 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
AF6 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
LF12 |
10000 |
7500 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
LF16 |
10000 |
7500 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
LF4 |
20000 |
10000 |
14500 |
17000 |
20000 |
12500 |
9000 |
|
|
LF6 |
20000 |
10000 |
14500 |
17000 |
20000 |
12500 |
9000 |
|
|
LF9 |
20000 |
9000 |
17000 |
20000 |
20000 |
12500 |
10500 |
|
|
LF12 |
20000 |
9000 |
17000 |
20000 |
20000 |
12500 |
10500 |
|
|
LF16 |
20000 |
9000 |
17000 |
20000 |
20000 |
12500 |
10500 |
|
|
LF24* |
20000 |
8000 |
15000 |
15000 |
15000 |
12500 |
10500 |
|
|
HF2 |
30000 |
20000 |
30000 |
30000 |
30000 |
29500 |
25000 |
|
|
HF4 |
30000 |
20000 |
30000 |
30000 |
30000 |
29500 |
25000 |
|
|
HF6 |
30000 |
20000 |
30000 |
30000 |
30000 |
29500 |
25000 |
|
|
HF9 |
30000 |
20000 |
30000 |
30000 |
30000 |
29500 |
25000 |
|
|
HF16 |
30000 |
14000 |
25500 |
30000 |
30000 |
19000 |
16000 |
|
|
HF9 |
40000 |
20000 |
33000 |
34500 |
40000 |
24500 |
21000 |
|
|
HF2 |
60000 |
30000 |
50000 |
52000 |
60000 |
37000 |
31500 |
|
|
HF4 |
60000 |
30000 |
50000 |
52000 |
60000 |
37000 |
31500 |
|
|
HF6 |
60000 |
30000 |
50000 |
52000 |
60000 |
37000 |
31500 |
|
|
HF9 |
60000 |
30000 |
50000 |
52000 |
60000 |
37000 |
31500 |
|
|
NFA |
15000 |
8000 |
14500 |
15000 |
15000 |
10500 |
9000 |
|
|
NFB |
15000 |
8000 |
14500 |
15000 |
15000 |
10500 |
9000 |
|
|
NFC |
15000 |
8000 |
14500 |
15000 |
15000 |
10500 |
9000 |
|
|
NFD |
15000 |
8000 |
14500 |
15000 |
15000 |
10500 |
9000 |
|
|
NFF |
10000 |
6500 |
10000 |
10000 |
10000 |
9000 |
7500 |
|
|
NFH |
10000 |
6500 |
10000 |
10000 |
10000 |
9000 |
7500 |
|
Material |
Connection |
IN625 Grade 1 |
IN718 |
IN825 |
MO400 |
TI2 |
TI5 |
254 Smo |
|---|---|---|---|---|---|---|---|---|
|
Pressure Rating at Room Temperature (psi) |
AF1 |
15000 |
15000 |
15000 |
10000 |
15000 |
15000 |
15000 |
|
AF2 |
15000 |
15000 |
15000 |
10000 |
15000 |
15000 |
15000 |
|
|
AF4 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
AF6 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
|
|
LF12 |
10000 |
10000 |
10000 |
8000 |
10000 |
10000 |
10000 |
|
|
LF16 |
10000 |
10000 |
10000 |
8000 |
10000 |
10000 |
10000 |
|
|
LF4 |
15500 |
20000 |
9000 |
6500 |
10500 |
20000 |
11500 |
|
|
LF6 |
15500 |
20000 |
9000 |
6500 |
10500 |
20000 |
11500 |
|
|
LF9 |
18500 |
20000 |
10500 |
7500 |
12000 |
20000 |
13500 |
|
|
LF12 |
18500 |
20000 |
10500 |
7500 |
12000 |
20000 |
13500 |
|
|
LF16 |
18500 |
20000 |
10500 |
7500 |
12000 |
20000 |
13500 |
|
|
LF24* |
15000 |
15000 |
10500 |
7500 |
12500 |
15000 |
13500 |
|
|
HF2 |
30000 |
30000 |
25000 |
17500 |
28500 |
30000 |
30000 |
|
|
HF4 |
30000 |
30000 |
25000 |
17500 |
28500 |
30000 |
30000 |
|
|
HF6 |
30000 |
30000 |
25000 |
17500 |
28500 |
30000 |
30000 |
|
|
HF9 |
30000 |
30000 |
30000 |
17500 |
28500 |
30000 |
30000 |
|
|
HF16 |
28000 |
30000 |
16000 |
11500 |
18500 |
30000 |
20500 |
|
|
HF9 |
34500 |
40000 |
21000 |
15000 |
24000 |
40000 |
26500 |
|
|
HF2 |
52000 |
60000 |
31500 |
22500 |
36500 |
60000 |
40000 |
|
|
HF4 |
52000 |
60000 |
31500 |
22500 |
36500 |
60000 |
40000 |
|
|
HF6 |
52000 |
60000 |
31500 |
22500 |
36500 |
60000 |
40000 |
|
|
HF9 |
52000 |
60000 |
31500 |
22500 |
36500 |
60000 |
40000 |
|
|
NFA |
15000 |
15000 |
9000 |
6500 |
10500 |
15000 |
11500 |
|
|
NFB |
15000 |
15000 |
9000 |
6500 |
10500 |
15000 |
11500 |
|
|
NFC |
15000 |
15000 |
9000 |
6500 |
10500 |
15000 |
11500 |
|
|
NFD |
15000 |
15000 |
9000 |
6500 |
10500 |
15000 |
11500 |
|
|
NFF |
10000 |
10000 |
7500 |
5000 |
8500 |
10000 |
9500 |
|
|
NFH |
10000 |
10000 |
7500 |
5000 |
8500 |
10000 |
9500 |
*Note: Fittings with LF24 connections are available in 316 CW material. Standard material for valves with LF24 connections is 2205 Duplex Stainless
Tubing in Various Materials*
|
Part Number |
Tubing Size OD x ID (inches) |
Material vs Pressure Rating (psi) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
316 CNDS |
316 CNDA |
22% Chrome Duplex |
25% Chrome Duplex |
Hastelloy C276 |
Inconel 600 |
Inconel 625 Gr 1 |
Monel 400 |
Titanium Gr 2 | ||||
|
Low Pressure |
15-9A2 |
1/8 x 0.060 |
15000 |
10000 |
15000 |
15000 |
15000 |
15000 |
15000 |
10000 |
15000 |
|
|
10-9A4 |
1/4 x 0.125 |
10000 |
7500 |
10000 |
10000 |
10000 |
9000 |
10000 |
6500 |
9000 |
||
|
10-9A6 |
3/8 x 0.250 |
10000 |
7500 |
10000 |
10000 |
10000 |
9000 |
10000 |
6500 |
9000 |
||
|
Medium Pressure |
20-9M4 |
1/4 x 0.109 |
20000 |
10000 |
17500 |
20000 |
15000 |
11500 |
17500 |
8000 |
13000 |
|
|
20-9M6 |
3/8 x 0.203 |
20000 |
10000 |
17500 |
20000 |
15000 |
11500 |
17500 |
8000 |
13000 |
||
|
15-9M9 |
9/16 x 0.359 |
15000 |
7000 |
13000 |
15000 |
10000 |
8000 |
15000 |
6000 |
9500 |
||
|
20-9M9 |
9/16 x 0.312 |
20000 |
10000 |
17500 |
20000 |
15000 |
11500 |
17500 |
8000 |
13000 |
||
|
15-9M12 |
3/4 x 0.516 |
15000 |
7000 |
13000 |
15000 |
10000 |
8000 |
14000 |
6000 |
9500 |
||
|
20-9M12 |
3/4 x 0.438 |
20000 |
10000 |
17500 |
20000 |
15000 |
11500 |
17500 |
8000 |
13000 |
||
|
15-9M16 |
1 x 0.688 |
15000 |
7000 |
13000 |
15000 |
10000 |
8000 |
14500 |
6000 |
9500 |
||
|
20-9M16 |
1 x 0.562 |
20000 |
10000 |
17500 |
20000 |
15000 |
11500 |
17500 |
8000 |
13000 |
||
|
High Pressure |
60-9H2 |
1/8 x 0.020 |
60000 |
30000 |
40000 |
60000 |
30000 |
23000 |
40000 |
17500 |
28000 |
|
|
30-9H2 |
1/8 x 0.040 |
30000 |
20000 |
30000 |
30000 |
25000 |
17500 |
30000 |
13000 |
21000 |
||
|
60-9H4 |
1/4 x 0.083 |
60000 |
30000 |
40000 |
57000 |
30000 |
23000 |
40000 |
17500 |
28000 |
||
|
60-9H6 |
3/8 x 0.125 |
60000 |
30000 |
40000 |
57000 |
30000 |
23000 |
40000 |
17500 |
28000 |
||
|
60-9H9 |
9/16 x 0.188 |
60000 |
30000 |
40000 |
57000 |
30000 |
23000 |
40000 |
17500 |
28000 |
||
|
40-9H9 |
9/16 x 0.250 |
40000 |
20000 |
34000 |
40000 |
23000 |
17500 |
30000 |
13000 |
21000 |
||
|
30-9H16 |
1 x 0.437 |
43000 |
20000 |
35000 |
43000 |
23000 |
17500 |
30000 |
13000 |
21000 |
||
* Not all tubing sizes available in all materials.

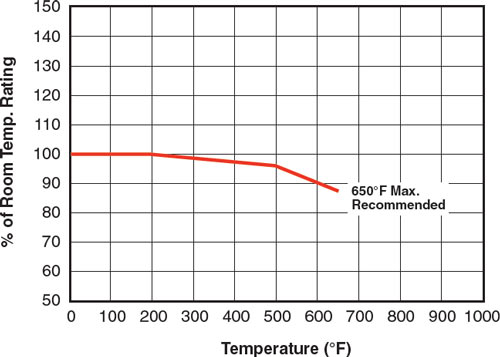

Temperature Rating
Taper Seal Series Valves and Fittings

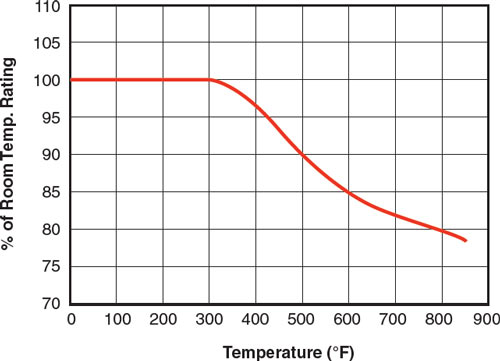

Pressure Rating Reduction
316 and 304 SS Components at Elevated Temperatures
