Reactor Selection Guide

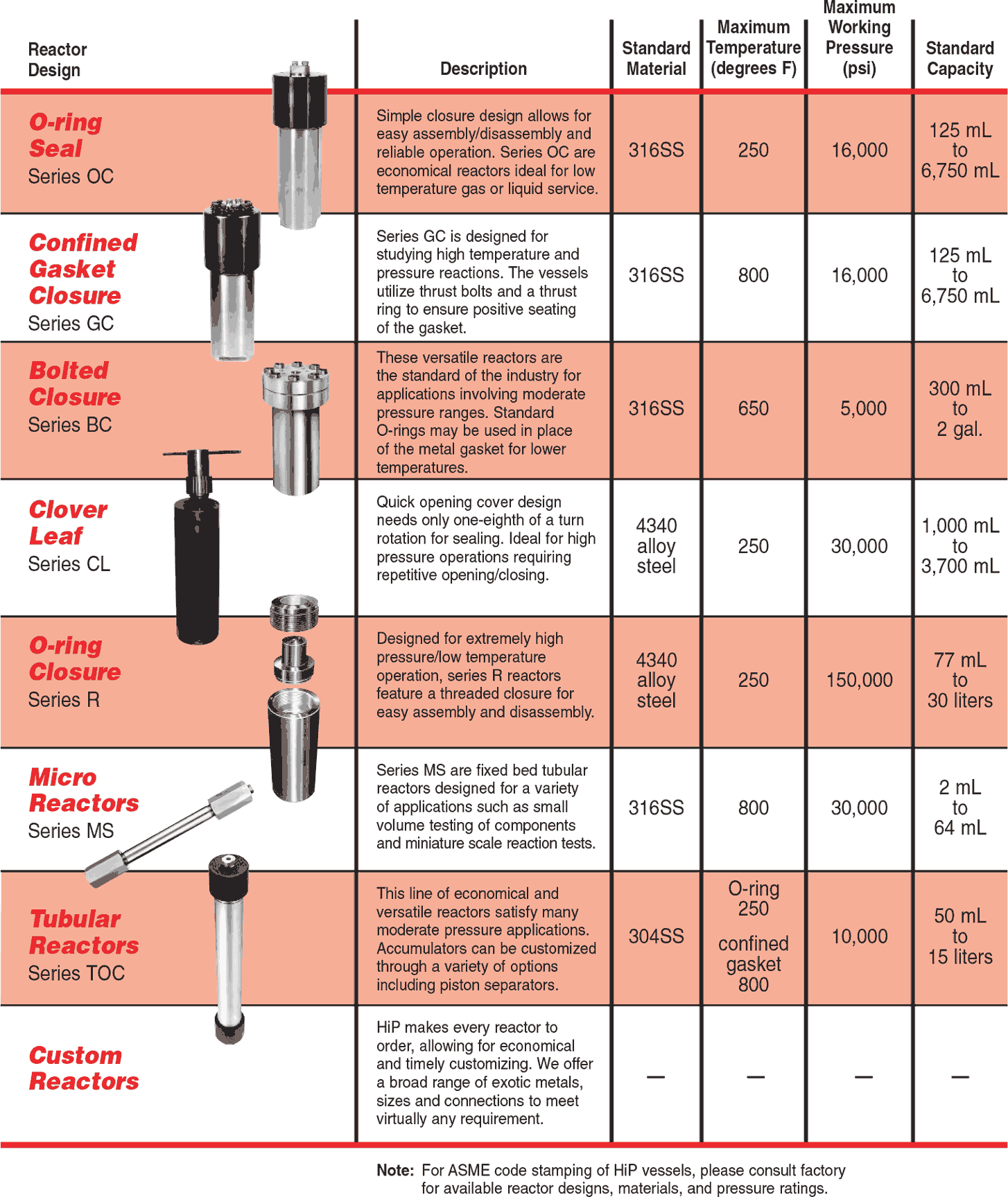

Reactor Design   Description Standard Material Maximum Temperature (degrees F) Maximum Working Pressure (psi) Standard Capacity
O-ring Seal
Series OC
Simple closure design allows for easy assembly/disassembly and reliable operation. Series OC are economical reactors ideal for low temperature gas or liquid service. 316SS 250 16,000 125 mL to 6,750 mL
Confined Gasket Closure
Series GC
Series GC is designed for studying high temperature and pressure reactions. The vessels utilize thrust bolts and a thrust ring to ensure positive seating of the gasket. 316SS 800 16,000 125 mL to 6,750 mL
Bolted Closure
Series BC
These versatile reactors are the standard of the industry for applications involving moderate pressure ranges. Standard O-rings may be used in place of the metal gasket for lower temperatures. 316SS 650 5,000 300 mL to 2 gal.
Clover Leaf
Series CL
Quick opening cover design needs only one-eighth of a turn rotation for sealing. Ideal for high pressure operations requiring repetitive opening/closing. 4340 alloy steel 250 30,000 1,000 mL to 3,700 mL
O-ring Closure
Series R
Designed for extremely high pressure/low temperature operation, series R reactors feature a threaded closure for easy assembly and disassembly. 4340 alloy steel 250 150,000 77 mL to 30 liters
Micro Reactors
Series MS
Series MS are fixed bed tubular reactors designed for a variety of applications such as small volume testing of components and miniature scale reaction tests. 316SS 800 30,000 2 mL to 64 mL
Tubular Reactors
Series TOC
This line of economical and versatile reactors satisfy many moderate pressure applications. Accumulators can be customized through a variety of options including piston separators. 304SS O-ring 250
confined gasket 800
10,000 50 mL to 15 liters
Custom Reactors   HiP makes every reactor to order, allowing for economical and timely customizing.We offer a broad range of exotic metals, sizes and connections to meet virtually any requirement. __ __ __ __
Note: For ASME code stamping of HiP vessels, please consult factory for available reactor designs, materials, and pressure ratings.


Presure Vessel Volume Table (cubic inches)
Inside Depth Inside Diameter
(inches) 1/2" 1" 1 1/2" 2" 2 1/2" 3" 4" 5" 6" 7" 8" 9" 10"
4" 0.7856 3.142 7.068 12.57 19.63 28.27 50.26 78.54 113.1 153.9 201.1 254.5 314.2
6" 1.178 4.712 10.6 18.85 29.45 42.41 75.4 117.8 169.6 230.9 301.6 381.7 471.2
8" 1.571 6.283 14.14 25.13 39.27 56.55 100.5 157.1 226.2 307.9 402.1 508.9 628.4
10" 1.964 7.854 17.67 31.42 49.09 70.69 125.7 196.3 282.7 384.8 502.6 636.2 785.2
12" 2.357 9.425 21.21 37.7 58.9 84.82 150.8 235.6 339.3 461.8 603.2 763.4 942.4
14" 2.749 11 24.74 43.98 68.72 98.96 175.9 274.9 395.8 538.8 703.7 890.6 1100
16" 3.142 12.57 28.27 50.27 78.54 113.1 201.1 314.2 452.4 615.8 804.2 1018 1257
18" 3.535 14.14 31.81 56.55 88.36 127.2 226.2 353.4 508.9 692.7 904.8 1145 1415
20" 3.928 15.71 35.34 62.83 98.17 141.4 251.3 392.7 565.5 769.7 1005 1272 1571
22" 4.231 17.28 38.88 69.12 108 155.5 276.5 432 622 846.7 1106 1400 1728
24" 4.714 18.85 42.41 75.4 117.8 169.6 301.6 471.2 678.6 923.6 1206 1527 1885
26" 5.106 20.42 45.94 81.68 127.6 183.8 326.7 510.5 735.1 1001 1307 1654 2042
28" 5.499 21.99 49.48 87.96 137.4 197.9 351.8 549.8 791.7 1078 1407 1781 2199

Volume Equivalents
1 in3 = 16.39 mL
1 mL = 0.061 in3
1 gal = 231 in3 = 0.134 ft3
1 ft3 = 1728 in3 = 7.481 gal
1 L = 61.02 in3 = 0.264 gal

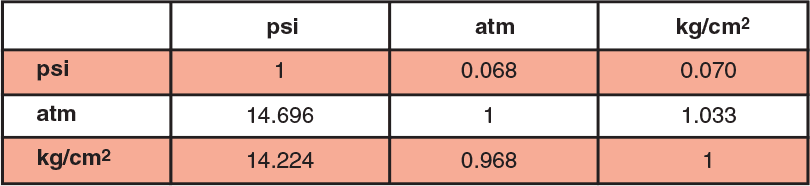

Pressure Conversions
  psi atm kg/cm2
psi 1 0.068 0.070
atm 14.696 1 1.033
kg/cm2 14.224 0.968 1
