Remarco Diaphragm Operated Valves for Remote Operation

To 100,000 psi

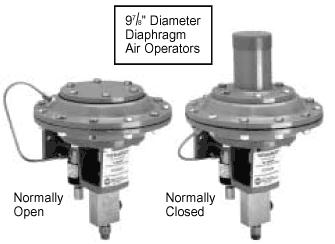

Remarco air operated valves are available for both normally open service (spring to open/air to close) and for normally closed service (air to open/spring to close). These diaphragm operated valves provide remote operation up to 100,000 psi by means of an air input supply ranging from 25 to 90 psi to the airactuator.
An electrical solenoid valve for the air supply is provided with all Remarco valves and is mounted directly to the valve. The standard solenoid is 120 volt, 60 cycle, 11 watts with 1/8" NPT air inlet. (Other voltages available at additional charge-consult factory). The solenoid is normally closed and when energized allows air into the diaphragm casing to activate the valve. In the event of an electrical or air line failure, the valve will return to its "normal" position.
The Remarco valve features removable stem seats. Valve bodies are 316 stainless steel. Valve stems are hardened 17-4PH stainless steel up to 60,000 psi. Tool steel stems are standard on 100,000 psi valves. Standard packing on the 30,000 psi and 60,000 psi Remarco valves is Teflon O-ring with Buna-N, Viton, or Silicone, available at no additional cost.

OPTIONS: Stems & Seats Carbide (for cyclic service)
Stellite (for cyclic service)
  Valve Bodies MP35N - water service 100K valve
Hastelloy C, Hastelloy B
Inconel 600, Inconel 625
Incoloy 800, Incoloy 825
Titanium Grade 2, Titanium 6AL4V
Nickel
Monel
  Packing PolyPak
High Cyclic

Normally Open (Spring To Open/ Air To Close)

ID: 200: Normally Open (Spring To Open/ Air To Close):3ao:1:6

Normally Closed (Air To Open/ Spring To Close)

ID: 201: Normally Closed (Air To Open/ Spring To Close):3ao:2:6
