Glands/Sleeves/Plugs/Elbows/Tees/Crosses (ID=37)

A complete range of elbows, tees, and crosses is available for use with sour oil and gas. Material is annealed 316 stainless steel. All connection components and fittings are rated for 30,000 psi service. Standard tubing glands and collars are provided unless otherwise specified.

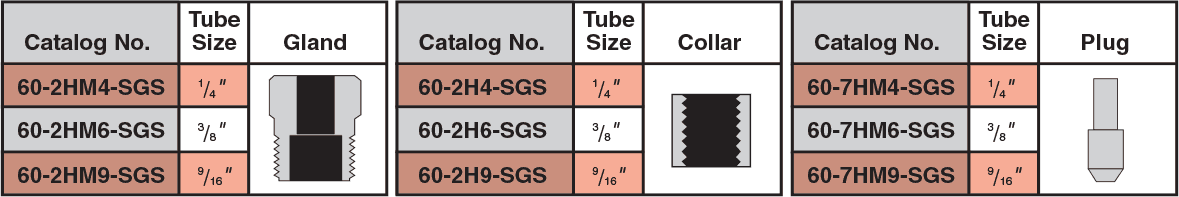

Connection Components

ID: 152: Connection Components:103:1:12

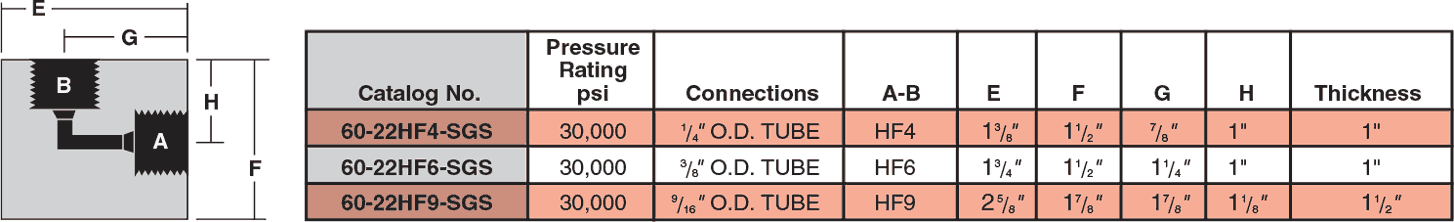

High Pressure Elbows

ID: 153: High Pressure Elbows:103:2:12

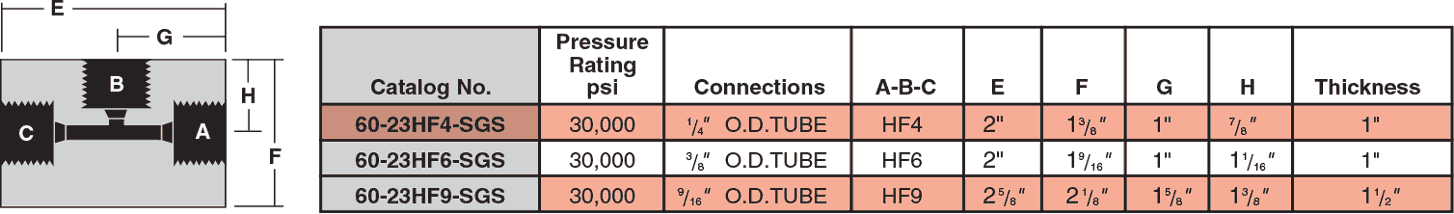

High Pressure Tees

ID: 154: High Pressure Tees:103:3:12

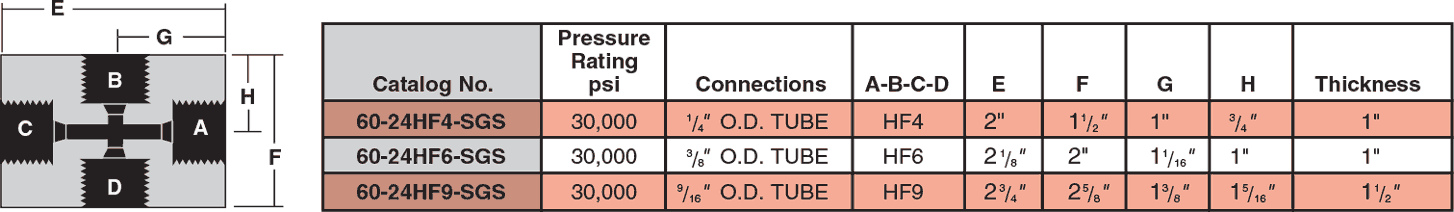

High Pressure Crosses

ID: 155: High Pressure Crosses:103:4:12
