Sour Oil & Gas Valves (ID=36)

• 1/4, 3/8 & 9/16" O.D. tube connections
• 10,000, 20,000 & 30,000 psi series
• Vee and regulating stem types
• Annealed 316 stainless steel construction
• Meet or exceed requirements of NACE MR0175

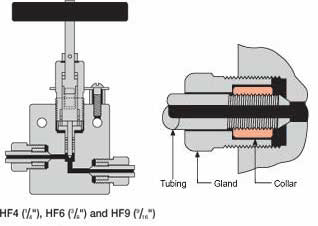

High Pressure Coned and Threaded Connections


HiP oil field products use a high pressure coned and threaded connection which accommodates the high temperatures, high pressures and extreme conditions common in these applications. These connections may be disassembled and retightened indefinitely.

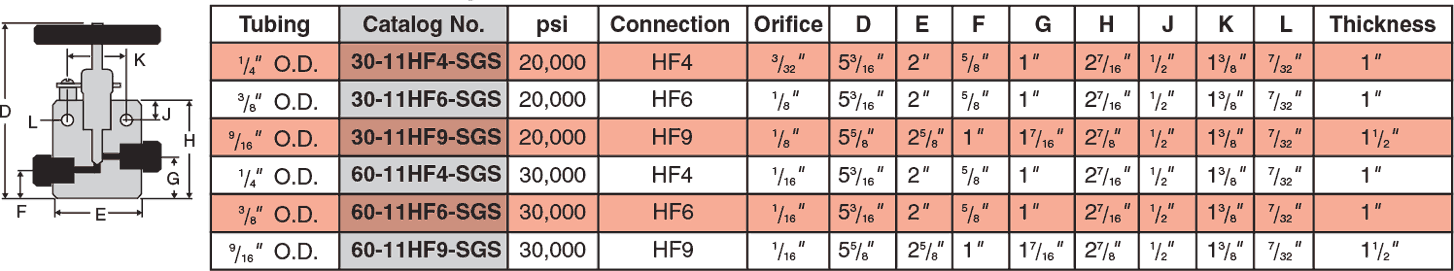

Two Way Straight Valves

ID: 146: Two Way Straight Valves:102:1:12

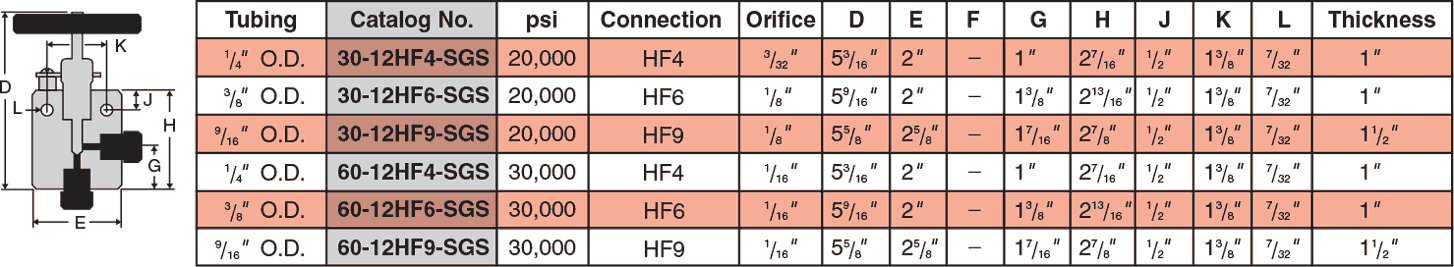

Two Way Angle Valves

ID: 147: Two Way Angle Valves:102:2:12

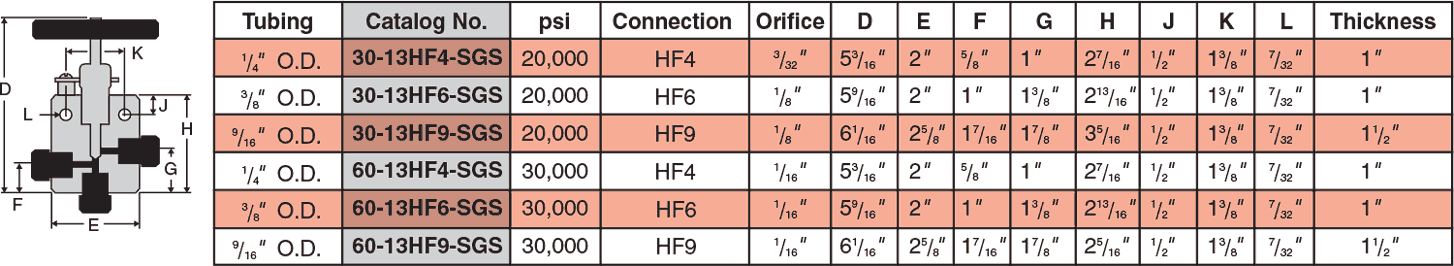

Three Way Valves / Two Pressure Connections

ID: 148: Three Way Valves / Two Pressure Connections:102:3:12

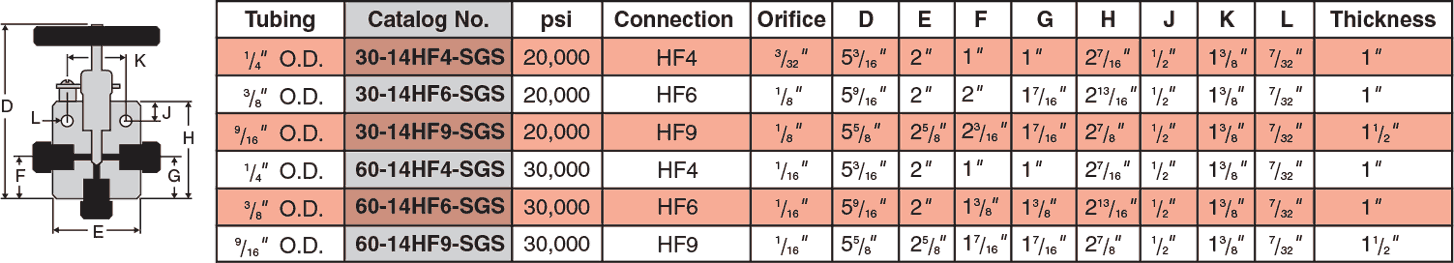

Three Way Valves / One Pressure Connection

ID: 149: Three Way Valves / One Pressure Connection:102:4:12

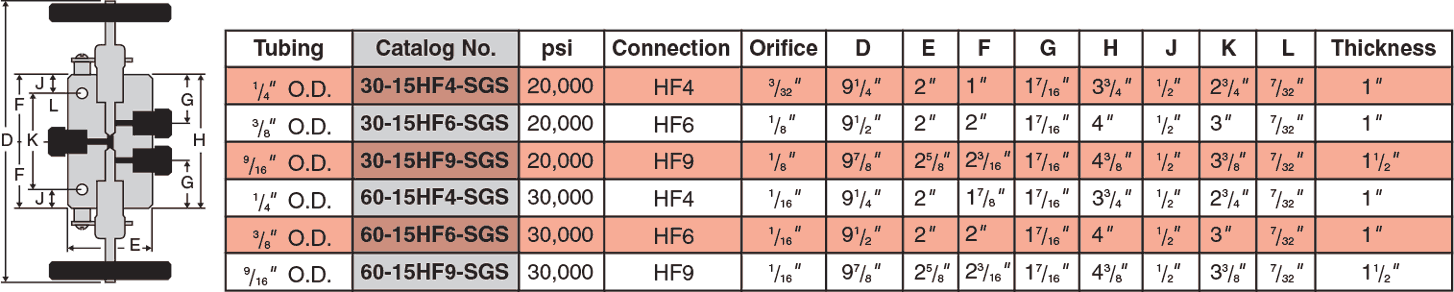

Three Way / Two Stem Connection Valves

ID: 150: Three Way / Two Stem Connection Valves:102:5:12

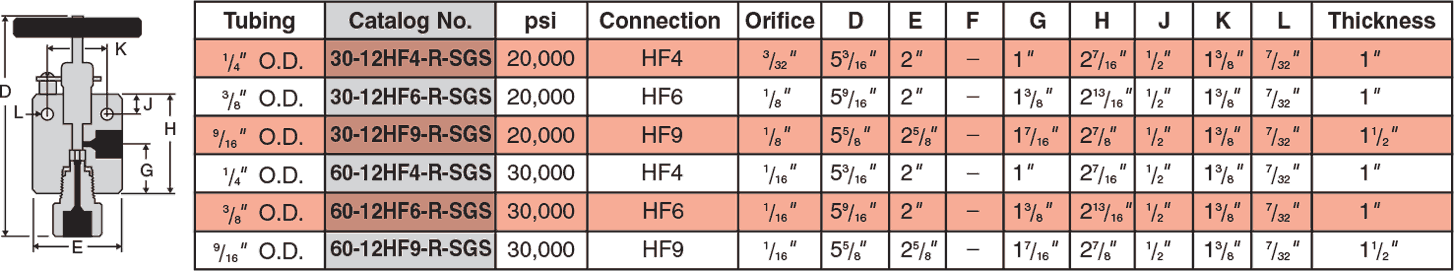

Replaceable Seat Valves

ID: 151: Replaceable Seat Valves:102:6:12
