Air Driven Power Units (ID=377)

A variety of Sprague and PowerStar™ pumps are available as packaged systems with output pressures up to 36,500 psi. These air driven power units are designed for portable and stationary applications and delivered fully assembled, ready-to-use and factory tested..

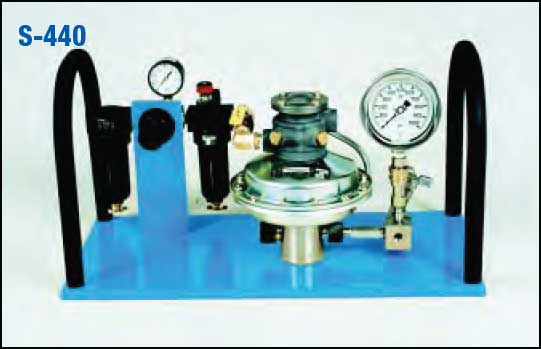

S-440

  • Standard unit for general use.
  • Components include S-216-J-()-SS pump, air filter, pressure regulator and lubricator, air shut-off valve, muffler, liquid bleed valve, air pressure gauge, liquid-filled pressure gauge with quick disconnect fitting.
  • Steel powder coated base has four mounting holes.
  • Available as S-440 with the addition of a by-pass circuit that allows quick fills from your inlet source.

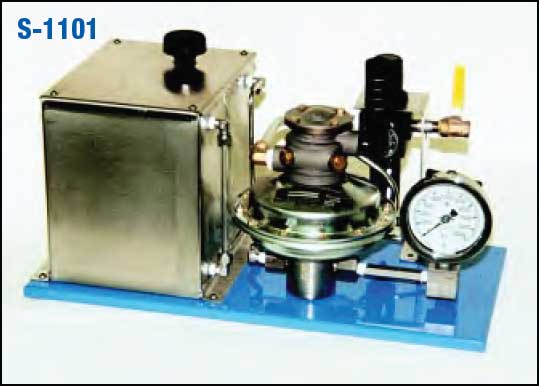

S-1101

  • Compact power unit has same components as S-440 with the addition of a three gallon (11.4 liters) stainless steel reservoir.
  • Reservoir is fitted with filter-breather-screen assembly, suction filter inline to pump, and sight glass to show liquid fill point.
  • Base flanges of reservoir have four mounting holes.
  • Designed to improve suction capability of higher ratio pumps and eliminate dry start-ups.

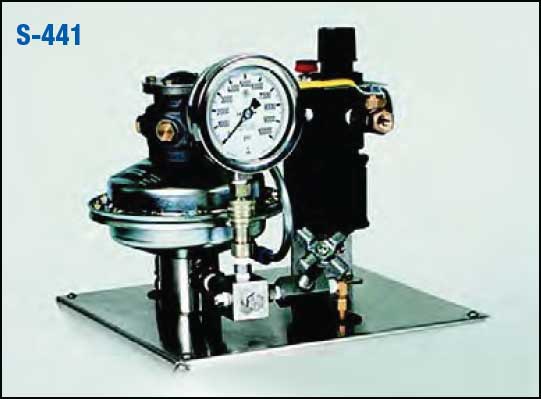

S-441

  • Compact, lightweight unit for general use.
  • Occupies slightly more than one cubic foot of space and weighs six lbs. (2.7kg) less than S-440.
  • Components include S-216-() pump, air filter, pressure regulator and lubricator, air shut-off valve, muffler, manifold, liquid bleed valve, air pressure gauge, liquid-filled pressure gauge with quick disconnect fitting.
  • Stainless steel base has four mounting holes.

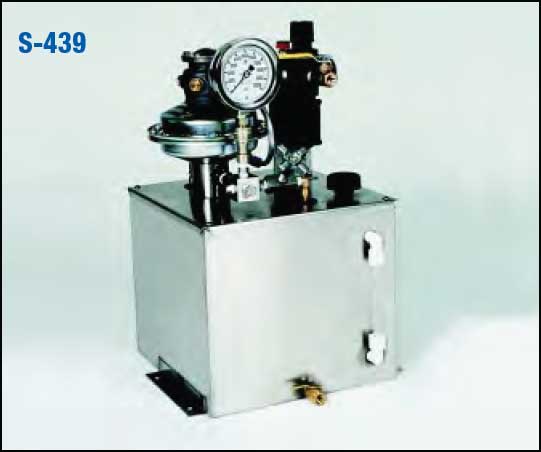

S-439

  • Compact power unit has same components as S-441 with the addition of a five gallon (18.9 liters) stainless steel reservoir.
  • Reservoir is fitted with filler-breather-screen assembly, suction filter inline to pump, and sight glass which shows liquid fill point.
  • Base flanges of reservoir have four mounting holes.

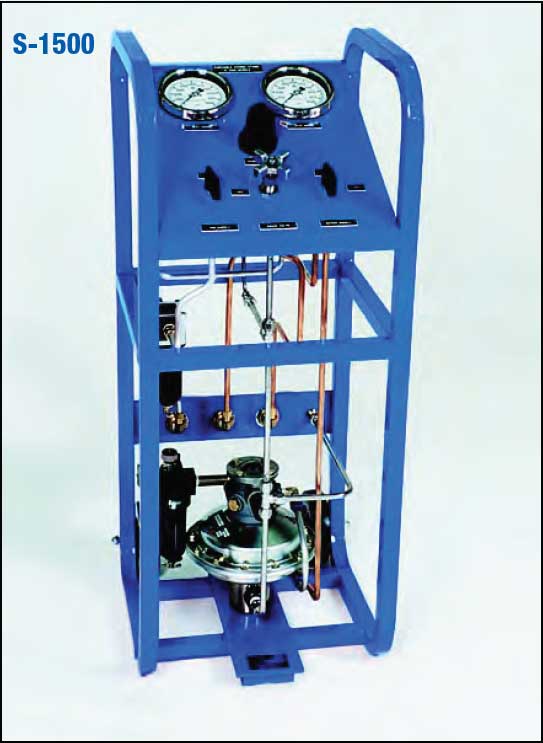

S-1500

  • Air-operated piston pump mounted on tubular frame with wheels for extreme portability.
  • Hydro gauges, valves and pump regulator all panel-mounted.
  • Output pressure adjusted by setting air pressure regulator to pump.
  • Pump automatically shuts off at set pressure; re-starts when pressure drops

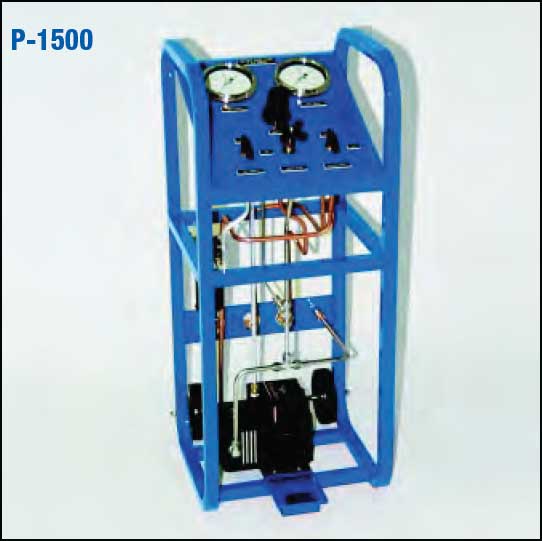

P-1500

  • Air-operated piston pump mounted on tubular frame with wheels for extreme portability.
  • Hydro gauges, valves and pump regulator all panel-mounted.
  • Output pressure adjusted by setting air pressure regulator to pump.
  • Pump automatically shuts off at set pressure; re-starts when pressure drops.

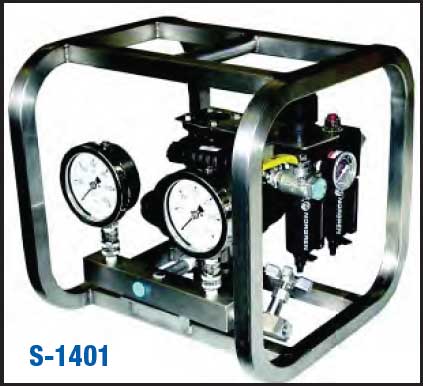

S-1401

  • Air-driven lubricated J series pump with pressure ranges from 1000 to 36,500 PSI.
  • 1” Square tubular frame stainless steel, glycerin-filled, quick disconnect.
  • 3/8” Air inlet port with stainless steel ball valve, filter regulator with gauge, 50 micron filter.
  • Stainless steel manifold block, extra quick disconnect port for relief valves.
