T-Series Pump Power Packs
HiP packaged hydraulic power systems using our new high performance T-Series pumps are an excellent method to deliver high pressure hydraulic power to your field location. These turn-key systems only require a non-lubricated air supply to generate hydraulic power up to 68,000 psi and are designed for plain water or oil service. We offer a range of standard power packs that are typically in-stock or available with a short lead time, as well as custom power systems to satisfy your specific requirements. All HiP power packs are factory pressure tested prior to shipping.
T-Series Pump Power Packs can be used for a wide variety of high pressure applications such as bolt tensioning, pressure testing, power pressing, jacking, lifting, hydraulic power units, proof testing components, valve actuation and many more.

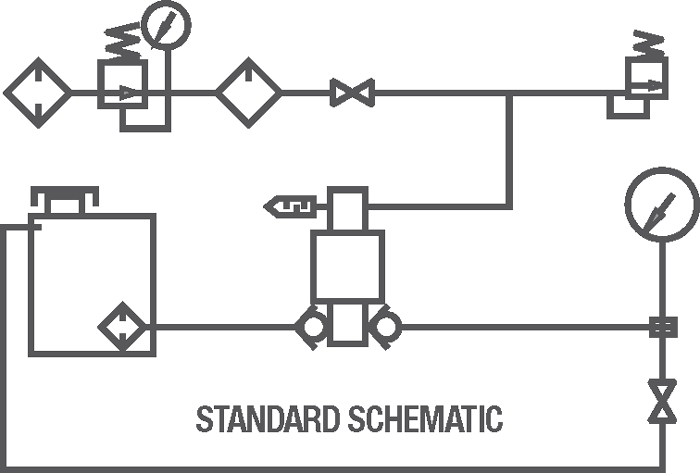

![](./images/TSeriesPumpSchematic.png)
Ordering Information
Part Number Example: 5065T-T6036-TB-SST This is a T60 series pump with a maximum outlet pressure of 36,500 psi and options of a tank bypass and 316 stainless steel tank. |
5065T |
T6036 |
TB-SST |
All Models |
Pump Series |
Pump Model/Max Pressure |
Additional Extras |
|
T60 |
6” Motor Series Pump |
T75 |
7-1/2” Motor Series Pump |
|
T60 Series | T75 Series |
03 |
3,200psi |
05 |
5,000psi |
05 |
4,800psi |
07 |
7,400psi |
06 |
6,300psi |
10 |
10,000psi |
10 |
10,000psi |
16 |
15,750psi |
12 |
12,500psi |
19 |
19,500psi |
16 |
16,250psi |
25 |
25,500psi* |
25 |
25,250psi |
39 |
39,500psi* |
36 |
36,500psi |
57 |
57,100psi |
58 |
58,000psi |
68 |
68,000psi |
|
TB |
Tank Bypass |
IV |
Isolation Valve |
CRO |
|
SST |
|
USB |
USB Transducer |
ATEX |
ATEX certified |
|
Typical Pressure & Connection Sizes
Please scroll to the sides when using small displays
T60 Series | Maximum Working Pressure | Air Inlet | Gauge Range | Outlet Connection |
|
psi |
bar |
|
|
|
03 |
3,000 |
221 |
1/2" NPT(F) |
0-5,000 psi/bar |
1/2" NPT(F) |
05 |
4,800 |
331 |
1/2" NPT(F) |
0-10,000 psi/bar |
1/2" NPT(F) |
06 |
6,300 |
434 |
1/2" NPT(F) |
0-10,000 psi/bar |
1/2" NPT(F) |
10 |
10,000 |
689 |
1/2" NPT(F) |
0-10,000 psi/bar |
HF9 |
12 |
12,500 |
862 |
1/2" NPT(F) |
0-15,000 psi/bar |
HF9 |
16 |
16,250 |
1120 |
1/2" NPT(F) |
0-20,000 psi/bar |
HF9 |
25 |
25,250 |
1740 |
1/2" NPT(F) |
0-30,000 psi/bar |
HF4 |
36 |
36,500 |
2516 |
1/2" NPT(F) |
0-40,000 psi/bar |
HF4 |
58 |
58,000 |
3998 |
1/2" NPT(F) |
0-70,000 psi/bar |
HF4 |
Please scroll to the sides when using small displays
T75 Series | Maximum Working Pressure | Air Inlet | Gauge Range | Outlet Connection |
|
psi |
bar |
|
|
|
05 |
5,000 |
344 |
1/2" NPT(F) |
0-10,000 psi/bar |
1/2" NPT(F) |
07 |
7,400 |
510 |
1/2" NPT(F) |
0-10,000 psi/bar |
1/2" NPT(F) |
10 |
10,000 |
689 |
1/2" NPT(F) |
0-15,000 psi/bar |
1/2" NPT(F) |
16 |
15,750 |
1085 |
1/2" NPT(F) |
0-20,000 psi/bar |
HF9 |
19 |
19,500 |
1344 |
1/2" NPT(F) |
0-30,000 psi/bar |
HF9 |
25 |
25,500 |
1758 |
1/2" NPT(F) |
0-30,000 psi/bar |
HF9 |
39 |
39,500 |
2723 |
1/2" NPT(F) |
0-50,000 psi/bar |
HF4 |
57 |
57,100 |
3936 |
1/2" NPT(F) |
0-70,000 psi/bar |
HF4 |
68 |
68,000 |
4688 |
1/2" NPT(F) |
0-80,000 psi/bar |
HF4 |
- Chart Recorder Port HF4 plugged
- Stainless Steel Tank 316 SS, mesh in tank filter, sight glass
- USB Transducer Range to suit pump max pressure. 400bar, 1500bar, 2000bar, 3000bar, 4000bar
- Standard Seal Material NBR
- Optional Seal Materials EPR available upon request
FKM, FFKM available for pumps with maximum pressures of 16,250 or less
For technical support on TSeries Pumps, and Sprague products, please contact: pumpsales@highpressure.com
