PT2020 Automated Pump Controller System

for Air-Driven High Pressure Hydraulic Pumps

High Pressure Equipment Company introduces the first-of-its-kind Automated Controller System for air driven high pressure hydraulic pumps. The PT2020 controller is designed to provide automated pressure control for a wide range of hydrostatic testing. Operators simply setup their test, press start and walk away... the PT2020 will automatically run the test, give a pass/fail reading and generate a test certification report.

The plug'n play PT2020 is an easy-to-use upgrade for any existing manual pneumatic intensifier pump and comes in five pressure ratings up to 75,000 psi. The PT2020 features an intuitive touch screen interface making test setup fast and easy. HiP's new pump controller is highly accurate and will save you money by freeing personnel to do other tasks while conducting hydrostatic tests.

PT2020 Automated Pump Controller System Features:

  • Industry-first automated controller for manual air-driven hydraulic pumps
  • Automated pressure control for hydrostatic testing
  • Plug'n play upgrade for any manufacture pneumatic intensifier pump
  • Five pressure classes:
    • 10,000 psi
    • 25,000 psi
    • 40,000 psi
    • 60,000 psi
    • 75,000 psi

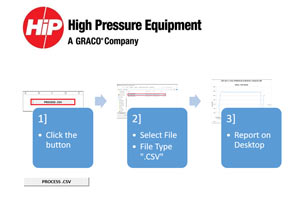

  • Generates test certification reports
  • Easy-to-use touch screen interface
  • Simply setup test, hit start and walk away
  • Highly accurate
  • Control for a Dump Valve
  • Control for an Isolation Valve
  • USB Port added to front of enclosure. No need to open enclosure to update PT2020 or Download Files
  • FTP functionality, allows a PC to pull files off the PT2020 with the use of a FTP Client
  • Ethernet port added to the front of the PT2020. To allow for easy connection for the FTP
  • Manual Mode now records pressure data
  • Added unable to build Pressure Alarm

PT2020 Controller

Part NumberCord Set (Region)Pump Size (psi)
25N950 US 10,000
25N951 US 25,000
25N952 US 40,000
25N953 US 60,000
25N954 US 75,000
25D815 UK 10,000
25D816 UK 25,000
25D817 UK 40,000
25D818 UK 60,000
25D819 UK 75,000
25D820 EU 10,000
25D821 EU 25,000
25D822 EU 40,000
25D823 EU 60,000
25D824 EU 75,000
25D825 AU 10,000
25D826 AU 25,000
25D827 AU 40,000
25D828 AU 60,000
25D829 AU 75,000
