Typical Circuits

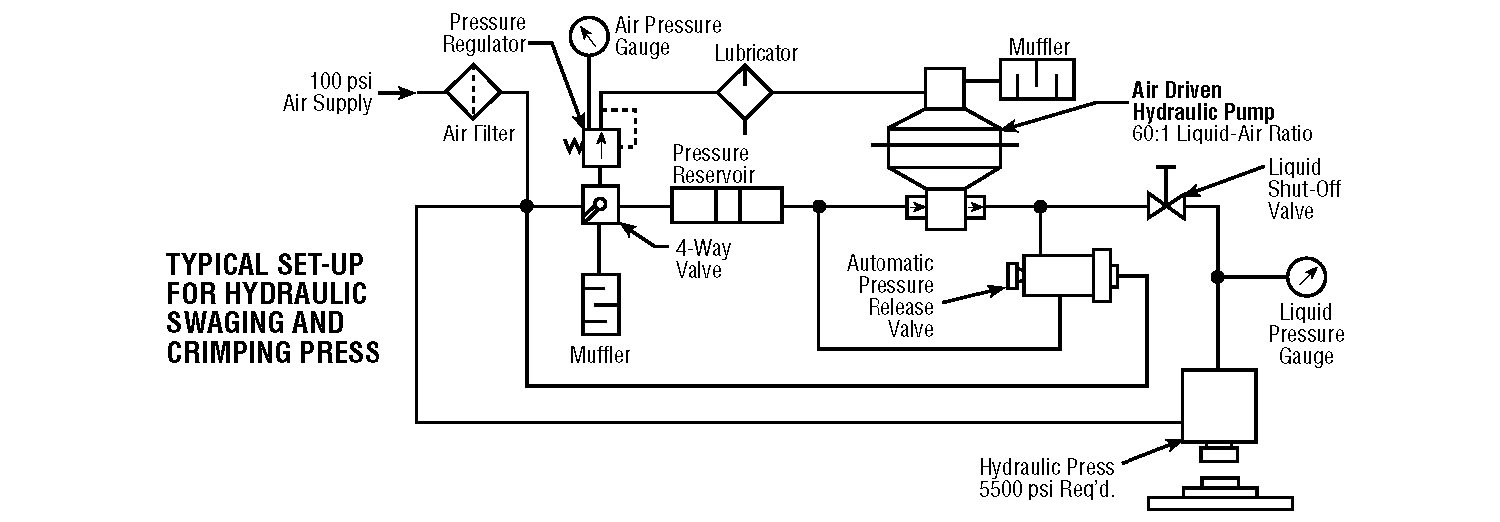

Typical Set-Up for Hydraulic Swaging and Crimping Press
![Typical Set-Up for Hydraulic Swaging and Crimping Press](./images/pumps/HIP_PumpCatalog2Print_hr_Page_15_Image_0001.jpg)

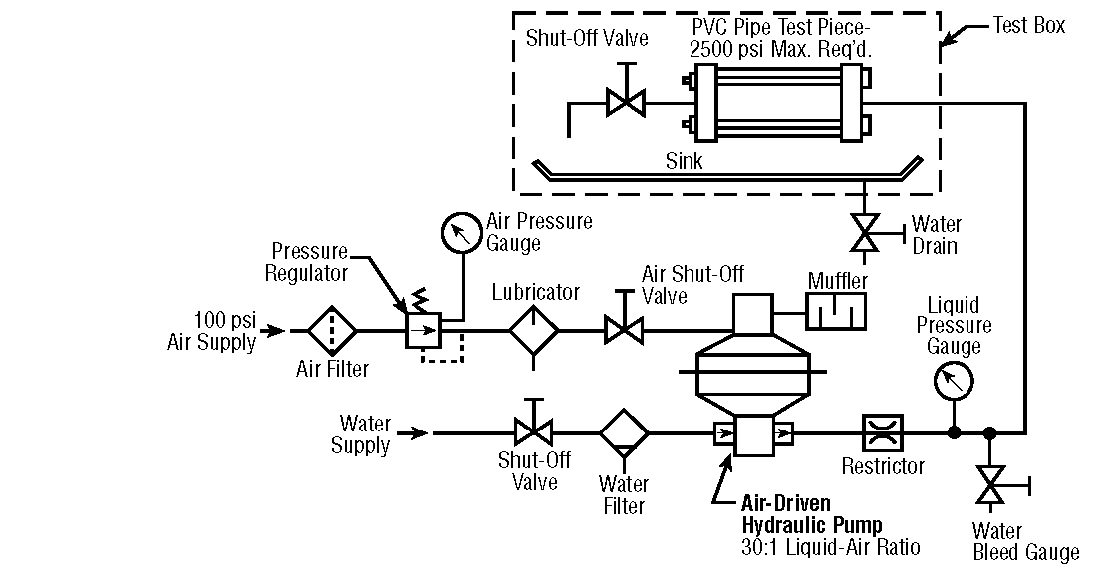

Typical Pump Set-Up For Hydrostatic Test
![wetted section materials](./images/pumps/HIP_PumpCatalog2Print_hr_Page_15_Image_0002.jpg)

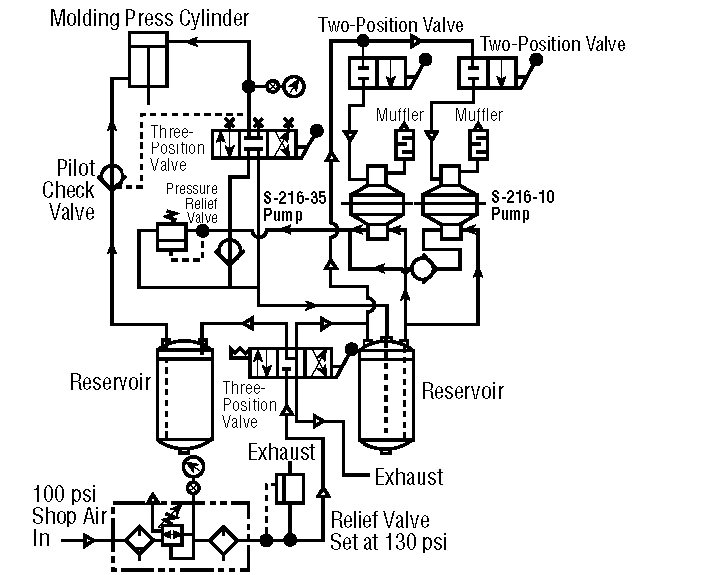

High-Low Pump System for Molding Press
![accessories](./images/pumps/HIP_PumpCatalog2Print_hr_Page_15_Image_0003.jpg)
