S-216-J Standard Pump

and S-216-JN Non-Lubricated Pump

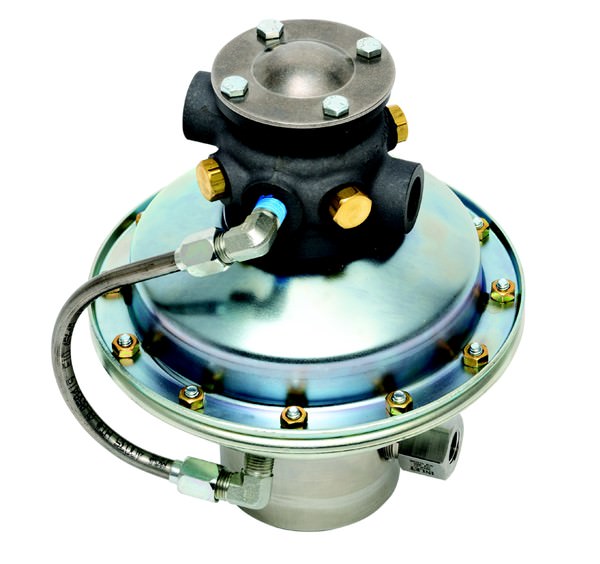

S-216-J-( ) STANDARD PUMP, LUBRICATED
This general use, air-driven pump produces medium to high liquid pressures and services oil, water and compatible chemicals.
The Model S-216-J standard pump is offered in ten ratios (area of large air piston to area of small liquid piston) ranging from the 10:1 ratio pump which develops up to 1025 psi (70 bar) to the 300:1 ratio which develops up to 36,500 psi (2516 bar). By regulating the driving air pressure, the pump’s liquid output can be adjusted through its pressure range.

The pump’s wetted section components are stainless steel, compatible with most non-abrasive liquids.

Being air-driven, the pump is safe for use in hazardous areas.

The S-216-J standard pump requires lubricated driving air to lubricate the pump’s dynamic air seals and other internal parts within the air portion of the pump.

When determining the appropriate pump nominal ratio to order, refer to:
How To Order Pumps
Pump Ratio Selection Chart

Example: S-216-J-60
Pump Model Number
Pump Nominal Ratio

Related Sprague Content

• Performance & Applications
• How the Air Driven Pump Works
• Typical Circuits
• Ordering Information
• Pump Ratio Selection Chart

Pump Configurator

S-216-J

S-216-JN-( ) STANDARD PUMP, NON-LUBRICATED
Mechanically the same as the S-216-J standard pump, this S-216-JN-( ) pump is suitable for use in cleanrooms or laboratories. The pump uses normal shop compressed air without lubrication to actuate the pump. Its dynamic air seals are self lubricating. The pump’s exhaust air is identical to the driving air supply, so no additional contaminants are added to the exhaust air. Order in the same manner as the S-216-J and add an “N” to model number.

Example: S-216-J-60
Pump Model Number
Pump Nominal Ratio

S-216-J-( )HO HIGH OUTPUT PUMP, LUBRICATED S-216-JN-( )HO HIGH OUTPUT PUMP, NON-LUBRICATED
Mechanically the same as the S-216-J-( ) or S-216-JN-( ) pumps, the S-216-( )-( )HO pumps utilize larger air to dramatically increase pump speeds. Flows of up to double the standard published flow rates are available with the high output pumps.

S-216-JR-( ) STANDARD PUMP/RESERVOIR, LUBRICATED
This pump assembly combines the S-216-J standard pump (lubricated air type) with a one-gallon (3.8 liters) steel reservoir. Readily adaptable to portable power pack use or suitable for stationary use to provide hydraulic power for production machinery or for hydrostatic testing. Available in ten pump ratios.

S-216-JNR-( ) PUMP/RESERVOIR, NON-LUBRICATED
Same as S-216-JR-( ) assembly except that the S-216-JN-( ) standard pump (non-lubricated air type) is used. No additional contaminants are exhausted from the pump. Available in ten pump ratios.

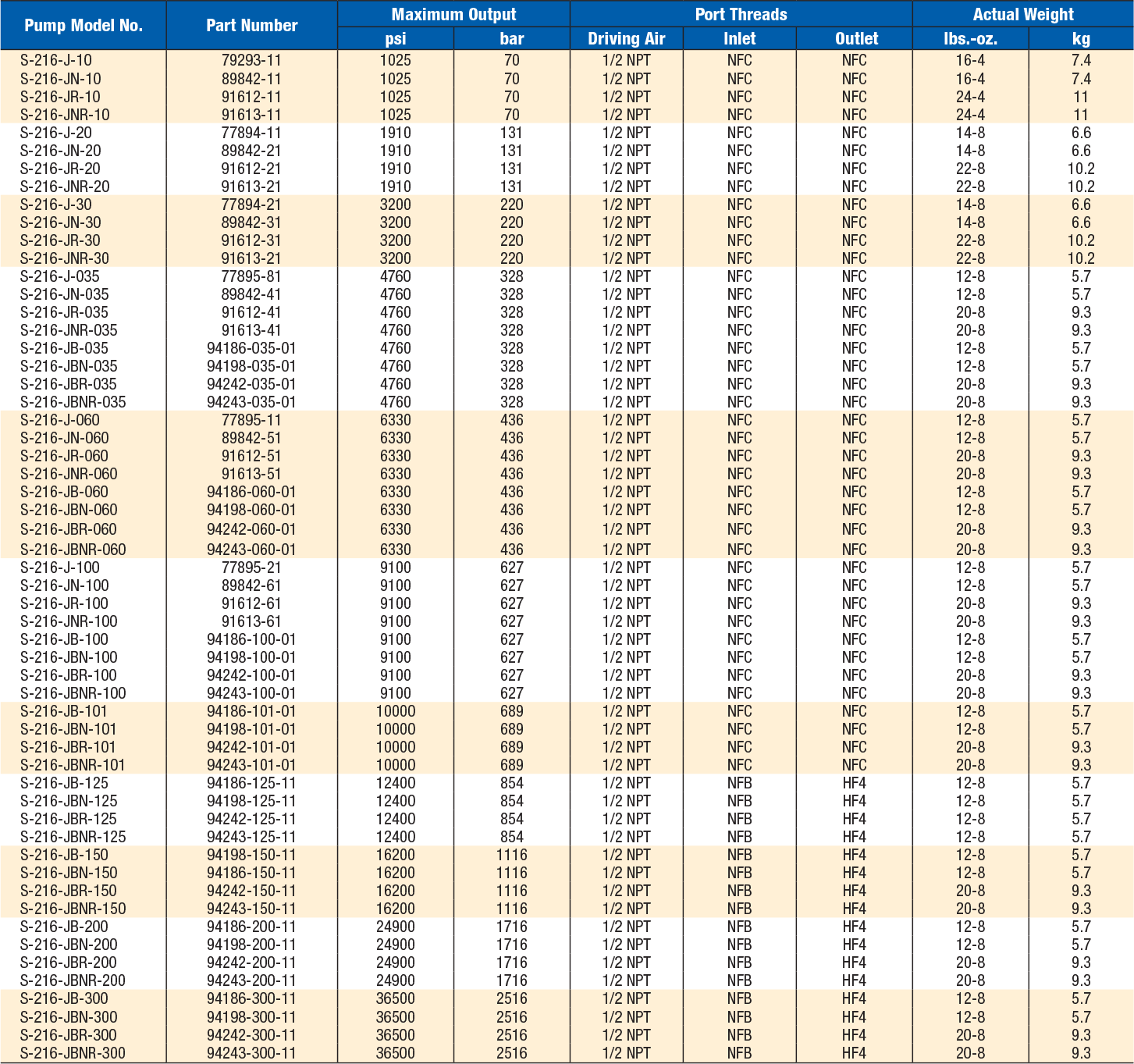

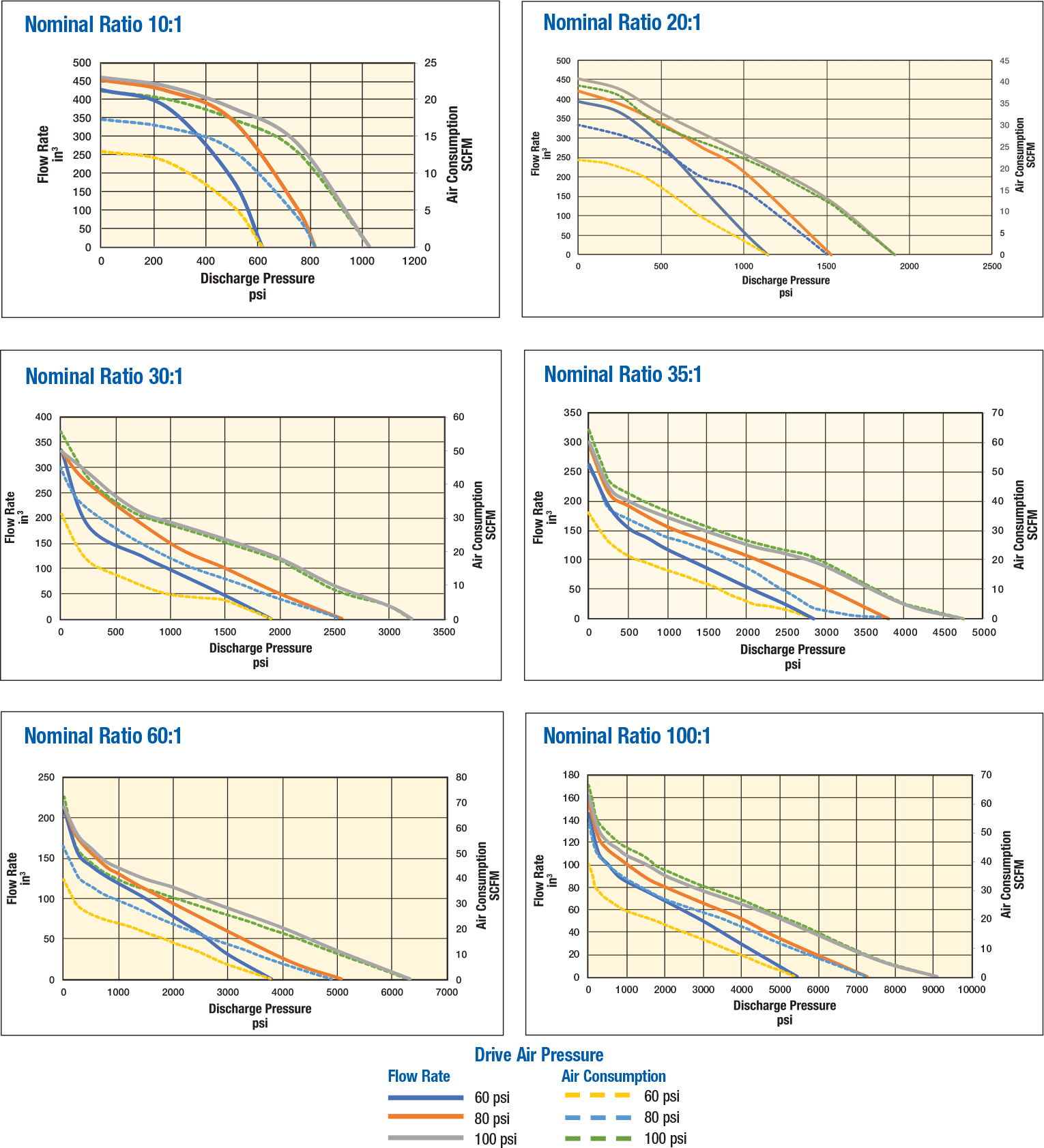

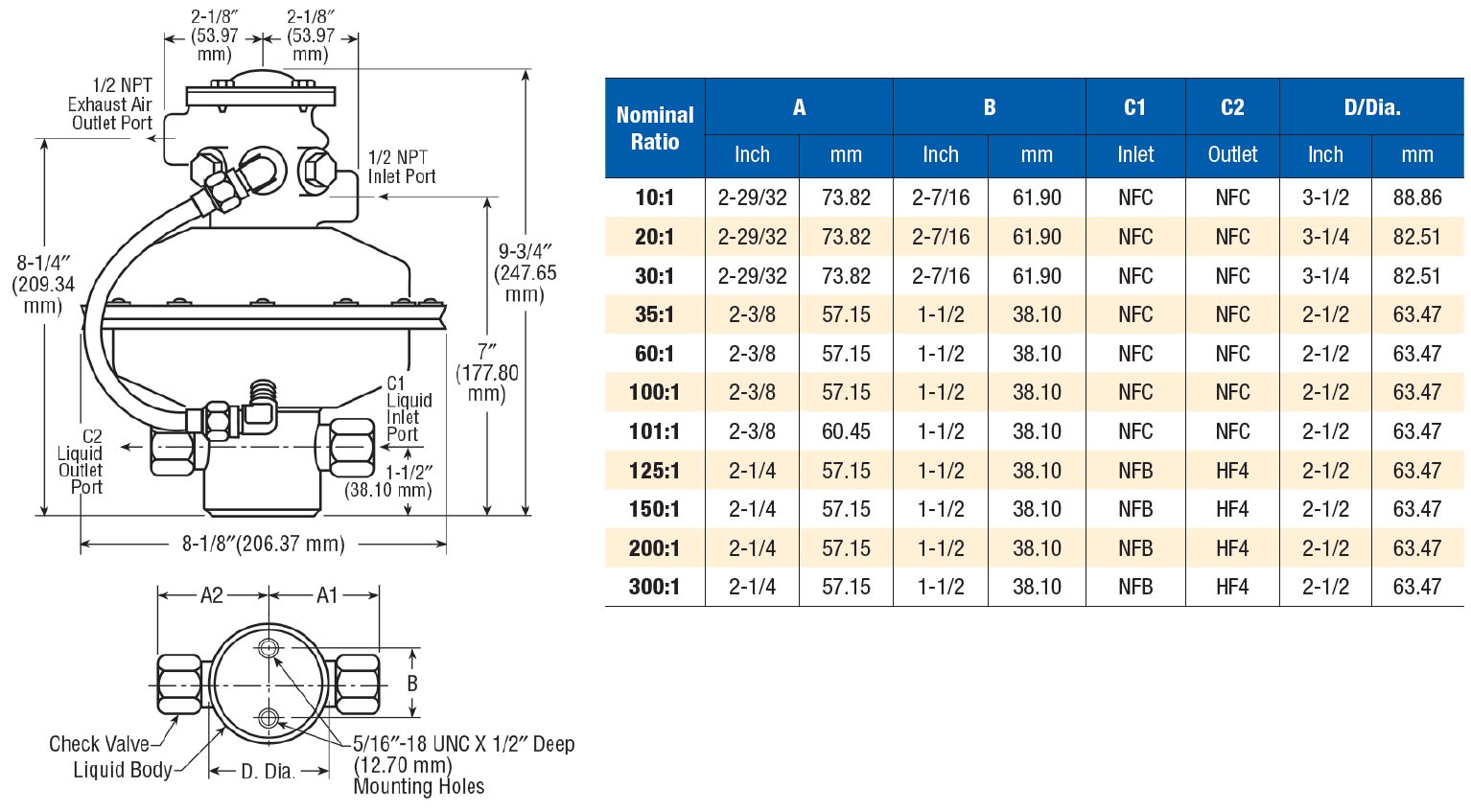

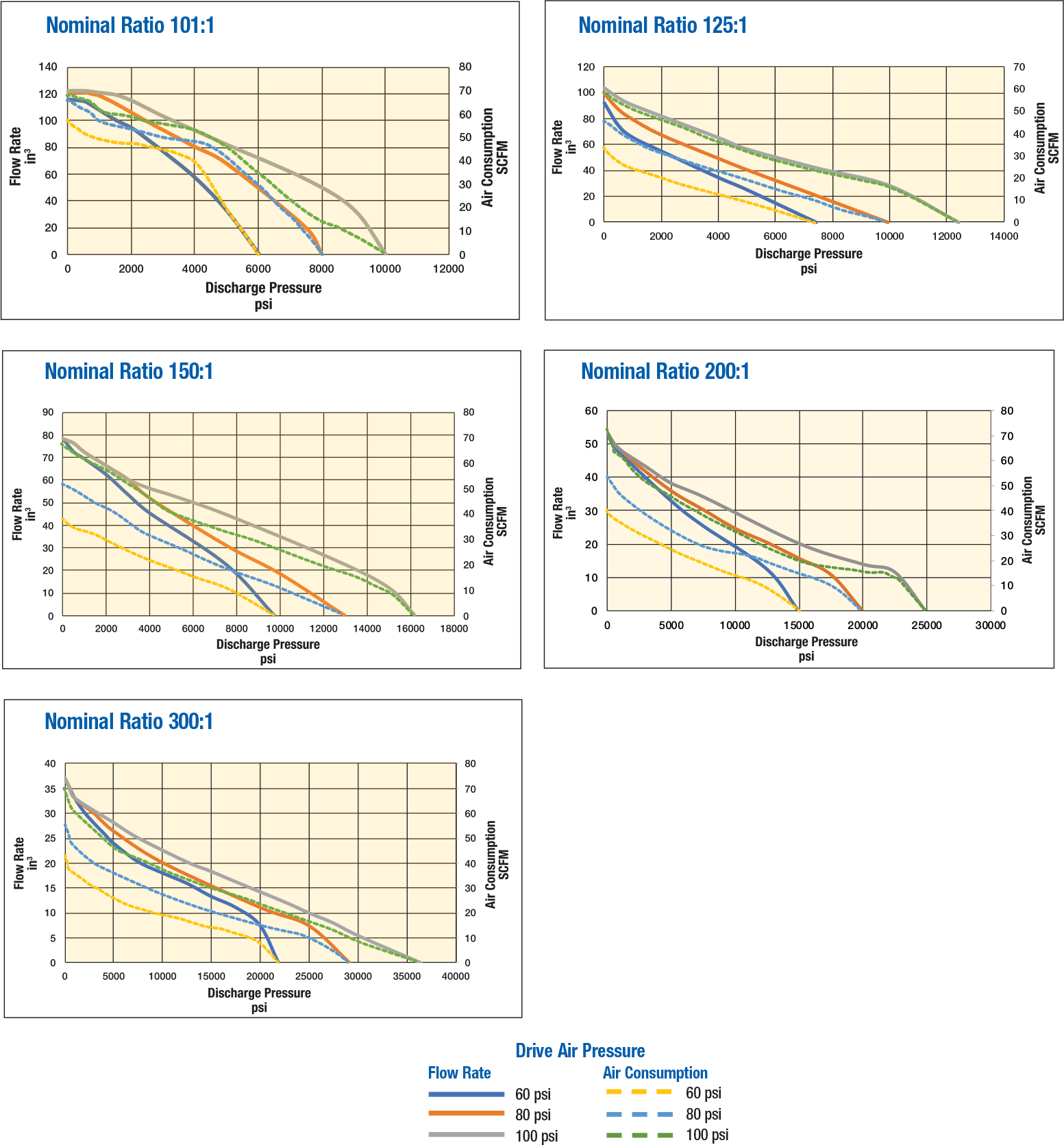

S-216-J Flow Performance
