Typical Circuits and Accessories (ID=365)

To compress shop air or bottled gas to higher pressures, Sprague boosters are combined with accessories to provide complete circuits as shown below.

An air control unit and shut-off valve are installed in the driving air side of booster. Noise is dampened with a muffler. An air filter (10 micron) is recommended in the gas precharge line. On the gas discharge side, a pressure gauge, shut-off and bleed valves are installed.

For convenience, boosters combined with compatible accessories can be obtained as complete, ready-to-use power units.

SINGLE AIR SOURCE

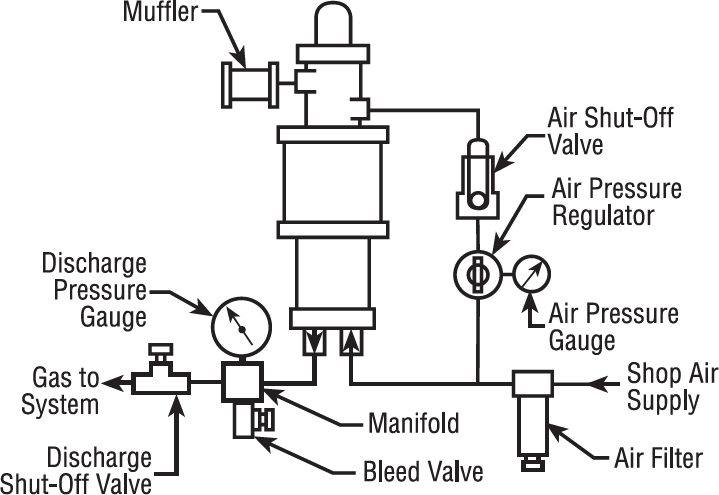

Non-lubricated shop air to driving side and to gas inlet of booster.


DUAL SOURCE AIR/GAS SOURCES

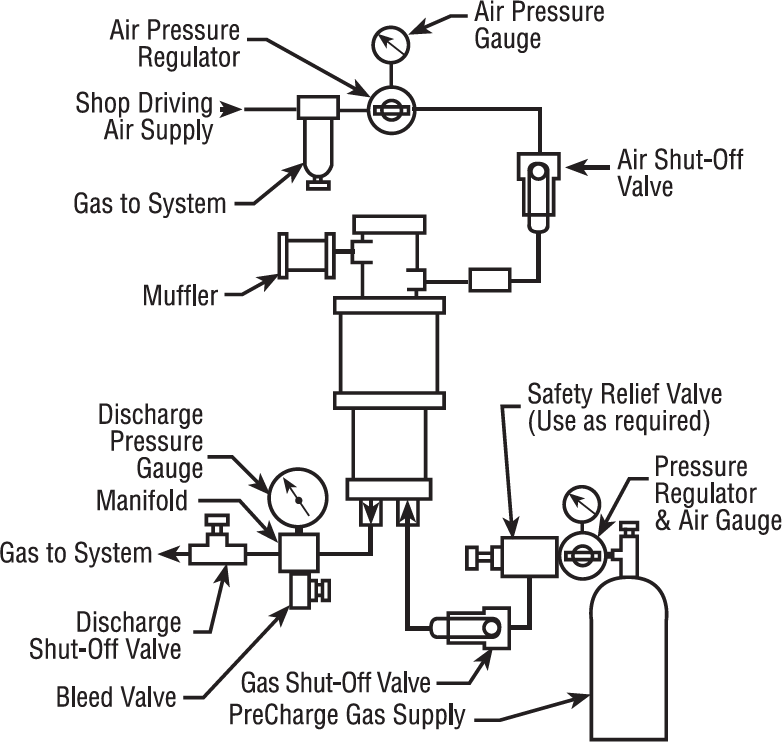

Precharge gas supply to gas inlet of booster.
