T-Series
High Performance Air-Driven Pumps

Why a T-Series Pump?

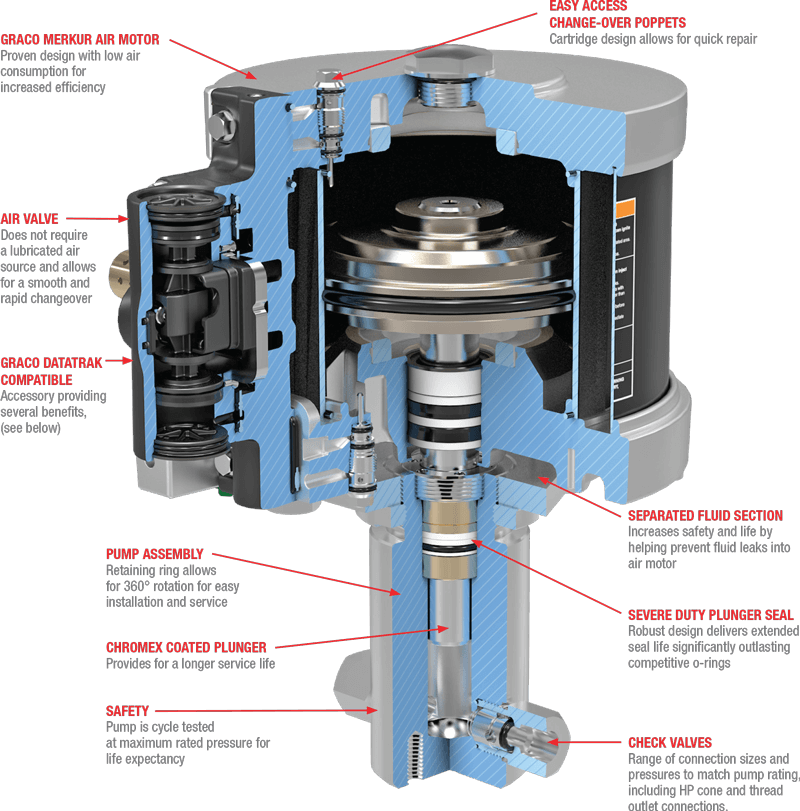

Merkur Air Motor from Graco

  • One of the highest technology air motors on the market
  • Low air consumption for increased efficiency
  • Proven technology with over 10 years in the market
  • Heavy duty muffler provides low operating sound levels
  • External valve access allows for easy servicing to help minimize downtime

Heavy Duty Operation

  • Pump can achieve the maximum working pressure time and time again unlike intermittent duty rated pumps
  • No need for additional mufflers
  • Severe duty plunger seal for less downtime

Easy to Service

  • Can service air motor shuttle valve without disassembling the pump
  • Quick and easy access to plunger seals
  • Minimal tools required

Robust Design

  • Separated pump air section helps prevent fluid leaks into air motor
  • Inlet/outlet connections match pipe connections
  • Bubble tight checks

Approvals

NOTE: "h", Type of protection applied is Constructional Safety "c".

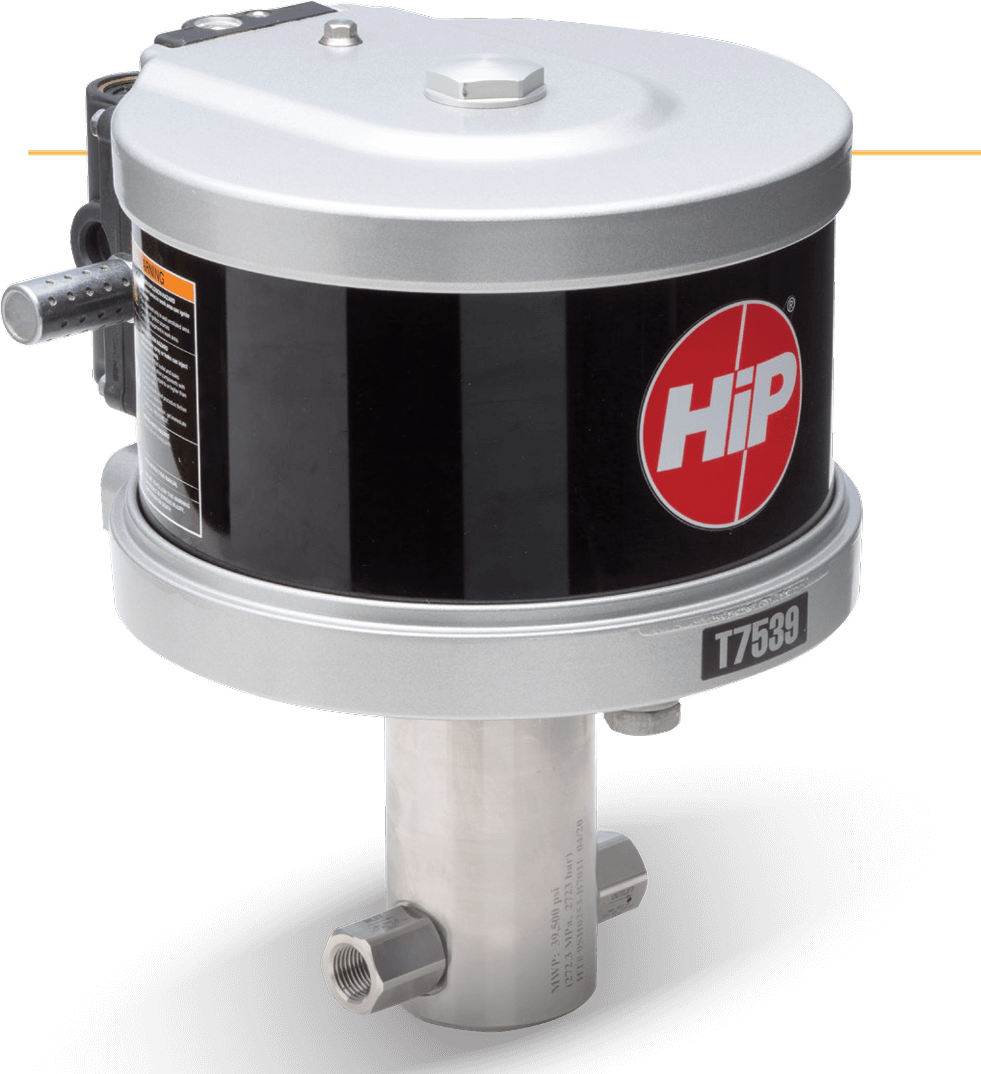

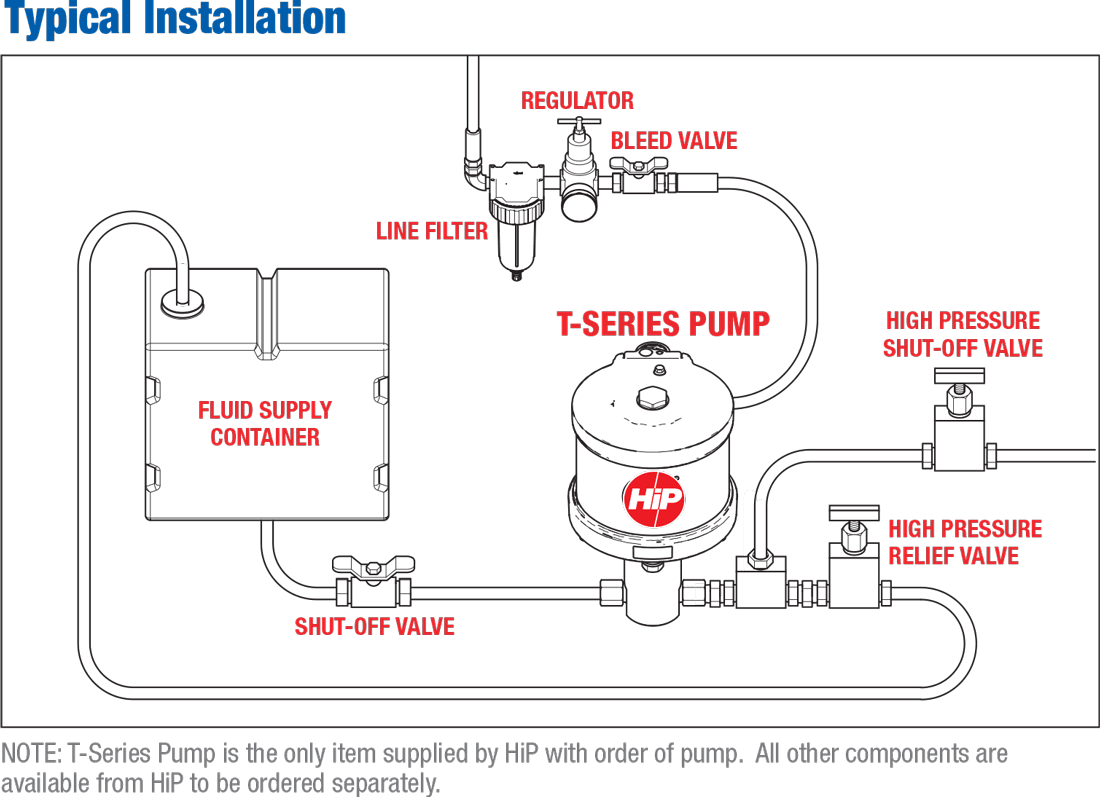

High Pressure Equipment's new T-Series pneumatically operated liquid pumps have been engineered to provide an extremely safe, reliable and durable hydraulic power source for applications up to 68,000 psi (4,688 bar). Combining HiP's high pressure expertise with Graco's extensive pump engineering background, T-Series pumps address many of the shortcomings commonly found in today's air-driven liquid pumps. Premium T-Series pumps are built to run at their maximum rated pressure and feature a robust motor and seal design that delivers a long service life. In addition, these pumps do not require a lubricated air source and incorporate several features to facilitate easy installation and service.

HiP T-Series pumps achieve a "bubble tight" pressure stall that can be used for high pressure applications such as bolt tensioning, pressure testing, power pressing, jacking, lifting, hydraulic power units, proof testing components, valve actuation and many more.

Pump Configurator

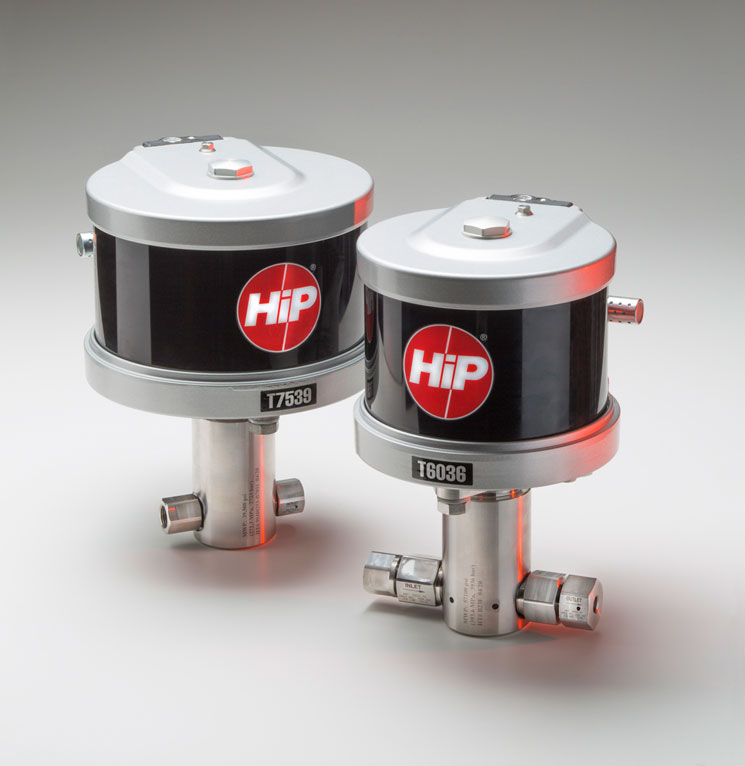

T-Series Pump Features


Optional T-Series Accessory

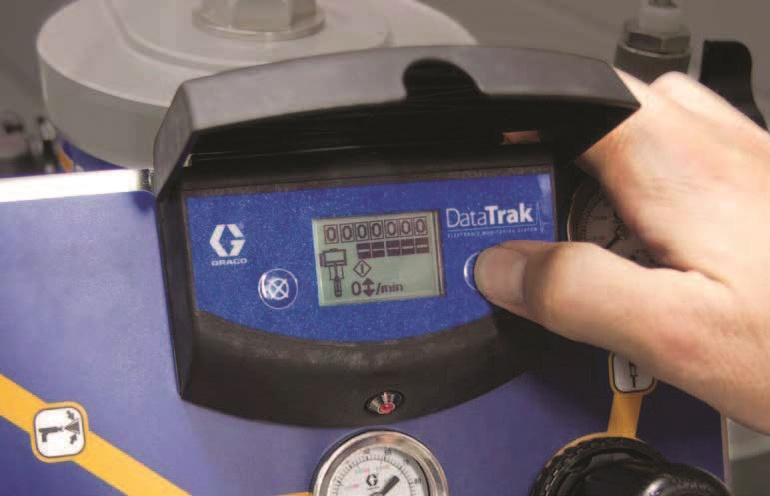

Graco Datatrak Electronic Monitoring System

  • Stroke counter
  • Cycle rate display
  • Runaway protection


Performance & Applications


Applications
  • Bolt Tensioning
  • Pressure testing
  • Work holding and clamping
  • Jacking and lifting
  • Power pressing
  • Hydraulic power units
  • Valve actuation
  • Proof testing components
  • Hydraulic cylinder actuation
  • Chromatography
  • Lubrication and spraying
  • Liquefied gas transfer

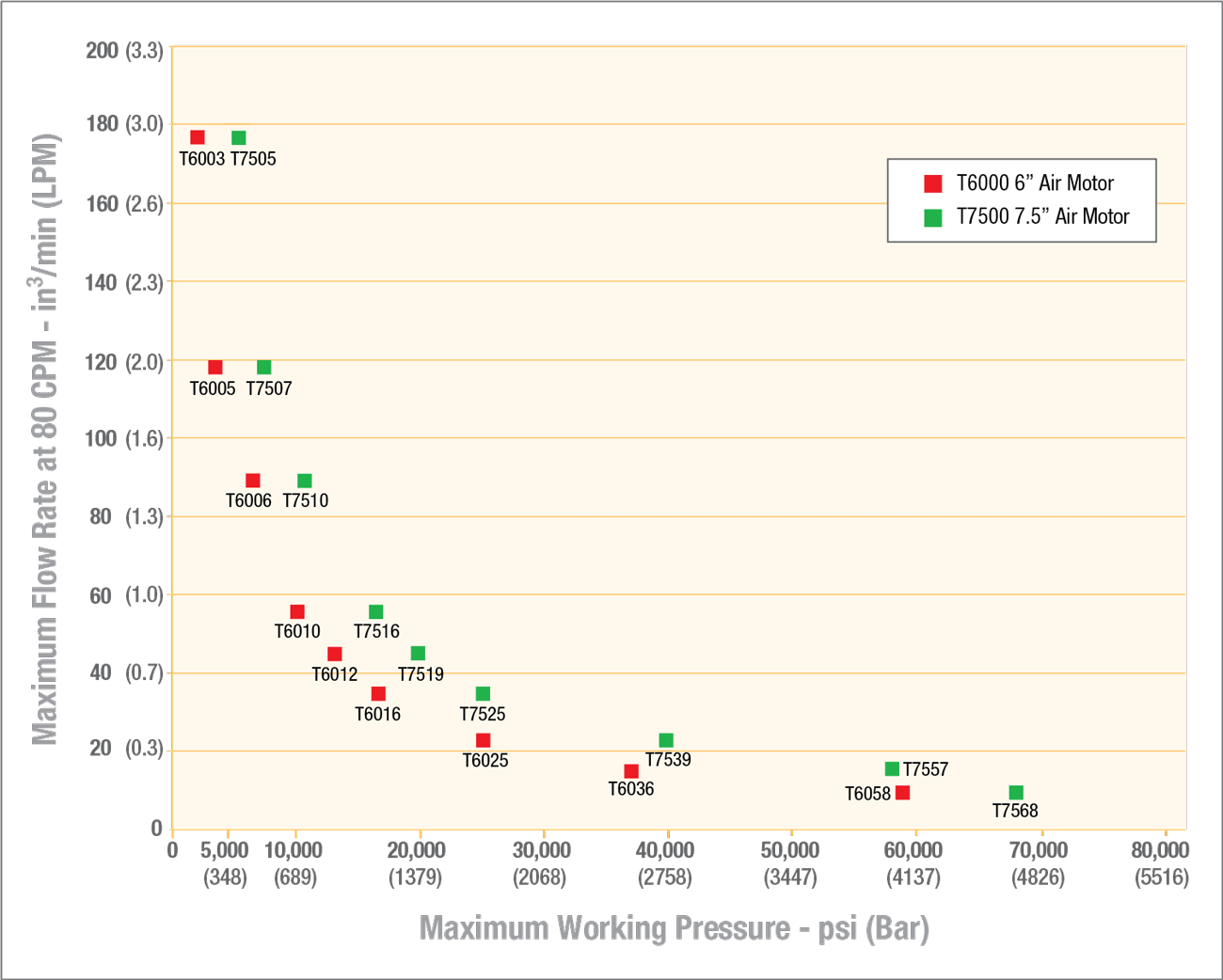

T-Series Pump Maximum Pressure & Flow Ratings

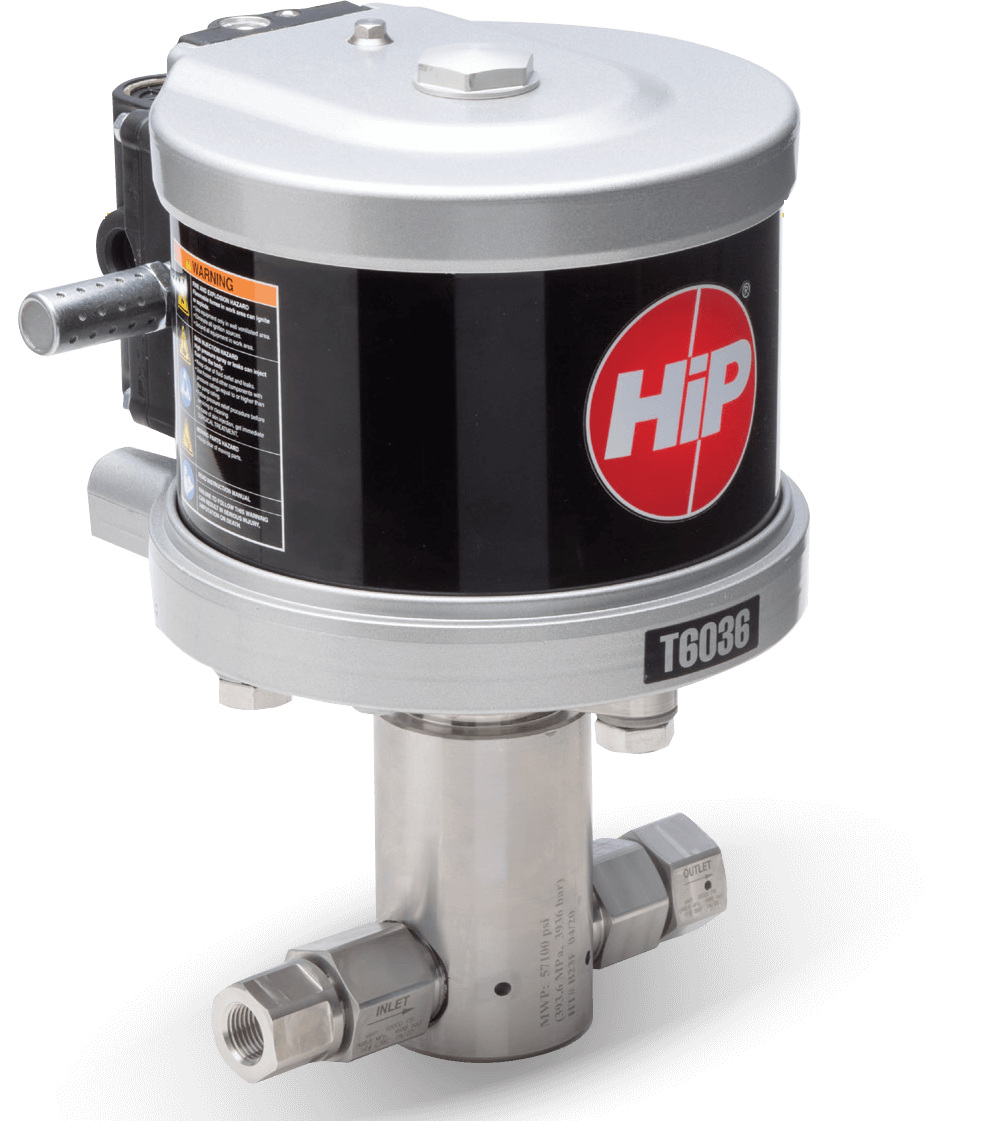

T6000 Series Pumps

Features
  • 6 inch air cylinder
  • Available in 9 different pump ratios
  • 2.5 inch pump stroke
  • Maximum operating pressure of 58,000 psi (4000 bar)
  • Maximum flow rate of 177 in3/min (2.9 lpm) at 80 CPM
  • Inlet air pressure 15 psi to 100 psi (1 to 7 bar)
  • Four different plunger seal materials
*80 CPM recommended for optimal pump seal life

Please scroll to the sides when using small displays
Part NumberModelRatioSeal
Material
Maximum Working
Pressure psi
(Mpa, bar)
Maximum Pneumatic
Inlet Pressure
psi (Mpa, bar)
Displacement
per Stroke
in3 (ml)
T6058-576-NBR-00 T6058 576:1 NBR 58000 (400, 4000) 100 (0.69, 6.9) 0.12 (2.0)
T6058-576-EPR-00 EPR
T6036-365-NBR-00 T6036 365:1 NBR 36500 (252, 2520) 0.19 (3.2)
T6036-365-EPR-00 EPR
T6025-254-NBR-00 T6025 254:1 NBR 25250 (175, 1750) 0.28 (4.5)
T6025-254-FKM-00 FKM
T6025-254-EPR-00 EPR
T6016-163-NBR-00 T6016 163:1 NBR 16250 (113, 1130) 0.43 (7.1)
T6016-163-FKM-00 FKM
T6016-163-FFKM-00 FFKM
T6016-163-EPR-00 EPR
T6012-125-NBR-00 T6012 125:1 NBR 12500 (87, 870) 0.56 (9.2)
T6012-125-FKM-00 FKM
T6012-125-FFKM-00 FFKM
T6012-125-EPR-00 EPR
T6010-101-NBR-00 T6010 101:1 NBR 10000 (69, 690) 0.70 (11.5)
T6010-101-FKM-00 FKM
T6010-101-FFKM-00 FFKM
T6010-101-EPR-00 EPR
T6006-064-NBR-00 T6006 64:1 NBR 6300 (44, 440) 1.11 (18.1)
T6006-064-FKM-00 FKM
T6006-064-FFKM-00 FFKM
T6006-064-EPR-00 EPR
T6005-047-NBR-00 T6005 47:1 NBR 4800 (34, 340) 1.49 (24.4)
T6005-047-FKM-00 FKM
T6005-047-FFKM-00 FFKM
T6005-047-EPR-00 EPR
T6003-032-NBR-00 T6003 32:1 NBR 3200 (23, 230) 2.20 (36.0)
T6003-032-FKM-00 FKM
T6003-032-FFKM-00 FFKM
T6003-032-EPR-00 EPR



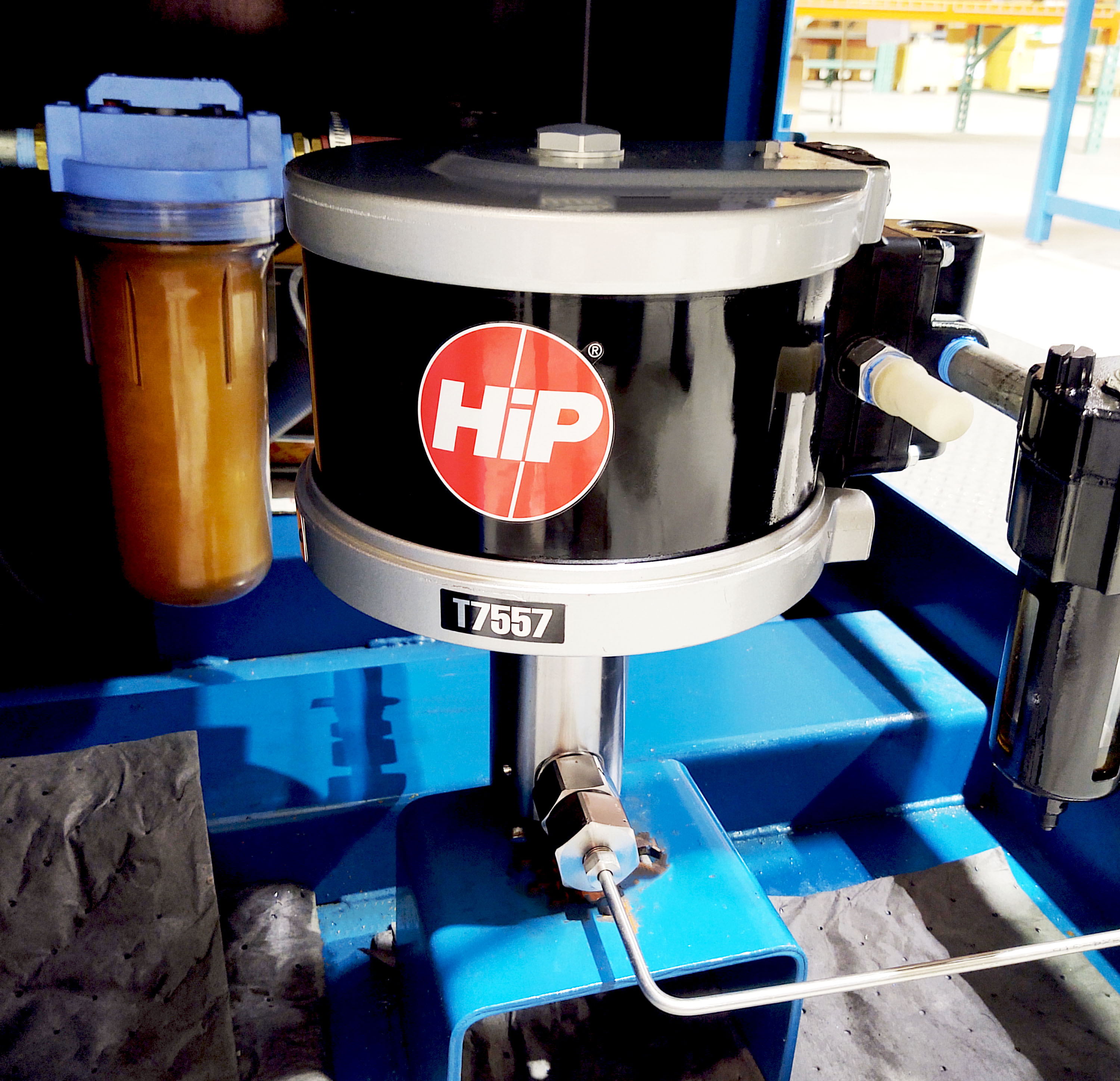

T7500 Series Pumps

Features
  • 7.5 inch air cylinder
  • Available in 9 different pump ratios
  • 2.5 inch pump stroke
  • Maximum operating pressure of 68,000 psi (4690 bar)
  • Maximum flow rate of 177 in3/min (2.9 lpm) at 80 CPM
  • Inlet air pressure 15 psi to 100 psi (1 to 7 bar)
  • Four different plunger seal materials
*80 CPM recommended for optimal pump seal life

Please scroll to the sides when using small displays
Part NumberModelRatioSeal
Material
Maximum Working
Pressure psi
(Mpa, bar)
Maximum Pneumatic
Inlet Pressure
psi (Mpa, bar)
Displacement
per Stroke
in3 (ml)
T7568-900-NBR-00 T7568 900:1 NBR 68000 (469, 4690) 75 (0.5, 5) 0.12 (2.0)
T7568-900-EPR-00 EPR
T7557-571-NBR-00 T7557 571:1 NBR 57100 (394, 3940) 100 (0.69, 6.9) 0.19 (3.2)
T7557-571-EPR-00 EPR
T7539-397-NBR-00 T7539 397:1 NBR 39,500 (273, 2730) 0.28 (4.5)
T7539-397-EPR-00 EPR
T7525-255-NBR-00 T7525 255:1 NBR 25500 (176, 1760) 0.43 (7.1)
T7525-255-FKM-00 FKM
T7525-255-EPR-00 EPR
T7519-195-NBR-00 T7519 195:1 NBR 19500 (135, 1350) 0.56 (9.2)
T7519-195-FKM-00 FKM
T7519-195-EPR-00 EPR
T7516-158-NBR-00 T7516 158:1 NBR 15,750 (109, 1090) 0.70 (11.5)
T7516-158-FKM-00 FKM
T7516-158-FFKM-00 FFKM
T7516-158-EPR-00 EPR
T7510-100-NBR-00 T7510 100:1 NBR 10000 (69, 690) 1.11 (18.1)
T7510-100-FKM-00 FKM
T7510-100-FFKM-00 FFKM
T7510-100-EPR-00 EPR
T7507-074-NBR-00 T7507 74:1 NBR 7400 (52, 520) 1.49 (24.4)
T7507-074-FKM-00 FKM
T7507-074-FFKM-00 FFKM
T7507-074-EPR-00 EPR
T7505-050-NBR-00 T7505 50:1 NBR 5000 (35, 350) 2.20 (36.0)
T7505-050-FKM-00 FKM
T7505-050-FFKM-00 FFKM
T7505-050-EPR-00 EPR

...

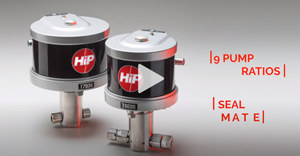

T-Series Intro Video

T-Series Pump

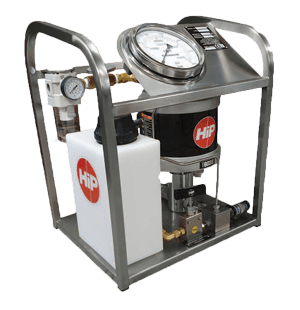

Power Packs

Learn More

PT2020
Automated
Pump Controller

Learn More

Bolt Tensioning
Power Packs


Learn More

eTensifer Electric
Pump System


Learn More

For technical support on TSeries Pumps, and Sprague products, please contact: pumpsales@highpressure.com
