Lightweight, Precision, Power Pack (ID=196)

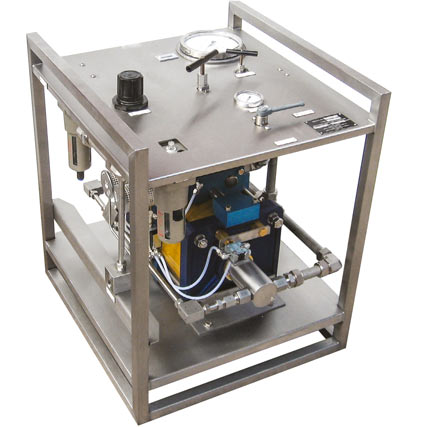

The new HiP PortaPack has been designed specifically for the offshore pressure testing market. Utilizing an SC L3 Series air driven pump, this power pack has six ratios, of which the highest (-125) can reliably generate pressures up to a maximum of 15,500 psi using either oil or water as the hydraulic medium. Operating air pressure varies from 15 psi to 125 psi with air drive consumption between 5 and 15 scfm.

All pump wetted parts are stainless steel as standard with optional seal materials available for special fluids or applications. The L3 Series pump is mounted on a stainless steel tubular frame and comes complete with a 1/4" BSPF air filter/ regulator, 63mm dia air pressure gauge and on/off air valve.

A tough 1.1-gallon plastic reservoir complete with an integral suction strainer and filler/breather provides the pump liquid source. High pressure gauge, accurate to +/- 1% FSD, dual scale psi/bar, and interconnecting stainless steel pipework and/or nipples. HP outlet pressure connection is 1/4 NPTF for models up to -65 and for ratio -125 an A.E. style port is provided. An optional hand lever attachment allows for manual operation and is ideal for locations without an air supply or where precision pressure control is required.

Features

  • Lightweight - only 20lbs dry
  • Portable - 19 3/4" long x 12 1/2" deep x 233/4" high
  • Robust stainless steel tubular framework
  • Each unit is factory pressure tested with test certificates available upon request
  • Option for ATEX-approved version
