PT2020 Pressure Testing Controller Systems

for Air Driven High Pressure Pumps

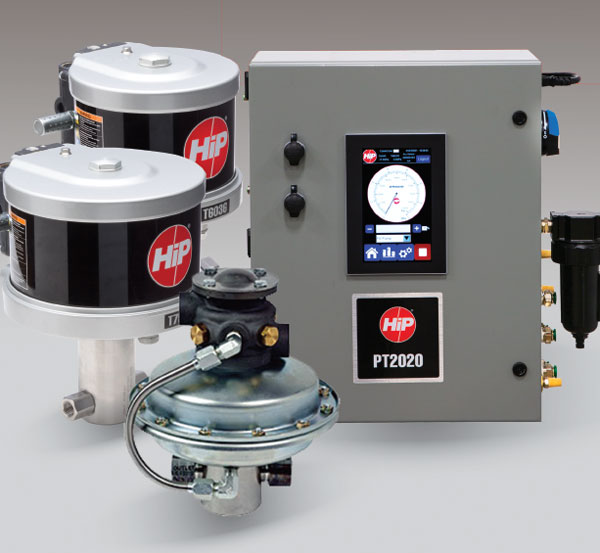

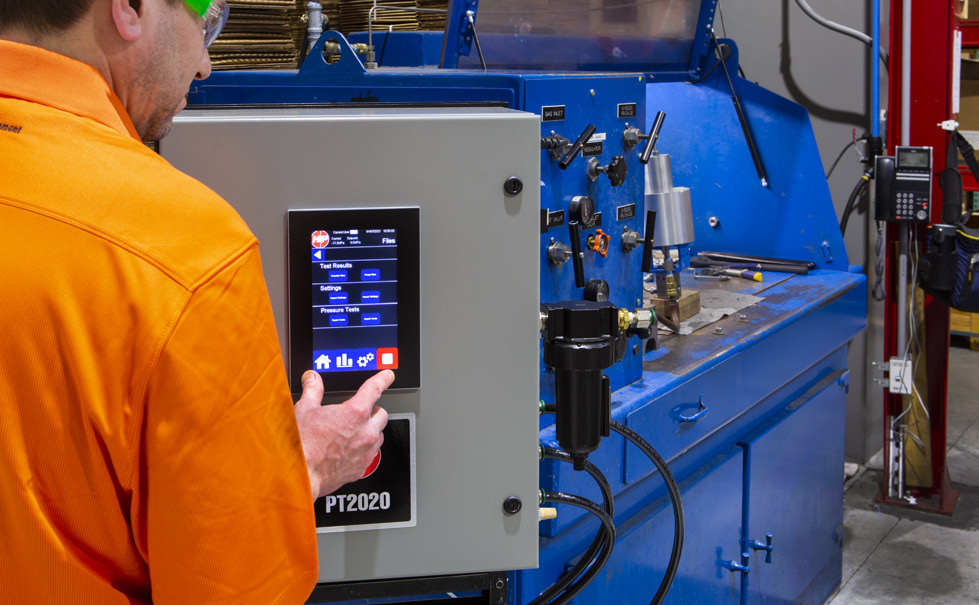

High Pressure Equipment Company introduces the first-of-its-kind Automated Controller System for air-driven high pressure hydraulic pumps. The new PT2020 Triple Pump Controller is designed to provide automated pressure control for a wide range of hydrostatic testing, including test benches that utilize three different pumps for specific operations in their pressure testing. Operators simply setup their test, press start and walk away... the PT2020 will automatically run the test, give a pass/fail reading and generate a test certification report.

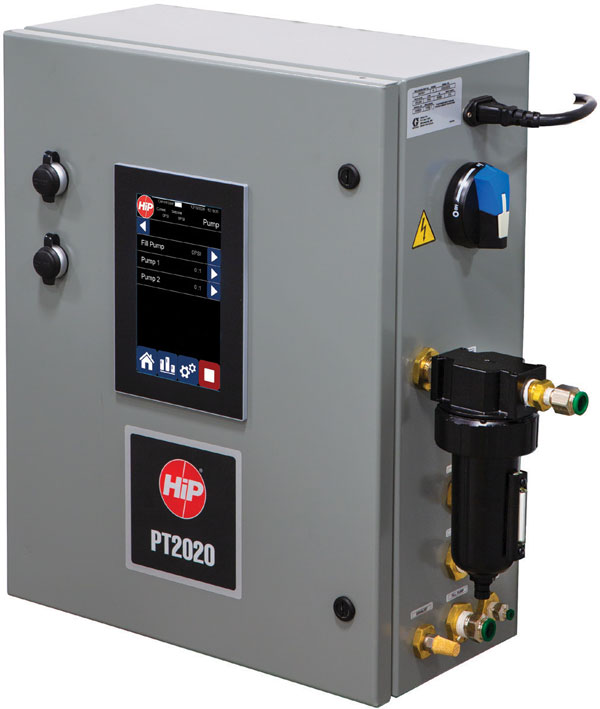

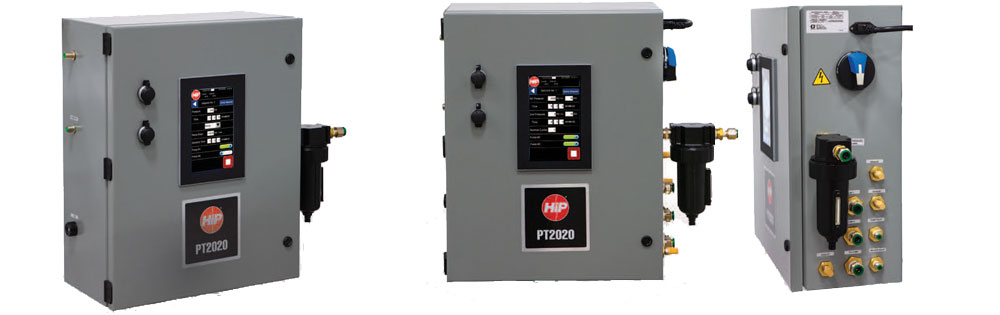

The plug'n play PT2020 is an easy-to-use upgrade for any existing test bench using up to three manual pneumatic intensifier pumps and comes in five pressure ratings up to 75,000 psi. The PT2020 features an intuitive touch screen interface making test setup fast and easy. HiP's new pump controller is highly accurate and will save you money by freeing personnel to do other tasks while conducting hydrostatic tests.

PT2020 Features:

Industry-first automated controller for air-driven hydraulic pumps
Automated pressure control for hydrostatic test benches
Controls up to three different pumps simultaneously - pump 1 fill (on/off), pump 2 pressure control and pump 3 pressure control
Pressure cycle testing allows for multiple pressure cycles on a part from low to high pressure
Plug'n play upgrade for any pneumatic intensifier pump
Five pressure classes: 10,000 psi | 25,000 psi | 40,000 psi | 60,000 psi | 75,000 psi
Automated test certification reports
Easy-to-use touch screen interface
Simply setup test, hit start and walk away
Highly accurate
Control for a Dump Valve and Isolation Valve
FTP functionality allows PC to pull files from controller
Pressure alarm

Automated Pressure Testing

Manual Pressure Test

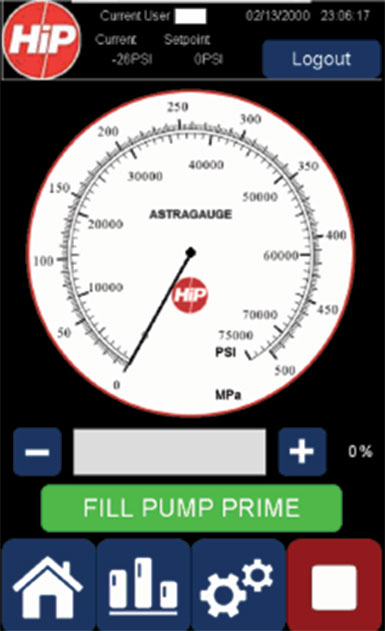

Simply select target pressure and ratio of pump and controller regulates air volume sent to pump and completes test

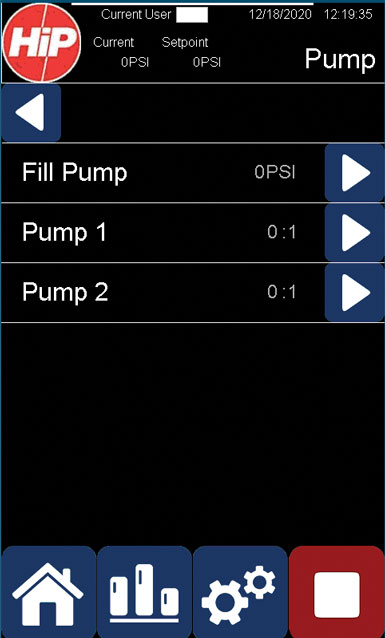

3 Pump Controller Test

New Triple Pump Function allows for control of pressure test benches using 3 pumps (see typical application below)

Precision Ramp Test

Ramp test allows for a pressure test to rise at a precise rate, such as increasing pressure at 500 psi/second

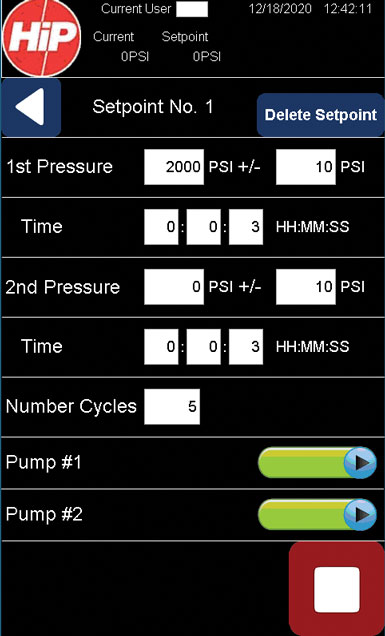

Pressure Cycle Test

Automated life cycle test running multiple pressure cycles from low to high pressure

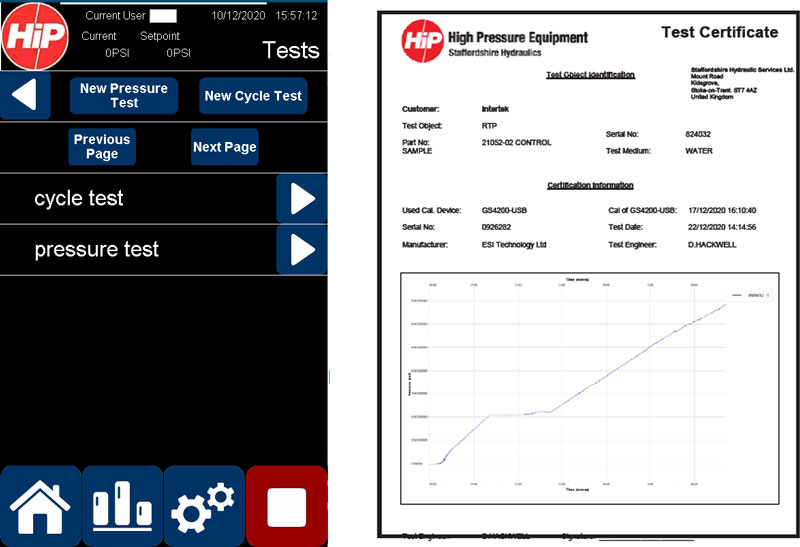

Reporting & Test Certificate

Predefine and store up to 100 unique pressure tests and controller will give automated pass/fail for test. Downloadable reports provide documentation and certification of test.

Typical 3 Pump Hydrostatic Test Bench Application

In order to maximize efficiency and prolong the service life of high pressure hydraulic pumps, test benches often utilize multiple pumps for specific functions. The Triple Pump PT2020 allows operator to program a test using three pumps and walk away. The controller will run the test and provide a pass/fail report.

Pump 1 - Low pressure pump used to fill the item being tested
Pump 2 - Medium pressure pump drives the pressure to a specific setting
Pump 3 - High pressure pump delivers final test pressure

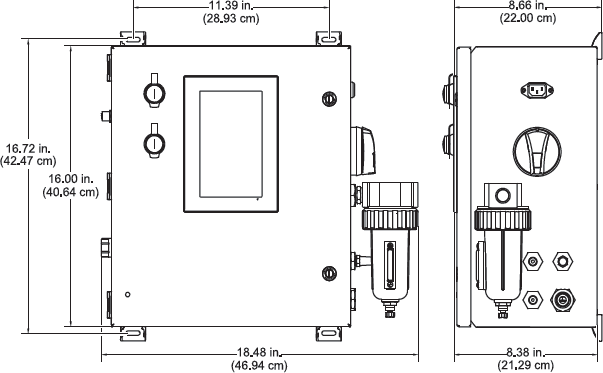

PT2020 Single Pump Controller

Part Number	Cord Set (Region)	Pump Size (psi)
25N950	US	10,000
25N951	US	25,000
25N952	US	40,000
25N953	US	60,000
25N954	US	75,000
25D815	UK	10,000
25D816	UK	25,000
25D817	UK	40,000
25D818	UK	60,000
25D819	UK	75,000
25D820	EU	10,000
25D821	EU	25,000
25D822	EU	40,000
25D823	EU	60,000
25D824	EU	75,000
25D825	AU	10,000
25D826	AU	25,000
25D827	AU	40,000
25D828	AU	60,000
25D829	AU	75,000

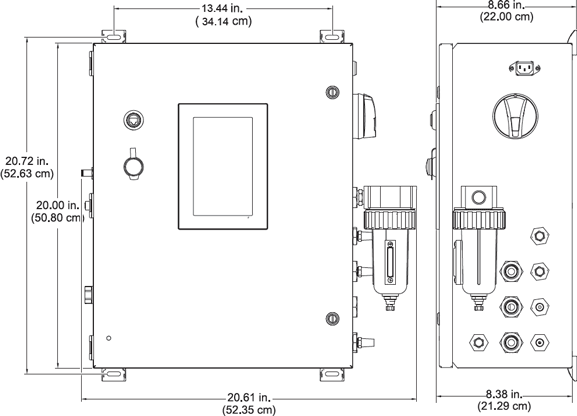

PT2020 Triple Pump Controller

Part Number	Cord Set (Region)	Pump Size (psi)
25S015	US	10,000
25S016	US	25,000
25S017	US	40,000
25S018	US	60,000
25S019	US	75,000
25S000	UK	10,000
25S001	UK	25,000
25S002	UK	40,000
25S003	UK	60,000
25S004	UK	75,000
25S005	EU	10,000
25S006	EU	25,000
25S007	EU	40,000
25S008	EU	60,000
25S009	EU	75,000
25S010	AU	10,000
25S011	AU	25,000
25S012	AU	40,000
25S013	AU	60,000
25S014	AU	75,000
