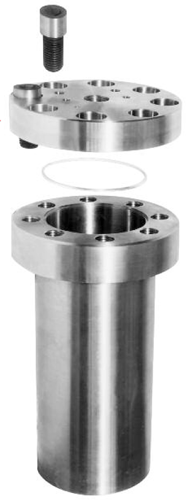

Bolted Closure Reactors (ID=21)

The Bolted Closure Reactors are designed for use up to 650°F (343°C) at the working pressures indicated. Standard material for the body, cover and gasket is Type 316 stainless steel. Standard O-rings may be used in place of the metal gasket when temperatures permit.
     Standard connections include two high pressure (coned and threaded) tubing connections for 1/4" O.D. tubing (HF4) located in the cover. Contact factory if other connections and/or locations are preferred.
     Other items available include:

  • Heating mantle. Removable quartz fabric cylinder column type. 110 volt, single phase. Bolted closure reactors are supplied with mounting bolt holes on the bottom surface.
  • Thermowell for use with 1/16" thermocouple
  • Safety head located in side flange with rupture disc (see Page 35)

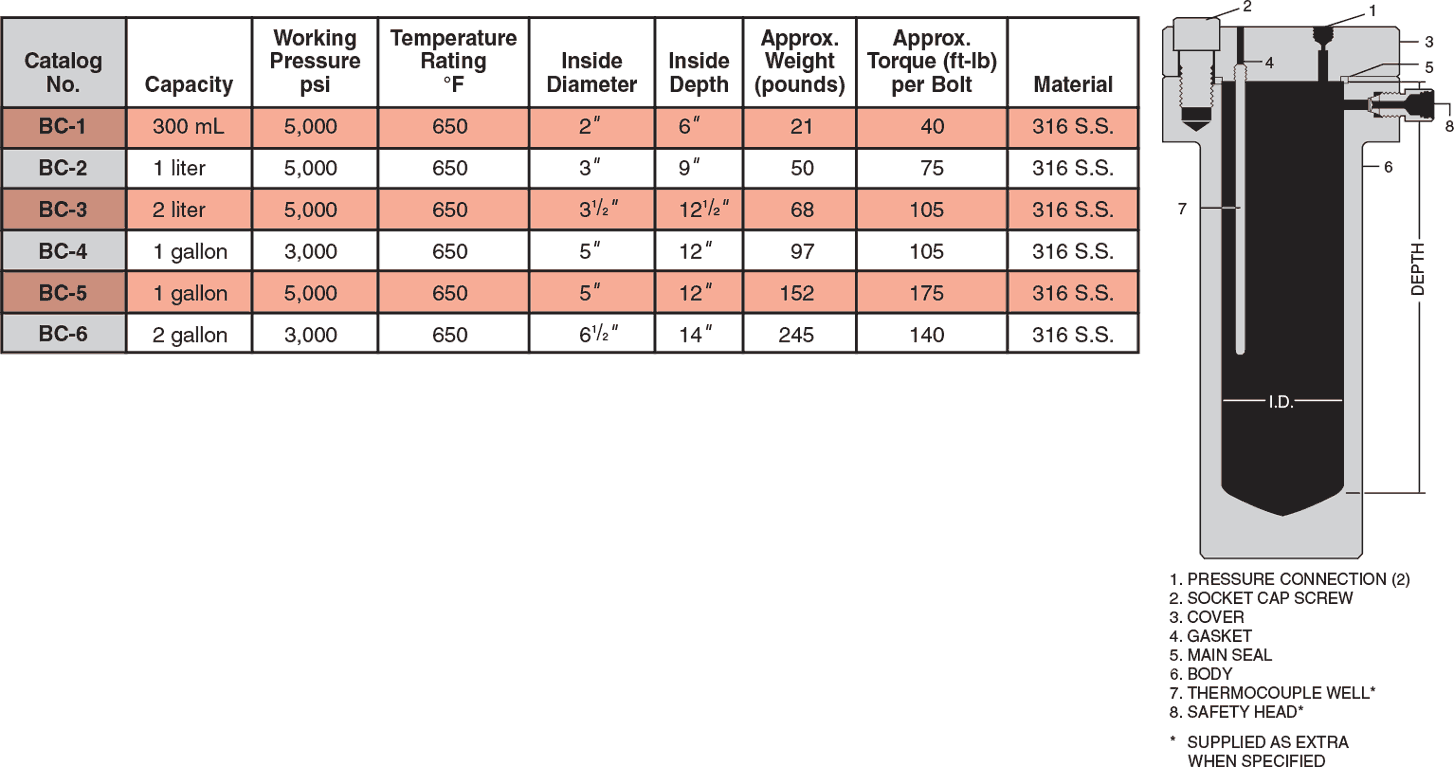

Bolted Closure Reactors

ID: 134: Bolted Closure Reactors:5:1:9

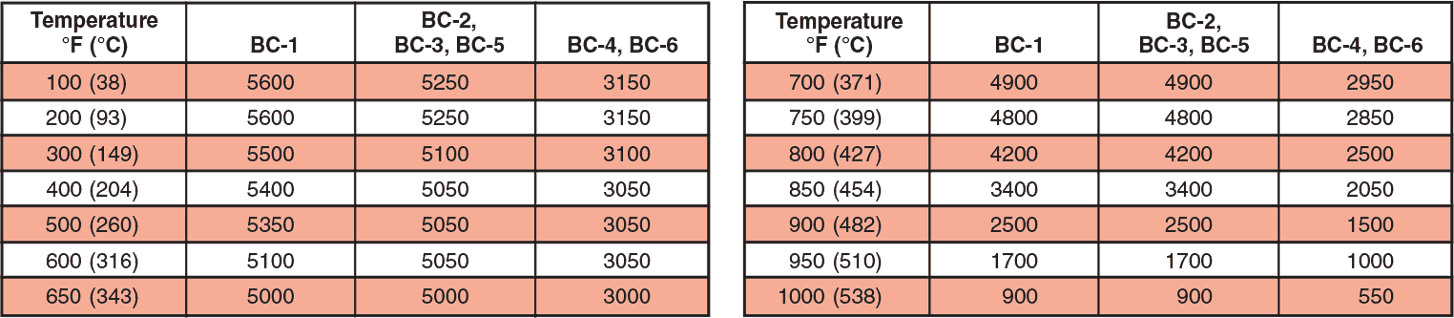

Pressure Ratings
Bolted Closure Reactors (psi) at Elevated Temperatures
ID: 403: Pressure Ratings
Bolted Closure Reactors (psi) at Elevated Temperatures:5:2:9
