Clover Leaf Reactors

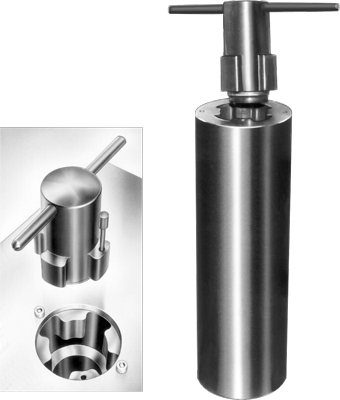

The "Clover Leaf" Closure Reactors provide maximum ease for quick opening or closing of the cover. The cover is simply inserted into the body and then rotated one-eighth of a turn. A safety locking pin is provided to insure that the cover is properly positioned and locked.
Standard material of construction for these reactors is heat treated 4340 alloy steel. Standard connections include two high pressure (coned and threaded) 1/4" O.D. tubing connections (HF4).
Mounting holes are provided in the top and bottom of the body for securing or lifting.

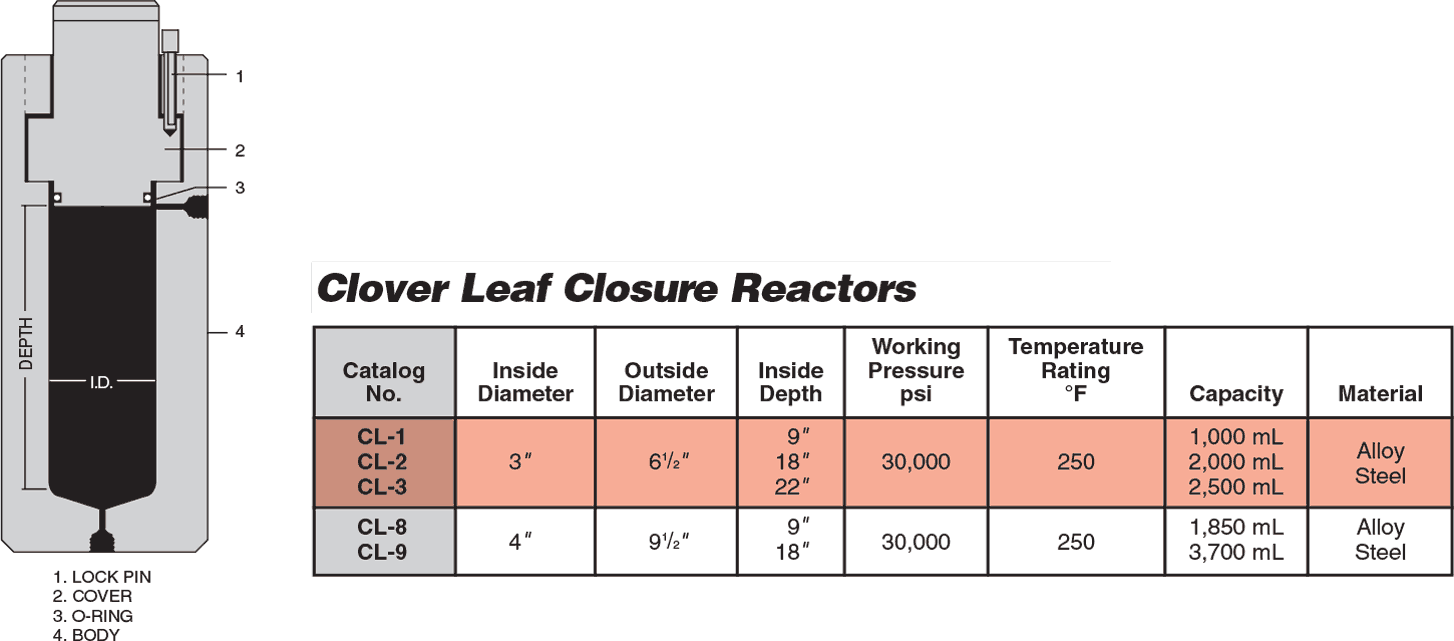

Clover Leaf Closure Reactors
