Mini-Hippo Piston Air Operators for Remote Operation (ID=92)

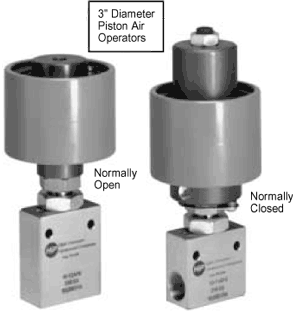

Mini-Hippo Air Operators are available for both normally open service (spring to open/air to close) and for normally closed service (air to open/spring to close). These piston air operators provide remote automatic on/off operation of valves and can be controlled by means of an air regulator, an electrical solenoid, or a manual low pressure valve in the user's air supply line. Air inlet is 1/8" NPT. Air pressure requirement ranges from 50 to 90 psi.
     The Mini-Hippo air operators may be supplied with the valves and operating pressures shown in table.
     To order simply specify catalog number of valve and type operation required.

  • Mini-Hippo 30-11HF4(normally closed)
  • Mini-Hippo 10-12AF6 (normally open)
  • Mini-Hippo 10-12AF4(normallyopen/normally closed)
  • Stems & Seats
  • Carbide (for cyclic service)
    Stellite (for cyclic service)
    17-4 (for cyclic service)
  • Valve Bodies
  • Hastelloy C, Hastelloy B
    Inconel 600, Inconel 625
    Incoloy 800, Incoloy 825
    Titanium Grade 2, Titanium 6AL4V
    Nickel
    Monel
  • Packing
  • PolyPak
  • Temperature Considerations
  • Extended stuffing box for temperatures from -423°F to 1,200°F (medium and high pressure connections only)

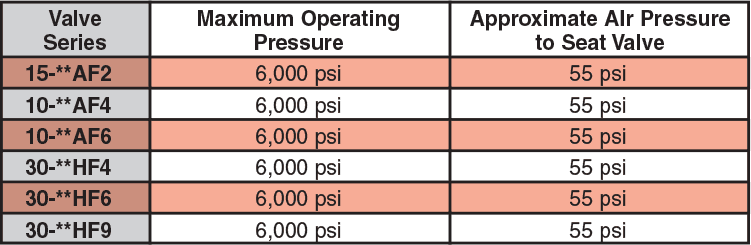

Normally Open (Spring To Open/ Air To Close)

ID: 196: Normally Open (Spring To Open/ Air To Close):1ao:1:6

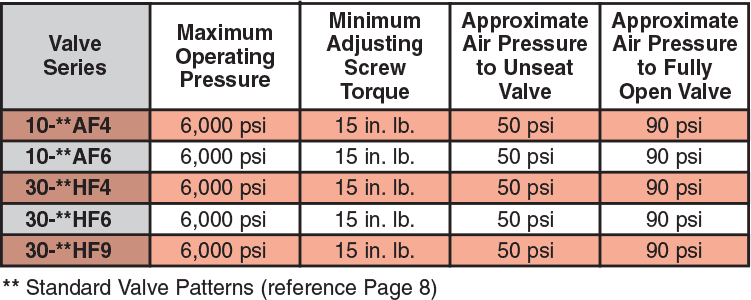

Normally Closed (Air To Open/ Spring To Close)

ID: 197: Normally Closed (Air To Open/ Spring To Close):1ao:2:6
