Safety Heads
![](./images/catimages/36photo1.gif)
A choice of three safety head designs is available, male inlet, female inlet (straight), and tee type. The male inlet design can be inserted directly into the tubing connections of valves and various fittings such as tees and crosses, or located in pressure vessels.
Outlet connections on all sizes are 3/8" pipe (NPT). This outlet may be connected to a suitable discharge line to vent pressure to a safe location in the event of bursting of the rupture disc. Torque required for sealing rupture discs will range from 40 to 90 foot pounds, depending upon pressure and media being used.
Material of bodies and hold down nuts is high tensile
316 stainless steel. Standard tubing glands and collars
are provided unless otherwise specified.
Note: Rupture discs are not included and must be ordered as a separate item.
CE marked safety heads are now available, add -CE to end of standard part number. Consult factory for pricing.

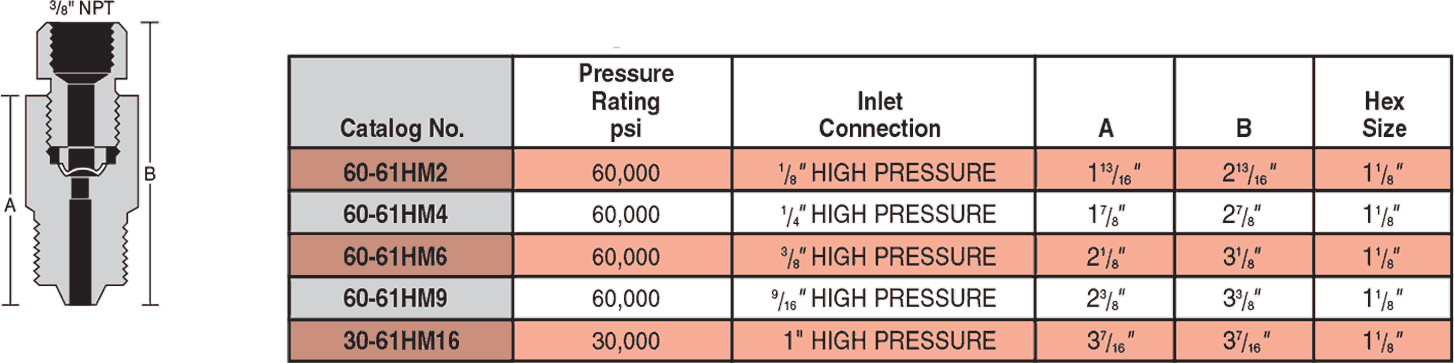

Male Inlet Safety Heads
![ID: 63: Male Inlet Safety Heads:36:1:3](./images/catimages/36chart1.png)
Tee Type Safety Heads
![ID: 64: Tee Type Safety Heads:36:2:3](./images/catimages/36chart2.png)

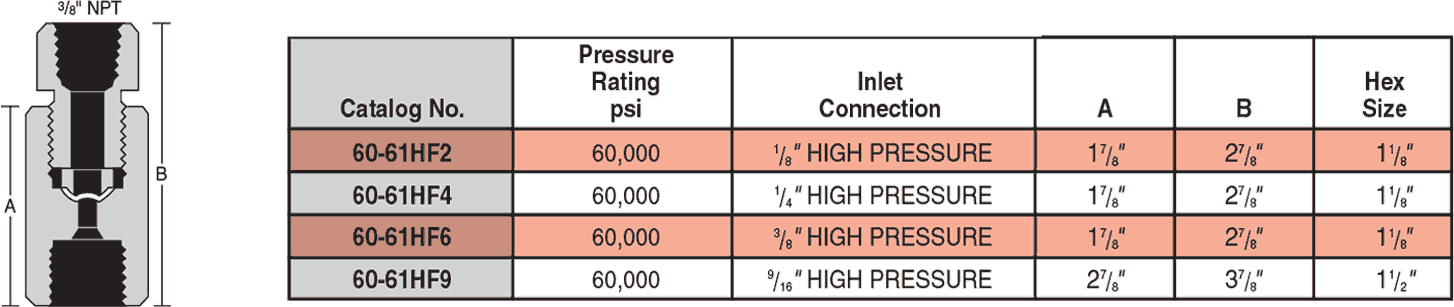

Female Inlet (Straight) Safety Heads
![ID: 65: Female Inlet (Straight) Safety Heads:36:3:3](./images/catimages/36chart3.png)
