Ball Valve Actuators

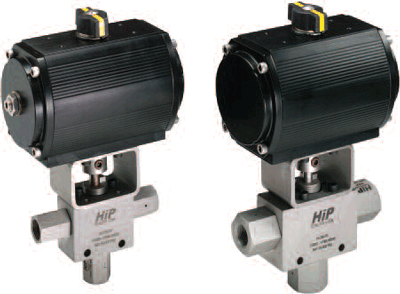

High Pressure Equipment Company offers air operated actuators to accommodate remote operation. NOTE: These air operators are only for use with two-way and three-way diverter style valves.
To order:simply specify the appropriate ball valve catalog number and add the suffix "-TSR8" for air to open/spring to close, or "-TDA8" for air to open and close (double acting) or TSR20 for 0.500 orifice. For trunion only.
Use TDA4 and TSR4 for floating ball style valves.
