Hydrogen Regulators

High Pressure, High Flow Pressure Reduction for H2

HiP hydrogen regulators are designed to meet the high pressure, high flow performance requirements for stable system dispense at elevated flow rates.

Each hydrogen pressure regulator is rated for inlet pressures up to 15,000 psig (1034.2 bar) and is available to meet flow requirements of Cv 1.0 (HIP-15PR) or 0.5 (HIP-15PR-0.5).

SPECIFICATIONS

Max Inlet Pressure 15,000 psig (1,034.2 bar)
Max Outlet Pressure  15,000 psig (1,034.2 bar)
Flow (Cv)  18 GPD (68 LPD)
Operating Temperature  -40°F to 200°F (-40°C to 93°C)
Materials of Construction
Body 316 Stainless Steel
Main Valve 316 Stainless Steel
Housing, Air Loader  6061-T6 Aluminum
Wetted Parts, Other  316 Stainless Steel
0-Ring  Polyurethane
Porting
Inlet/Outlet Porting Options  3/8 in Medium Pressure / 9/16 in Medium Pressure
Vent Port  1/4 in inlet/outlet port type
Gauge Port  1/4 in FNPT
Load Port  1/4 in NPT
regulators

FEATURES AND BENEFITS

  • Offers precise control over the hydrogen gas pressure, minimizing fluctuations and providing stable output pressure.
  • Materially compatible with hydrogen gas to ensure performance, durability and longevity.
  • Equipped with standard threading options for easy integration into various hydrogen gas systems and setups.

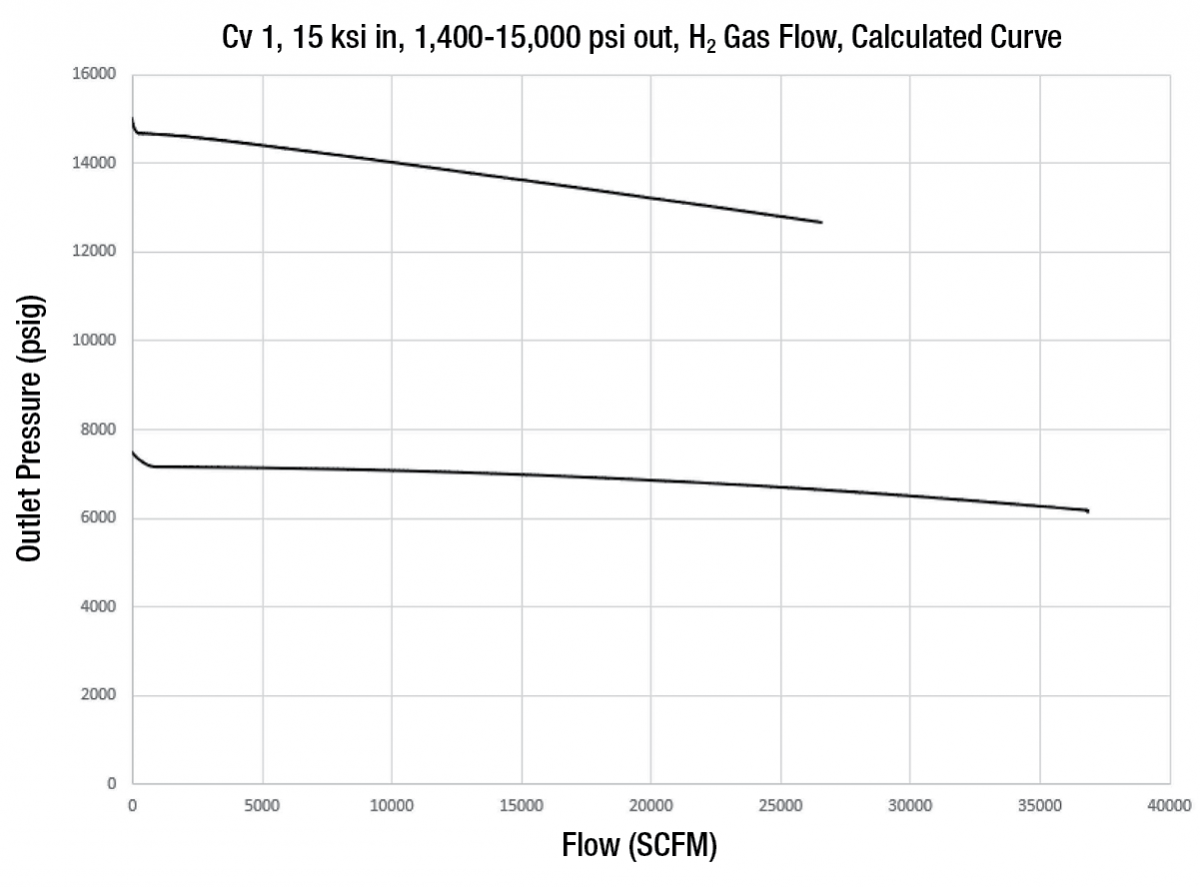

pressure_flow_chart

TYPICAL APPLICATIONS

  • Hydrogen Refueling Stations
  • Hydrogen Storage Systems
  • Hydrogen Purification
  • Laboratory and Testing
