Medium and High Pressure Valves (ID=338)

Medium Pressure (coned & threaded) type connections for 1/4", 3/8", 9/16", 3/4", and 1" O.D. tubing.
Non-rotating tip stems are standard on LF4, LF6 and LF9 for on-off service and ensure long life on valve seats. Regulating tip stems are available for all valves at no additional cost, add - REG to part number.
Non-rotating stems are standard. Vee, Regulating and Micro-metering stem configurations are available.
Glands and collars for tubing are supplied with each valve unless otherwise requested ( See Glands and Collars).
Materials include high tensile type 316 stainless steel bodies. Nitronic 50 and MP35N are used for stems and trim components.
Air operators for remote control operation are available for all valves. Refer to Air Operator section of catalog for additional data).
Extreme temperatures can be accommodated by using extended stuffing boxes (See Valve Options).

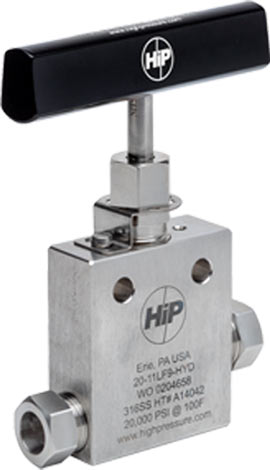

Medium Pressure Valves

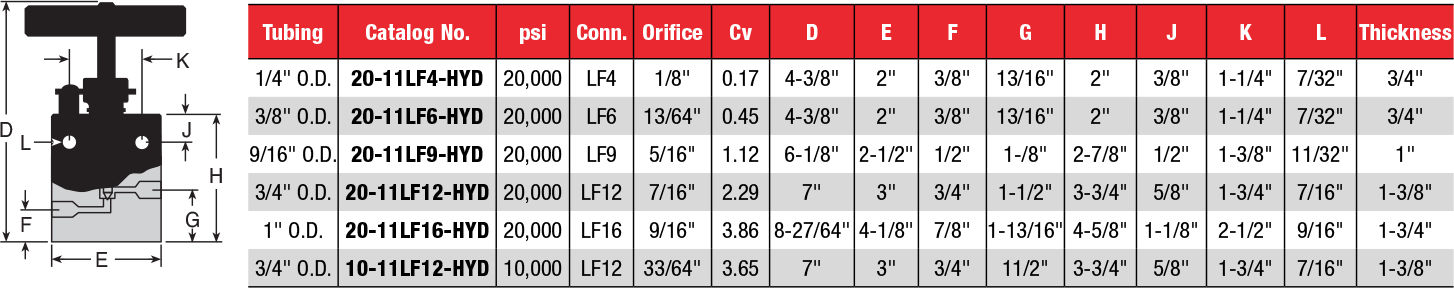

20,000 psi Service - Two Way Straight Valves

ID: 406: Medium Pressure Valves20,000 psi Service - Two Way Straight Valves:338:1:12

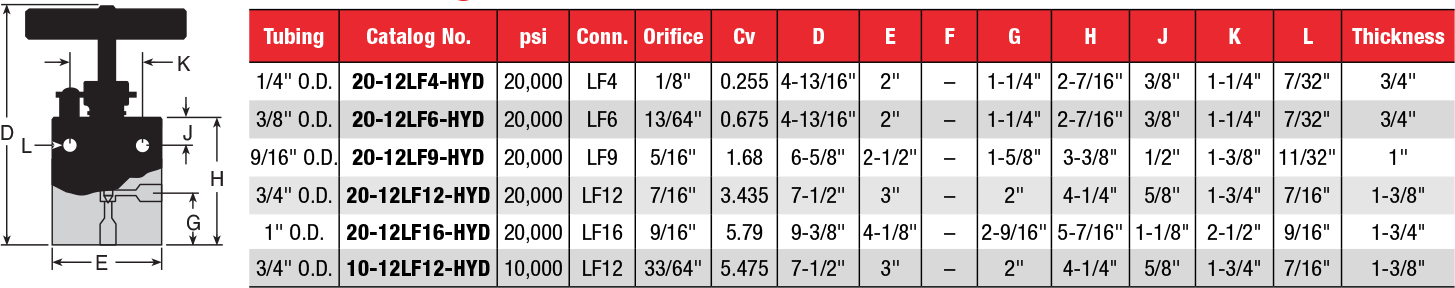

Two Way Angle Valves

ID: 405: Two Way Angle Valves:338:2:12

High Pressure Valves

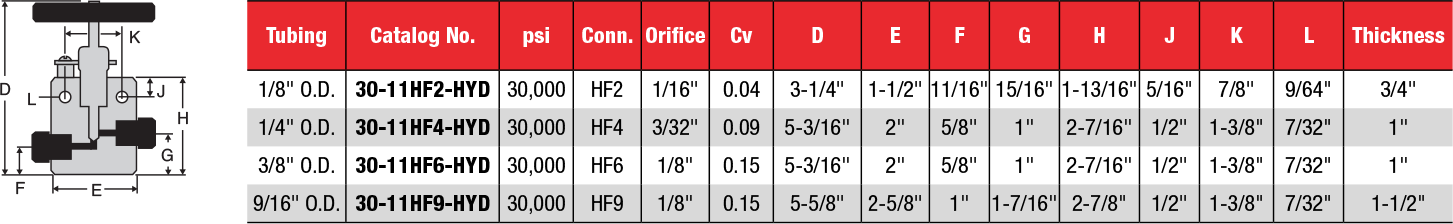

30,000 psi Service - Two Way Straight Valves

ID: 407: High Pressure Valves30,000 psi Service - Two Way Straight Valves:338:3:12

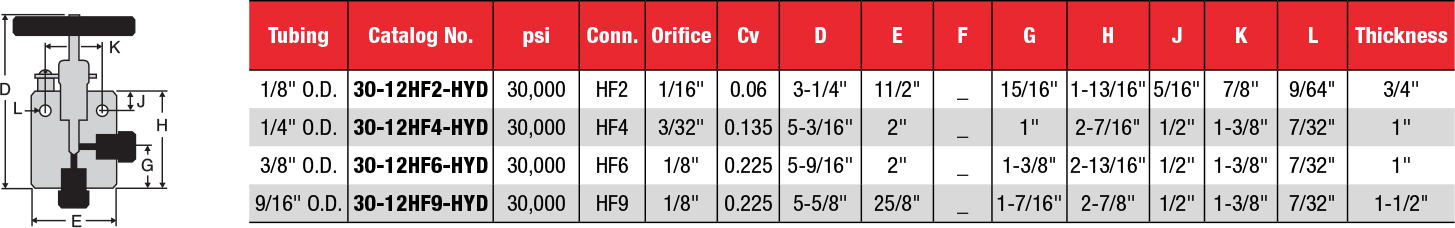

Two Way Angle Valves

ID: 408: Two Way Angle Valves:338:4:12

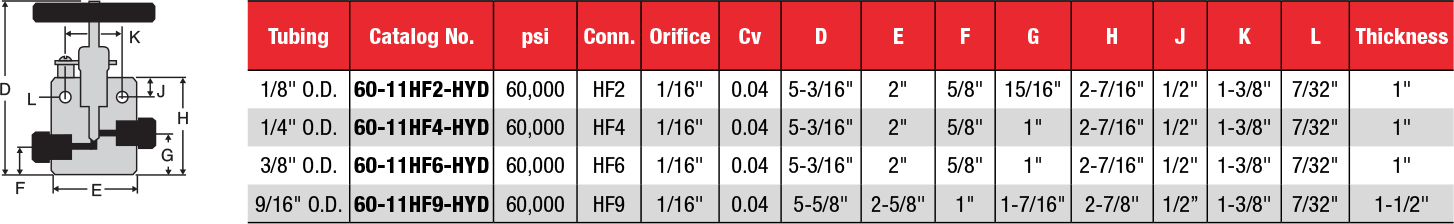

60,000 psi Service - Two Way Straight Valves

ID: 409: 60,000 psi Service - Two Way Straight Valves:338:5:12

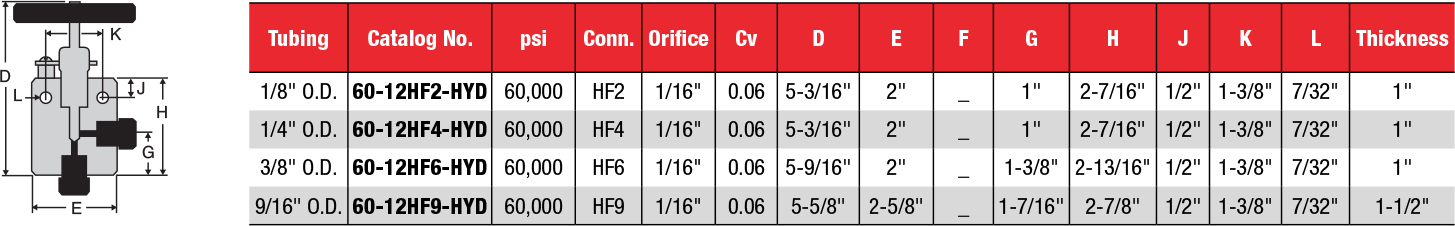

Two Way Angle Valves

ID: 410: Two Way Angle Valves:338:6:12
