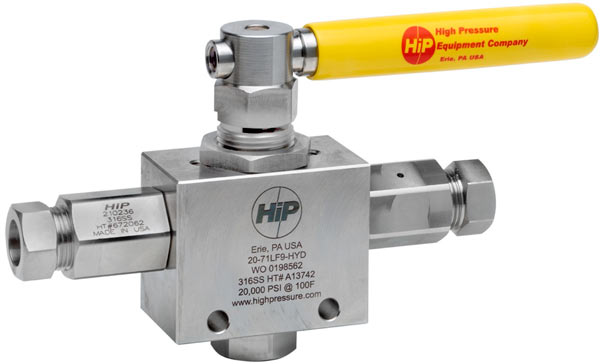

Trunion Style Ball Valves

10,000, 15,000 and 20,000 psi Service

High Pressure Equipment Company introduces its TRUNION STYLE ball valves for effective shut-off of liquid and gas flow through 20,000 psi @ 400°F maximum. Our offering features a trunion ball design, making this type of valve ideal for severe duty applications. This valve is available in two-way or three-way configurations with orifices of .187", .375", .500" or 1.000". The two-way ball valve offers complete shut-off with a convenient 1/4 turn. The standard configuration of the three-way ball valve requires 1/2 turn to change port outlets and provides for complete shut-off. An optional diverter style three-way ball valve requires only a 1/4 turn to change the port outlets. Air operated actuators are available for remote control.


Two-Way Trunion Ball Valves - 90°

ID: 427: Two-Way Trunion Ball Valves - 90°:340:1:12



ID: 428:  :340:2:12

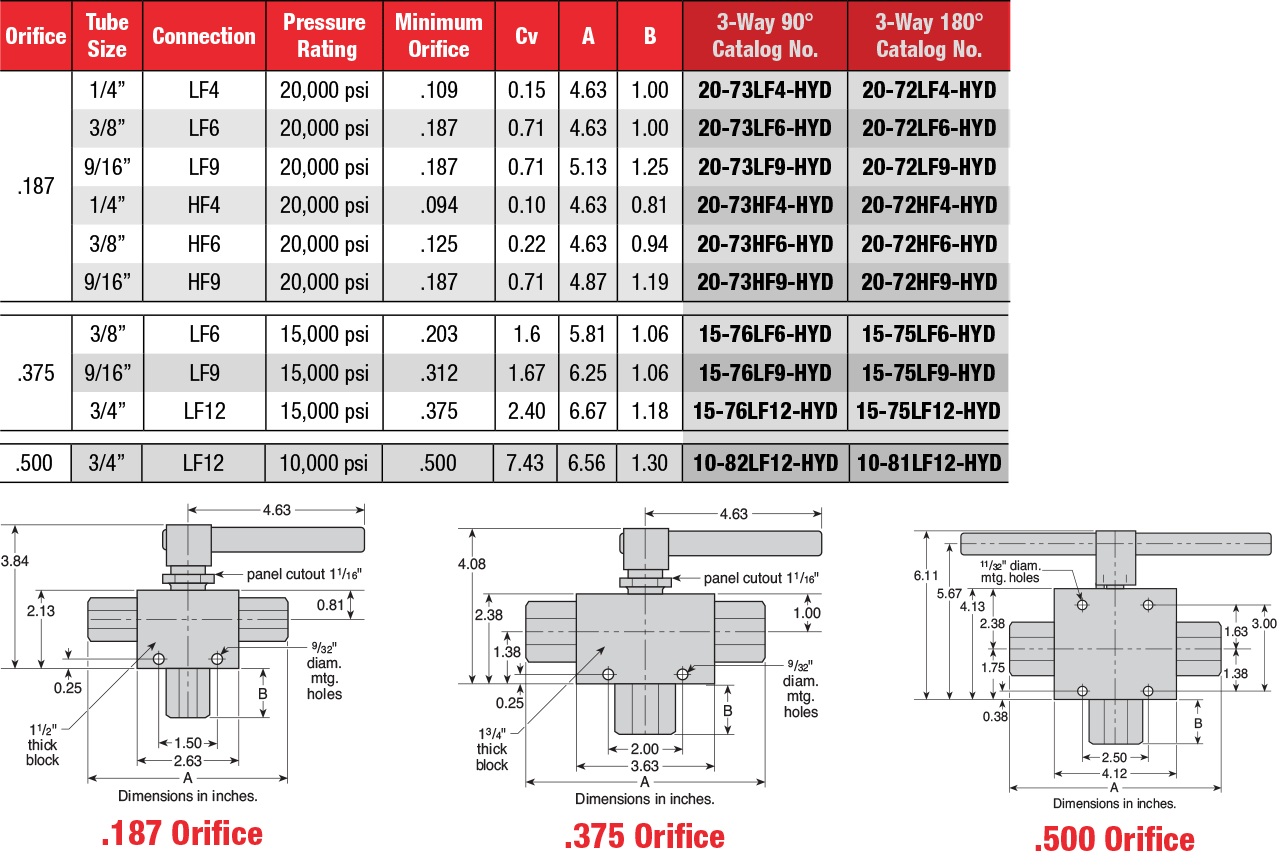

Three-Way Trunion Ball Valves
ID: 429: Three-Way Trunion Ball Valves:340:3:12
