Unions, Bulkheads & Caps

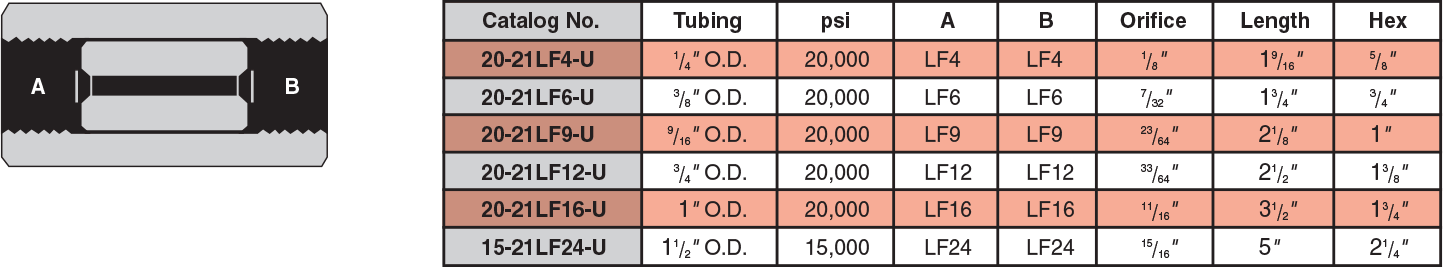

UNION COUPLINGS (SLIP TYPE)

Union (slip type) couplings are ideal for use in confined space installations. This design allows the entire coupling to be disconnected and slipped back over the tubing to facilitate assembly and disassembly. In installations where tubing is easily assembled, it is preferable (and less expensive) to use standard straight couplings (see section 12). Standard material is high tensile 316 stainless steel. Standard tubing collars and glands are provided unless otherwise specified.


Union Couplings (Slip Type)

ID: 156: Union Couplings (Slip Type):12:1:2

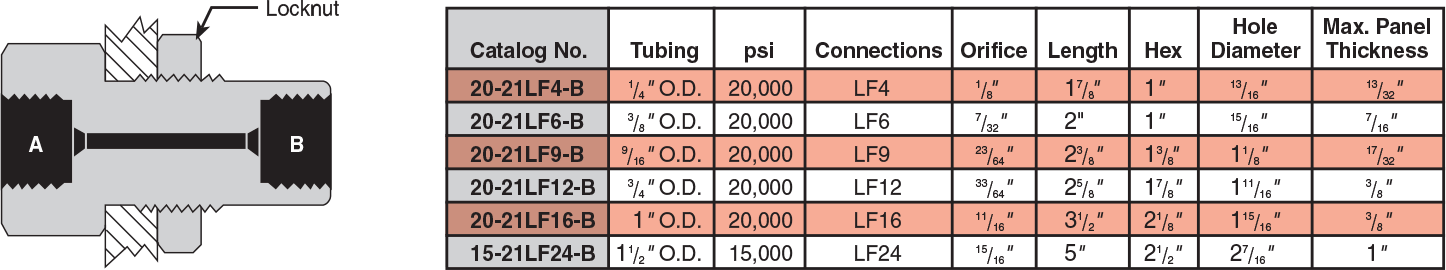

BULKHEAD COUPLINGS

Bulkhead couplings are designed specifically for passing a tubing connection through a panel or steel barricade. These couplings include a locknut as shown. Material is high tensile 316 stainless steel. Standard tubing collars and glands are included unless otherwise specified.


Bulkhead Couplings

ID: 157: Bulkhead Couplings:13:1:2

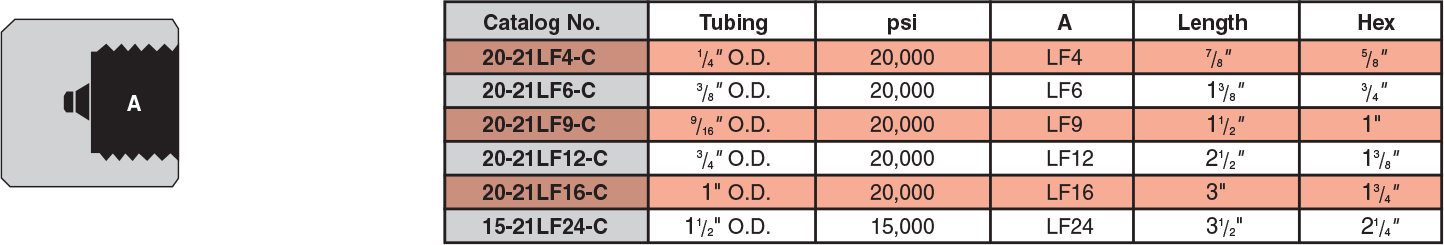

CAPS

Tubing end caps are offered for use in sealing off tubing ends either for temporary use or permanent use, such as on small volume reservoirs. Standard material is high tensile 316 stainless steel. Standard tubing collars and glands are provided unless otherwise specified.


Caps

ID: 158: Caps:14:1:2
