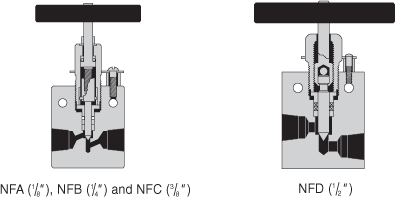

Pipe Connection Valves

FEMALE NPT/10,000 PSI
1/8" •1/4" •3/8" •1/2" NPT

Non-rotating tip stems are standard for on-off service and insure long life on valve seats. Regulating tip stems are available for all valves at no additional cost.
     Materials include high tensile Type 316 stainless steel for valve bodies, and hardened 17-4PH stainless steel for lower section stems.
     Packing is Teflon (450°F) standard with optional Viton (350°F), BUNA-N (200°F) and Grafoil (650°F) available at no additional cost.
     Air operators for remote control operation are available for all valves. (See Air Operator section of catalog).
     Air operators for remote control operation are available for all valves. (See Air Operator section of catalog).
     Extreme temperatures can be accommodated by using extended stuffing boxes (See Valve Options, page 22).

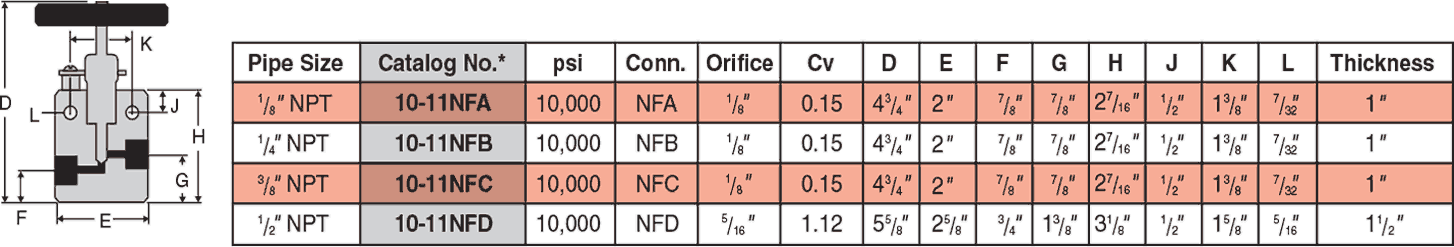

Two Way Straight Valves

ID: 18: Two Way Straight Valves:80:1:14

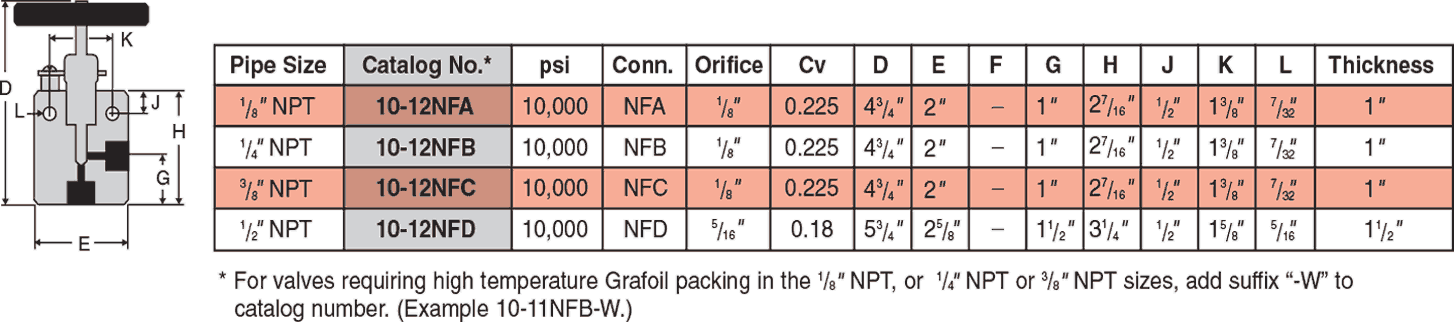

Two Way Angle Valves

ID: 19: Two Way Angle Valves:80:2:14

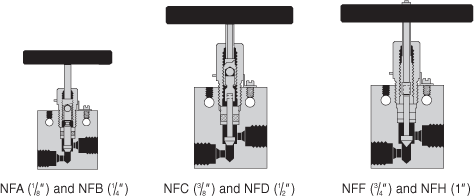

FEMALE NPT/10,000 PSI AND 15,000 PSI
1/8" •1/4" •3/8" •1/2" NPT •3/4" NPT •1" NPT

Non-rotating tip stems are standard for on-off service and insure long life on valve seats. Regulating tip stems are available for all valves at no additional cost.
     Materials include high tensile Type 316 stainless steel for valve bodies, and hardened 17-4PH stainless steel for lower section stems.
     Packing is Teflon (450°F) standard with optional Viton (350°F), BUNA-N (200°F) and Grafoil (650°F) available at no additional cost.
     Air operators for remote control operation are available for all valves. (See Air Operator section of catalog).
     Extreme temperatures can be accommodated by using extended stuffing boxes (See Valve Options, page 22).

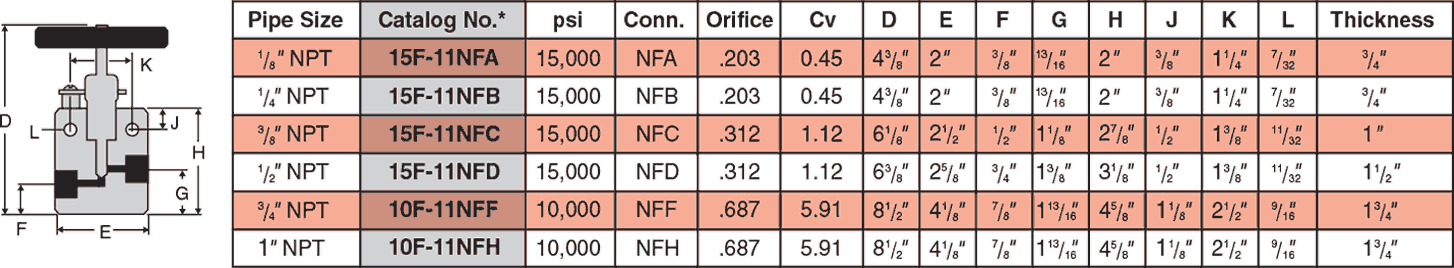

Two Way Straight Valves

ID: 20: Two Way Straight Valves:81:1:14

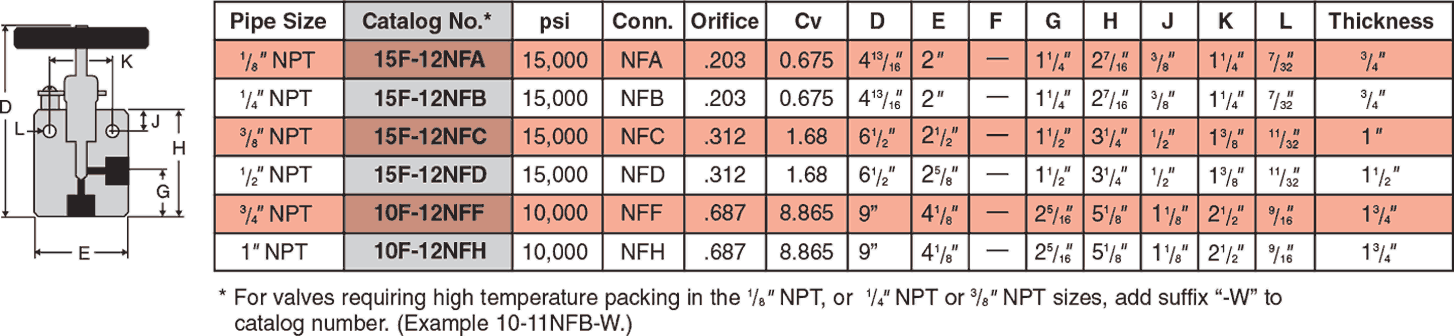

Two Way Angle Valves

ID: 21: Two Way Angle Valves:81:2:14
