Ball Valve Actuators

High Pressure Equipment Company offers air operated actuators to accommodate remote operation.
NOTE: These air operators are only for use with two-way and three-way diverter style valves.

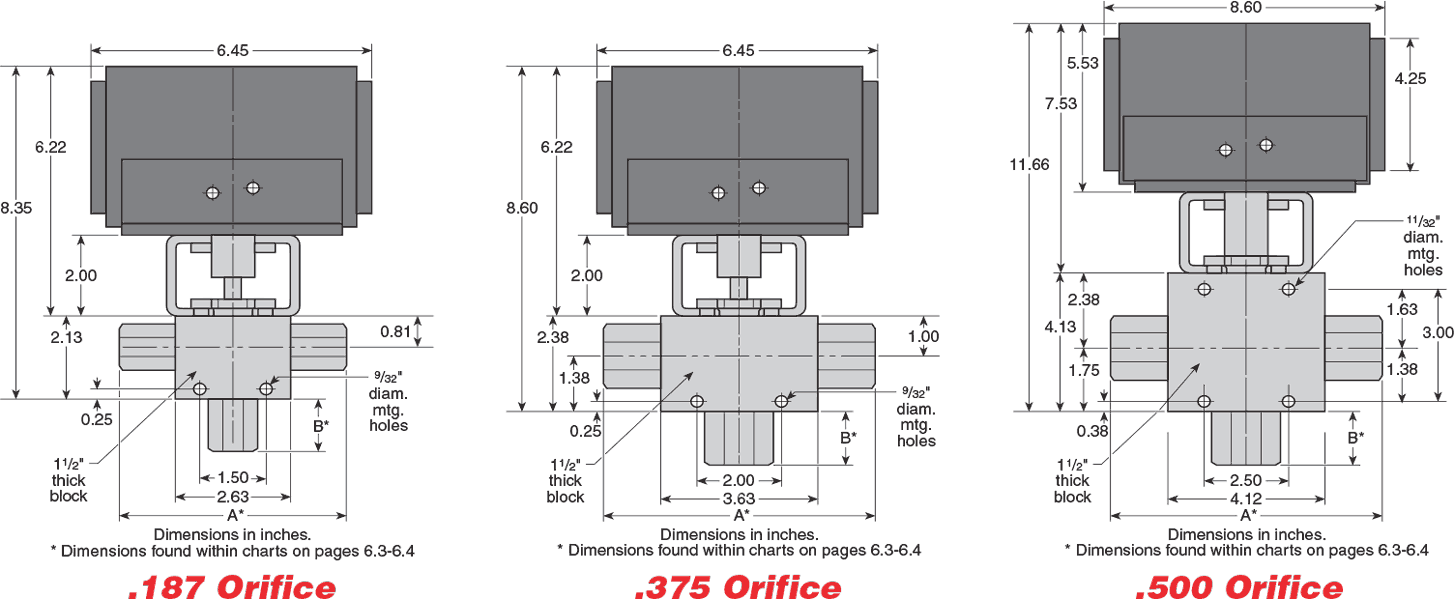

To order:simply specify the appropriate ball valve catalog number and add the suffix "-TSR8" for air to open/spring to close, or "-TDA8" for air to open and close (double acting) or TSR20 for 0.500 orifice. For trunion only.
Use TDA4 and TSR4 for floating ball style valves.

Note: Bottom port must be used as the inlet on all three-way trunion ball valves

Ball Valve Actuators
