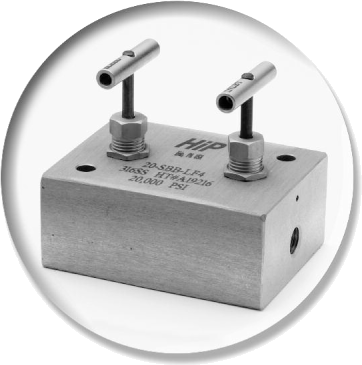

Block and Bleed Needle Valves (ID=149)

High Pressure Equipment offers Block and Bleed needle valves designed for calibration operations. Block and Bleed needle valves provide controlled flow to high-pressure hydraulic and pneumatic systems through both shut-off regulation and diversion. These needle valves deliver safe, reliable operation to 20,000 psi.* Teflon packing provides dependable leak-free service up to 400°F (204°C).

  • Tube sizes: 1/4", 3/8", 9/16" medium pressure and 1/4" FNPT, 3/8" FNPT, 1/2" FNPT
  • Non-rotating stem design
  • Type 300 stainless steel tee handles
  • Teflon packing to 400°F (204°C)
  • Optional wetted parts available
  • Optional O-rings available

Block and Bleed Needle Valves
