Double Block and Bleed Ball Valves (ID=189)

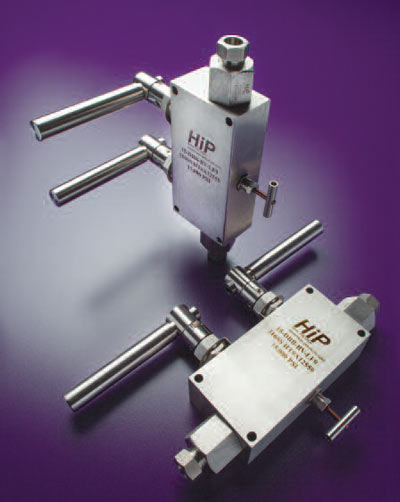

High Pressure Equipment has designed a trunion style block and bleed ball valve for calibration applications to 15,000 psi. This reliable ball valve is an excellent method to block and bleed high pressure hydraulic and pneumatic systems used for pressure monitoring and test, chemical injection and drain line isolation. This is a full port, quarter turn double ball valve.

  • Trunion style closure, ideal for severe service applications
  • .203", .250", .313" and .375" orifices
  • Tube sizes: 3/8", 9/16", 3/4", 1/4" NPT, 3/8" NPT and 1/2" NPT
  • 316 stainless steel construction
  • Viton O-rings
  • PEEK ball seats provide excellent environmental and chemical resistance
  • Optional O-rings, wetted parts and materials of construction available
  • Double positive isolation
  • Vent port is 1/4" FNPT
