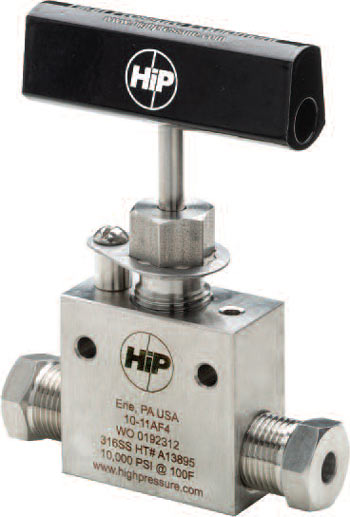

Taper Seal Needle Valves (ID=45)

Compression type tubing connections for 1/16", 1/8", 1/4", and 3/8" O.D. tubing. Requires no special tooling for tubing preparation (simply cut off, deburr, and insert tubing into connection). Connection details are shown on page 17.

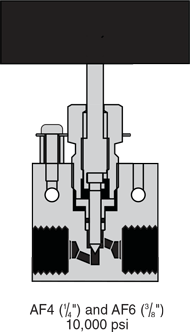

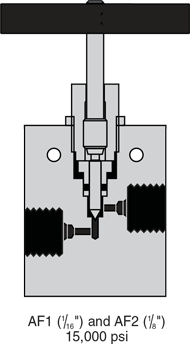

     Non-rotating tip stems are standard on AF4 and AF6 for on-off service and insure long life on valve seats. Regulating tip stems are available at no additional cost, add - REG to the catalog number.
     Glands and sleeves are supplied with each valve unless otherwise requested (glands and sleeves shown on pages 12 and 17).
     Materials include high tensile type 316 stainless steel for the valve body and hardened 17-4PH stainless steel lower section stem.
     Packing is Teflon (450°F) standard, with optional Viton (350°F), BUNA-N (200°F) or Grafoil (650°F) available at no additional cost.
     Air operators for remote control operation are available for all valves. (Refer to Air Operator section of catalog for additional data).

  • Non-rotating slotted stem design (standard for AF4 and AF6)
  • Packing below stem threads
  • Type 316 ss high tensile bodies
  • Positive gland lock device
  • No stem adjustment needed
  • Black T-handles or choice of 4 colors
  • Tube sizes 1/16" through 3/8"

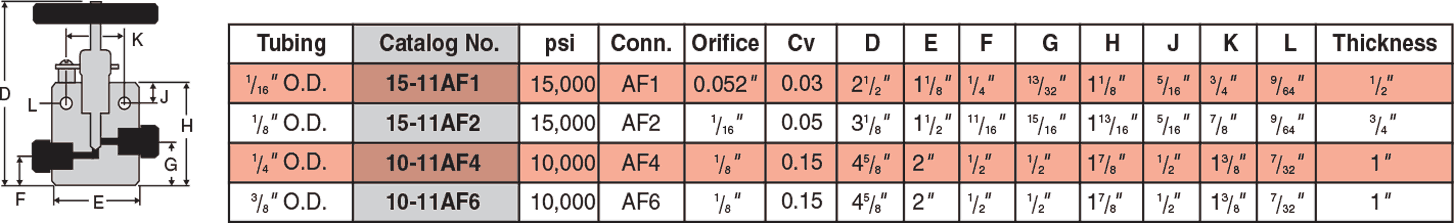

Two Way Straight Valves

ID: 1: Two Way Straight Valves:1:1:1

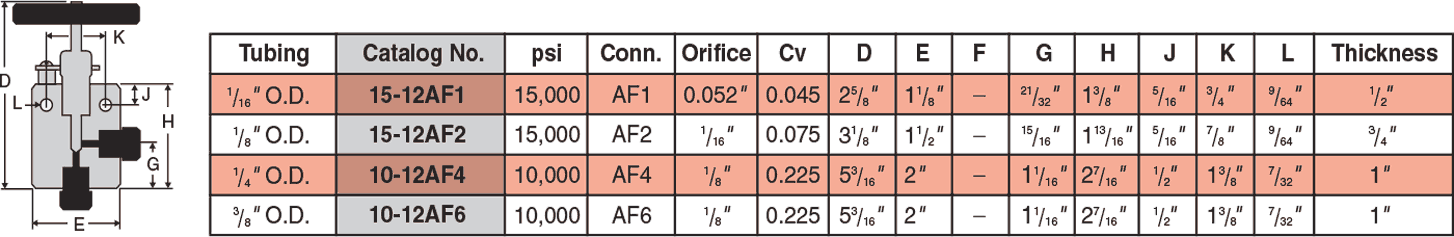

Two Way Angle Valves

ID: 2: Two Way Angle Valves:1:2:1

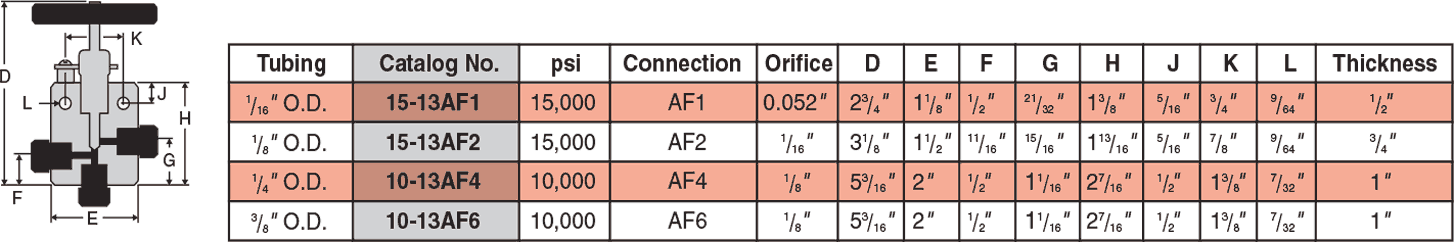

Three Way Valves/Two Pressure Connections

ID: 3: Three Way Valves/Two Pressure Connections:1:3:1

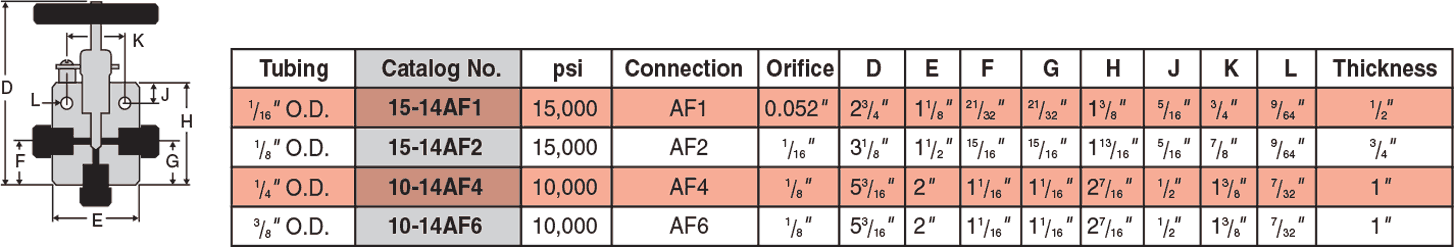

Three Way/One Pressure Connection

ID: 4: Three Way/One Pressure Connection:1:4:1

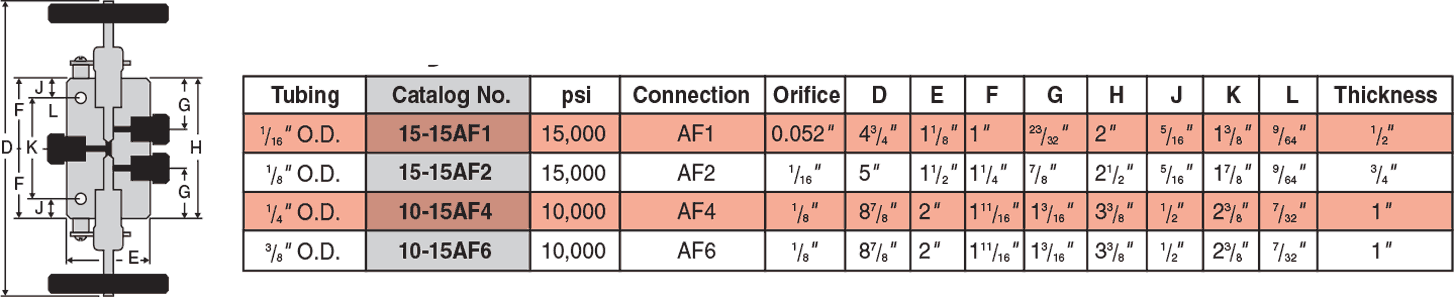

Three Way Valves/Two Stem Connection Valves

ID: 5: Three Way Valves/Two Stem Connection Valves:1:5:1
