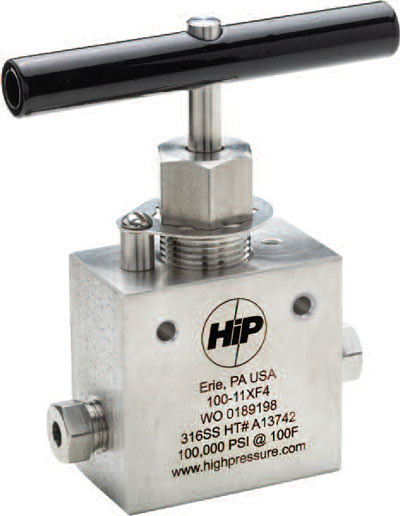

Ultra High Pressure Valves (ID=80)

High Pressure (coned and threaded) type connections for 1/4", 3/8" and 9/16" O.D. tubing.

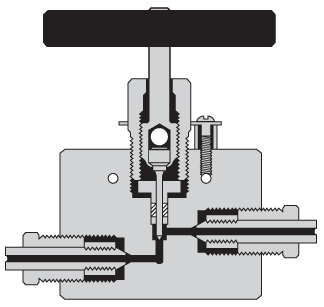

     Non-rotating tip stems insure long life on valve seats. Heavy duty "rolled style" stem design is shown below.
     Glands and collars for tubing are supplied with each valve unless otherwise requested (glands and collars are shown on page 5.A).
     Materials include 316 and 17-4 stainless steel for valve bodies with tool steel lower section stems. Valve packing is teflon.
     Corresponding fittings (elbows, tees, crosses, etc.) are shown on page 5.4.

Replaceable Seat Valves are available for 1/4" O.D. tubing. These valves feature the same body style and dimensions as the two way angle valves (shown below). To order add "R" to the corresponding two way valve catalog number (eg. 100-12XF4R).

Valve Features

  • Non-rotating stem tips
  • Packing below stem threads
  • Type 316 ss high tensile bodies
  • Positive gland lock device
  • No stem adjustment needed
  • Black T-handles
  • Tube sizes 1/4" through 9/16"

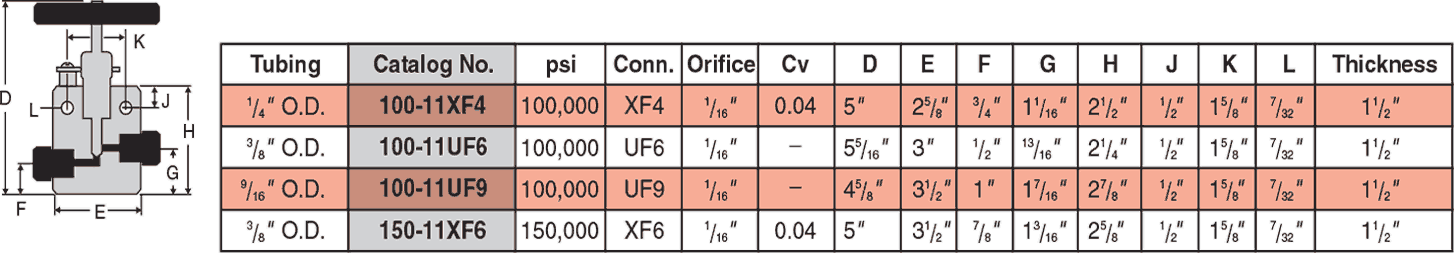

Two Way Straight Valves

ID: 70: Two Way Straight Valves:42:1:4

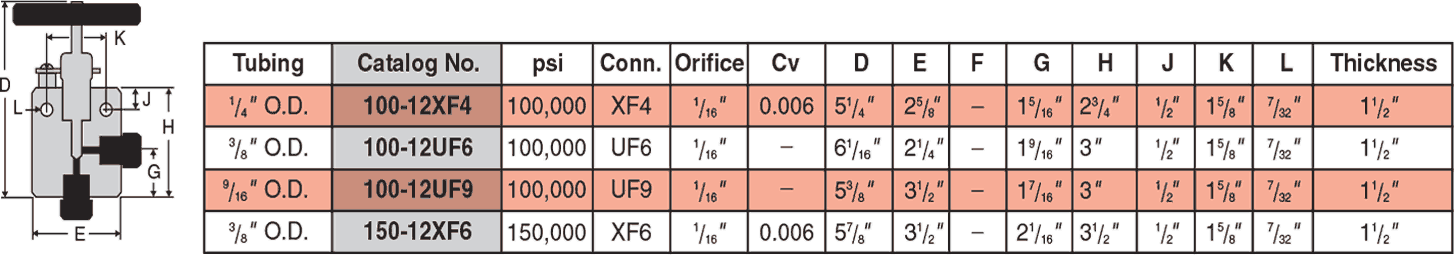

Two Way Angle Valves

ID: 381: Two Way Angle Valves:42:2:4

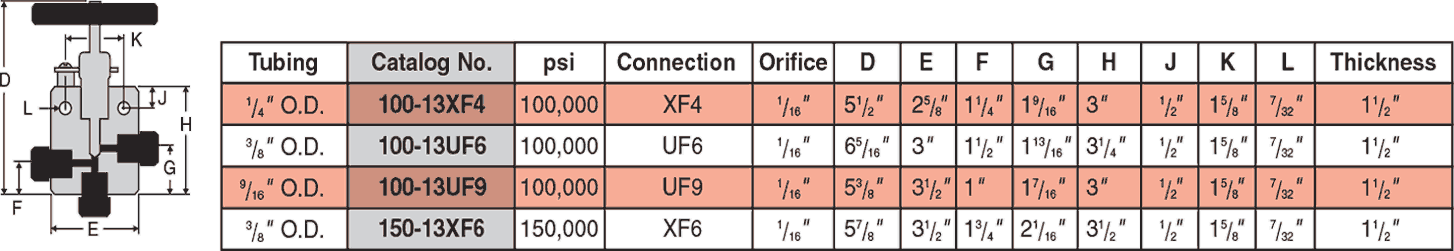

Three Way Valves / Two Inlets

ID: 382: Three Way Valves / Two Inlets:42:3:4

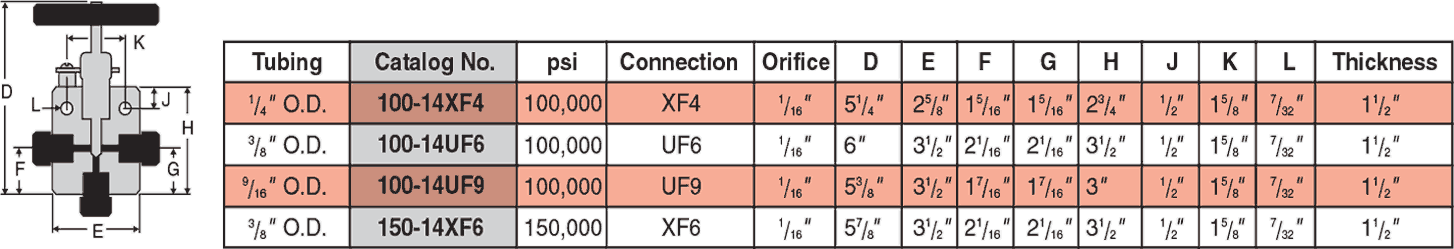

Three Way Valves / One Inlets

ID: 383: Three Way Valves / One Inlets:42:4:4
